7.3.1 Device Enable/Disable (EN, VH Pin)
The device shuts down when EN is less than the EN threshold (VEN) and VH is less than the SYNC threshold (VSYNC). The device is enabled when EN is greater than VEN or VH is greater than VSYNC. The VH pin provides a 40-μs internal delay before the device shuts down.
The device provides a 33-kΩ internal EN pulldown resistor to prevent a false turnon when the pin is floating. The EN pulldown resistor is connected to ground during the device configuration time or when the device shuts down. If the device configuration is finished and VH is greater than VSYNC, EN hysteresis is accomplished by disconnecting/connecting the resistor when EN is greater/less than VEN.

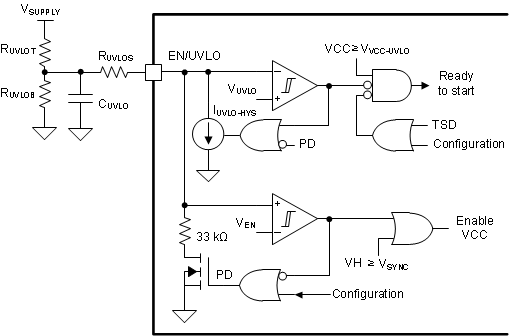

Figure 7-1 EN/UVLO Circuit
