8.3 System Example
Use the LM51231 in class-H audio applications. The TRK pin can be used to dynamically control the supply of the audio amplifier.
Figure 8-7 LM51231 in class-H audio application

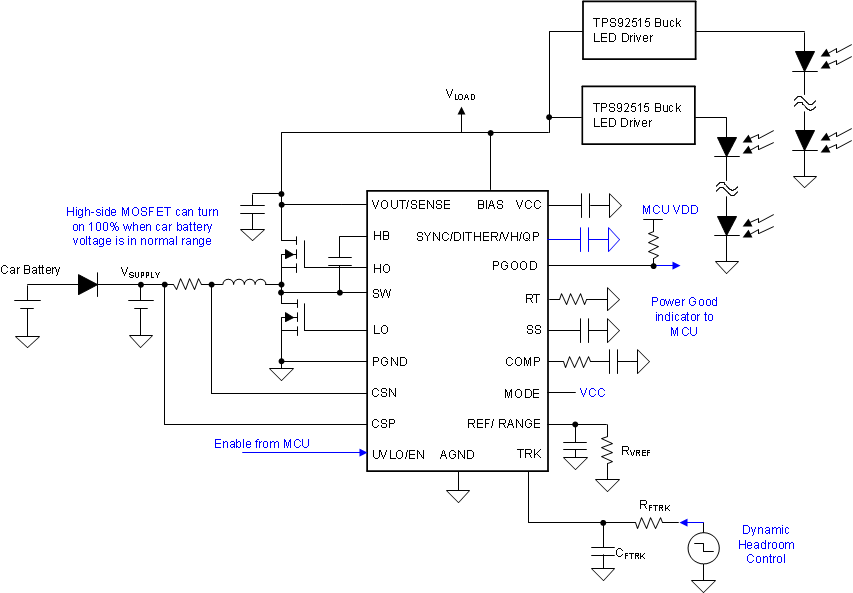

Use LM51231 in LED application. The TRK pin can be used to control head-room.

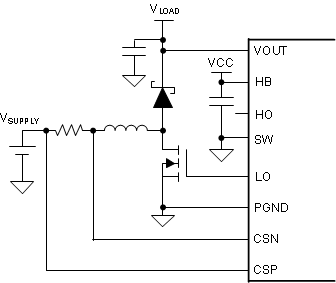

Figure 8-8 LM51231 in LED applicationTo configure non-synchronous boost controller, connect SW to PGND, and connect HB to VCC.
Figure 8-9 Non-synchronous boost configuration
