5.7 Typical Performance Characteristics
Figure 5-1 Typical Application Circuit

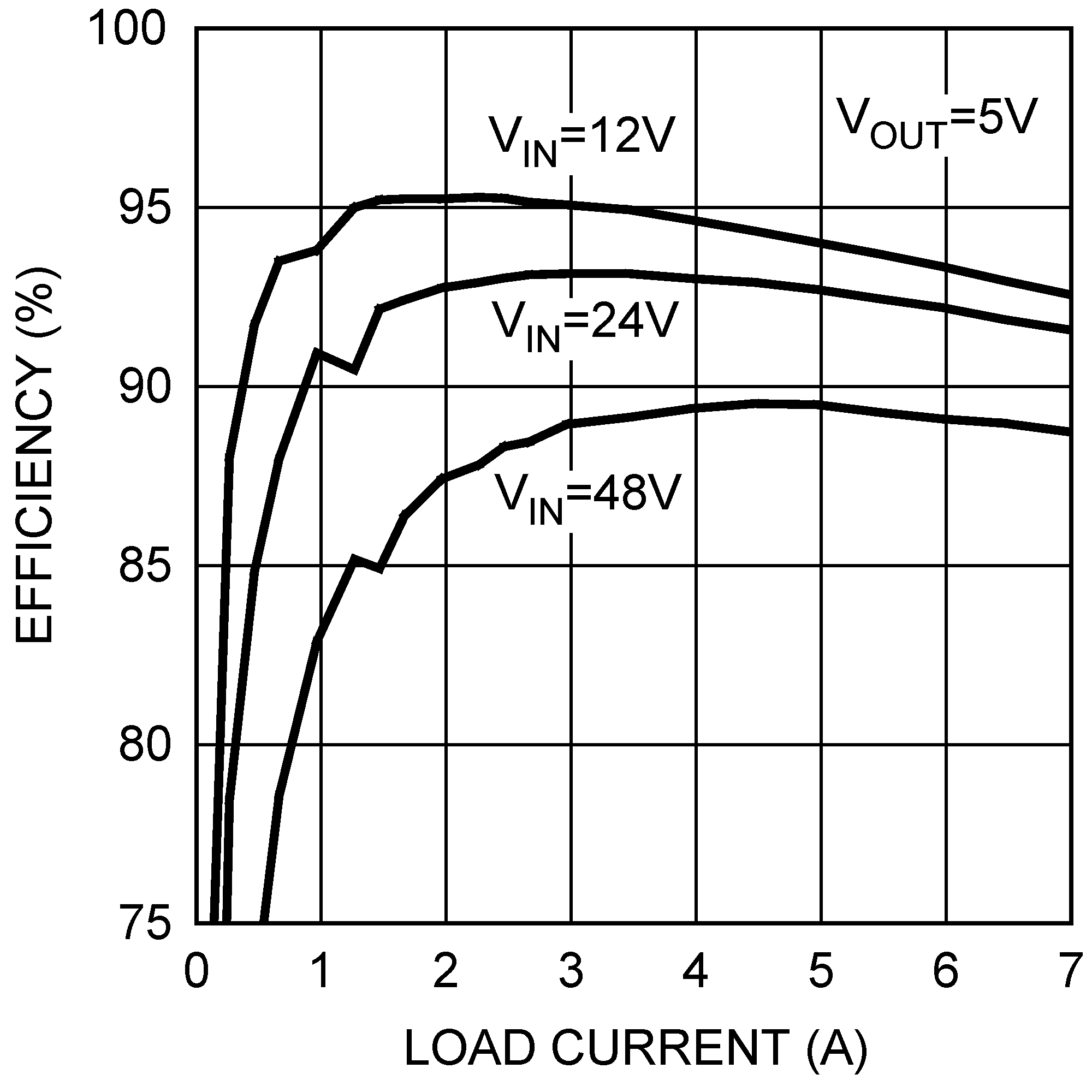

Efficiency

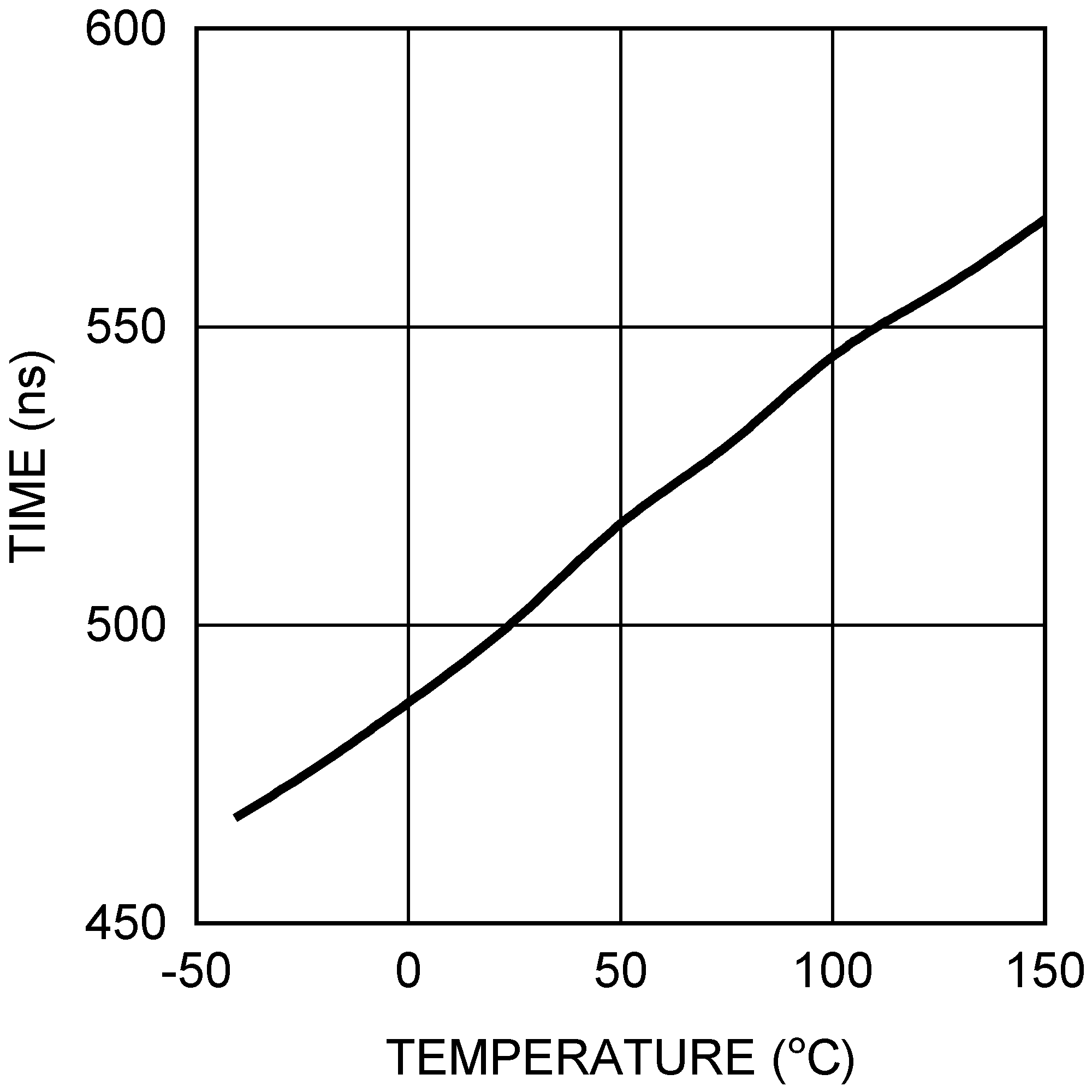

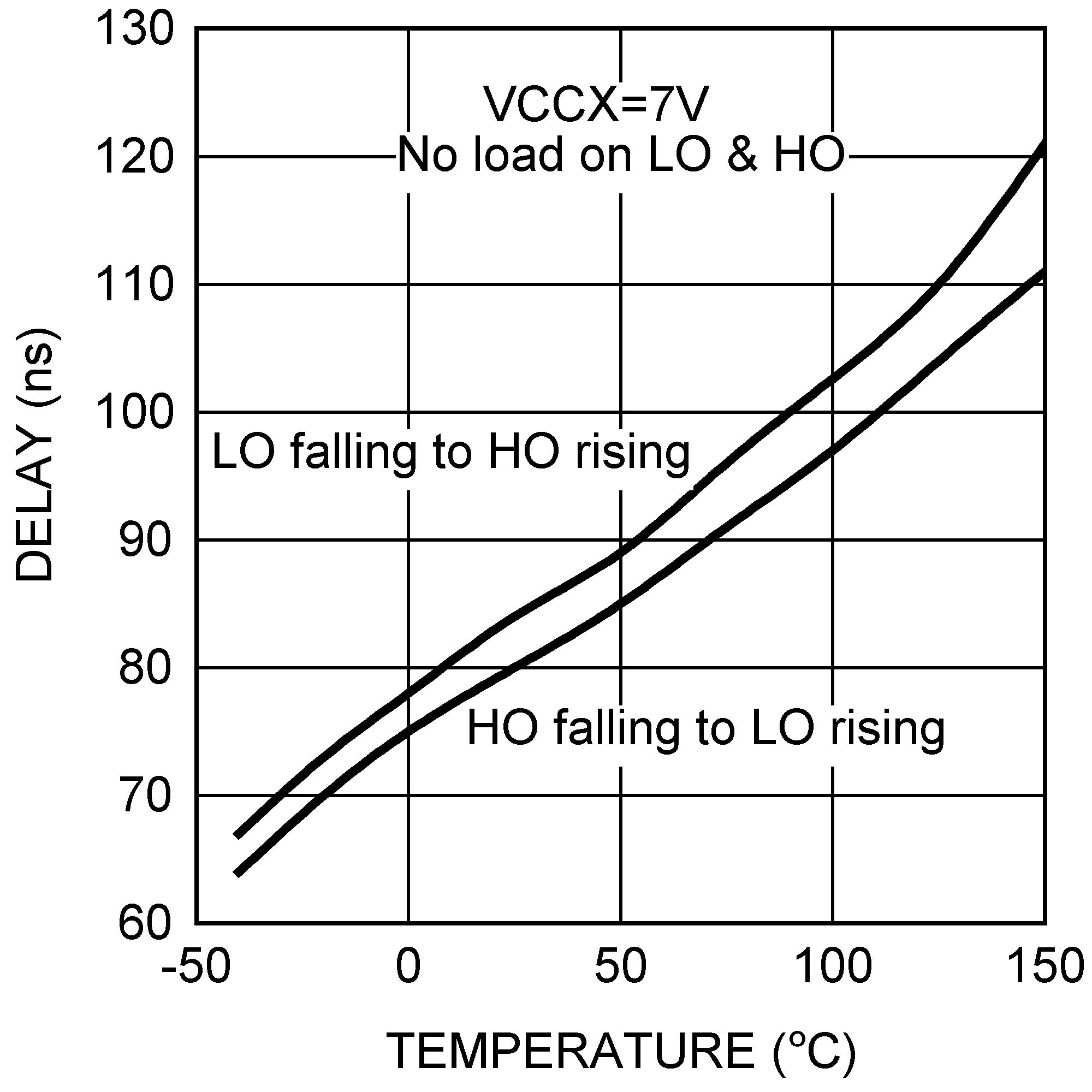

Figure 5-3 Driver Dead-time vs
Temperature

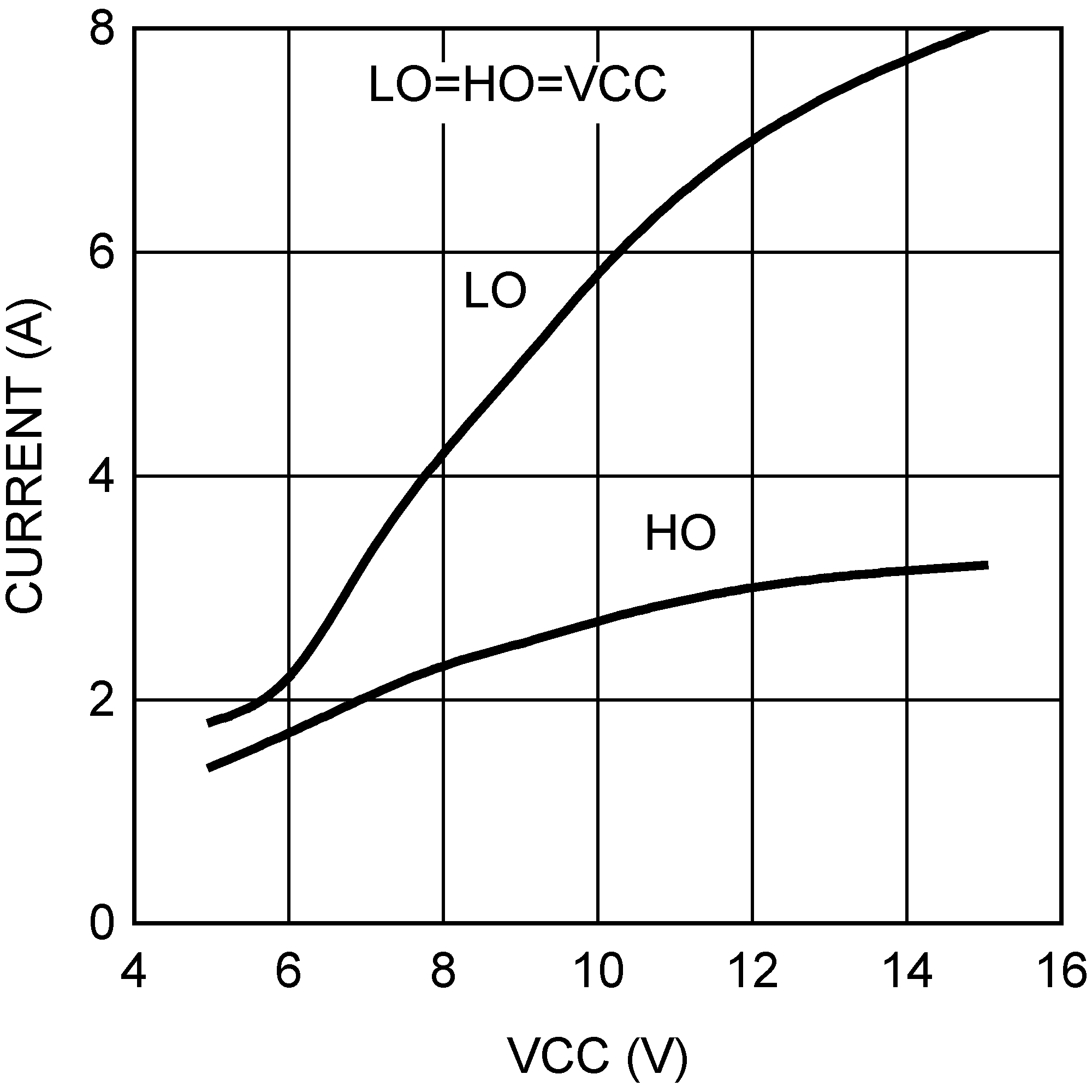

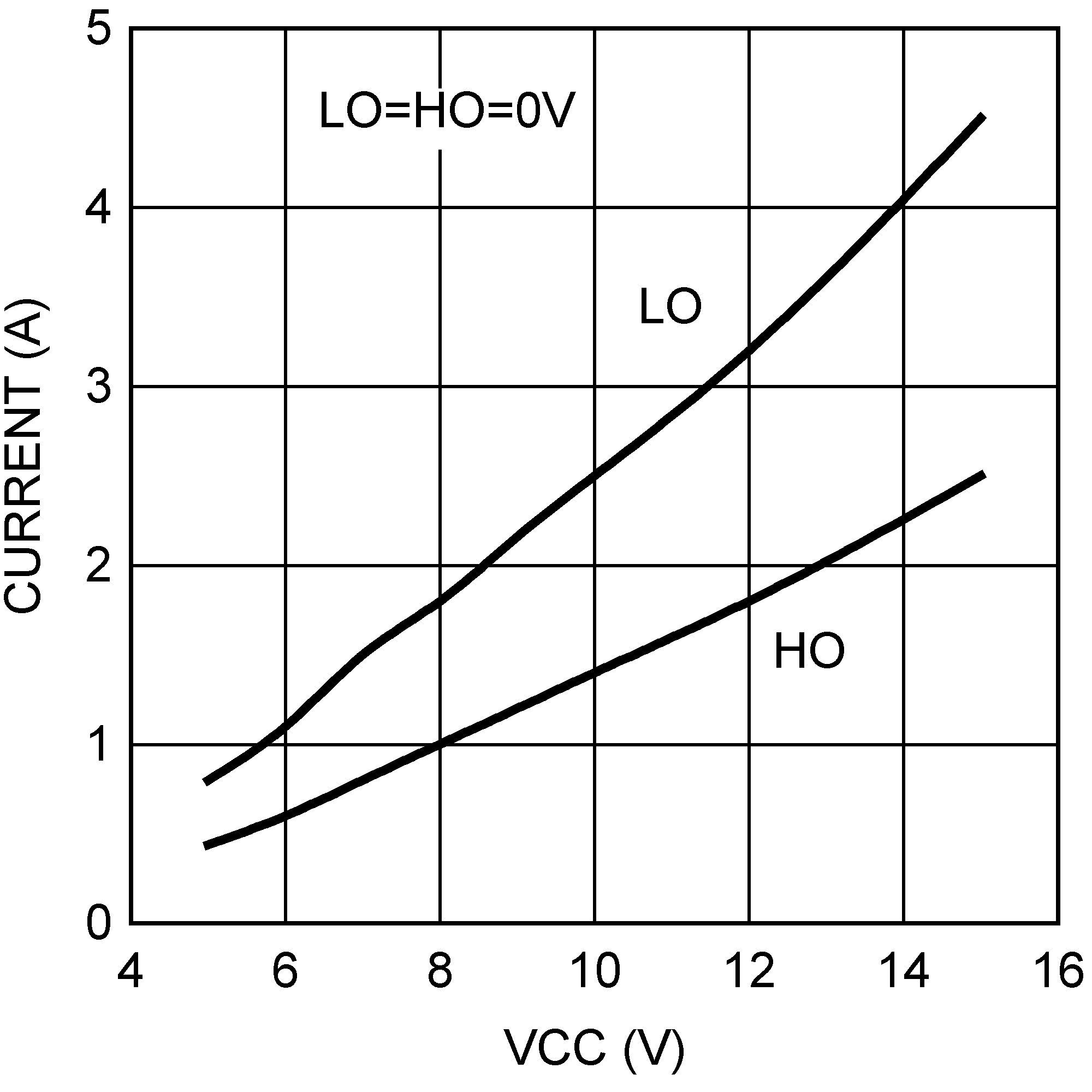

Figure 5-5 Driver Sink Current vs VCC

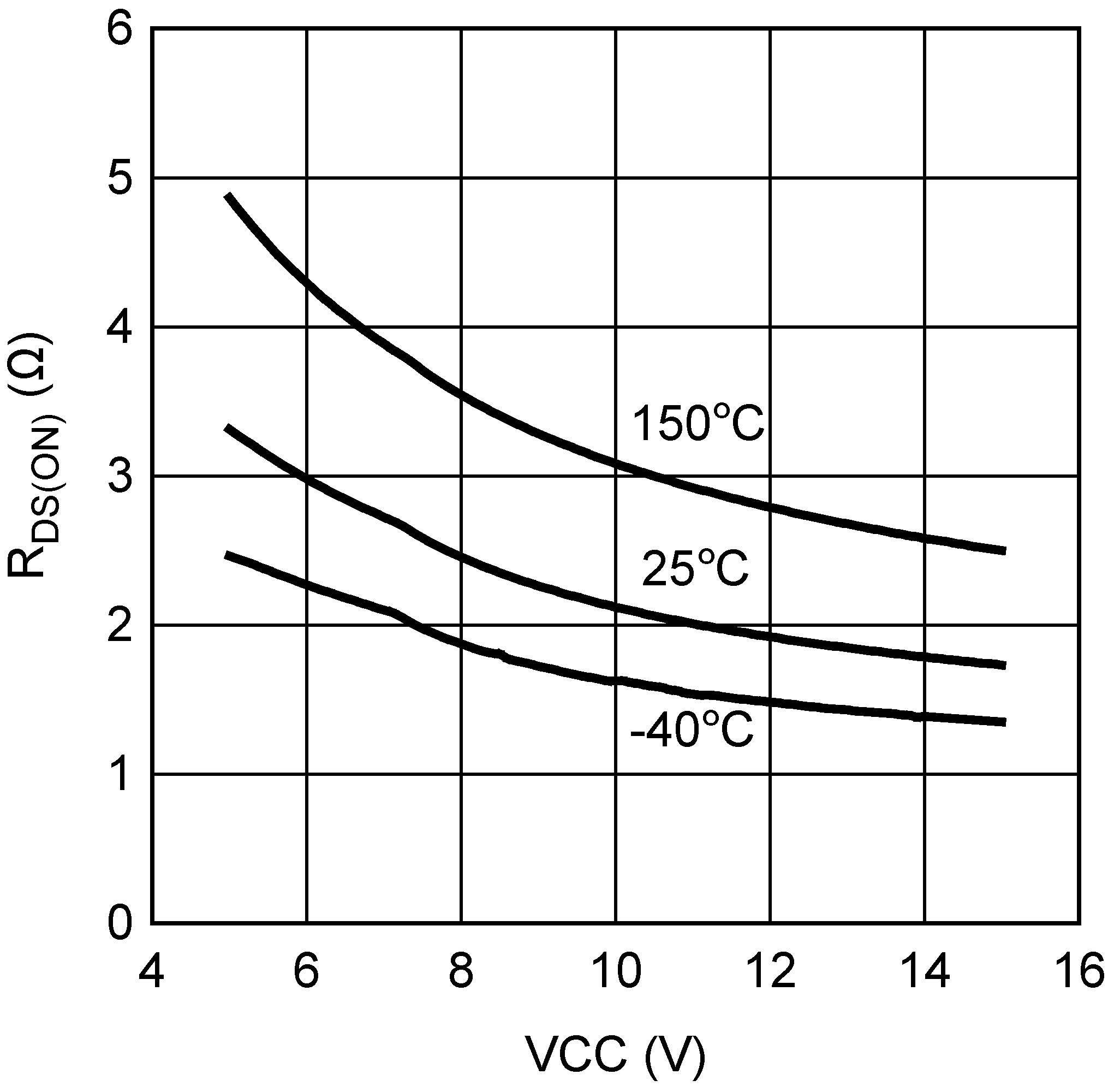

Figure 5-7 LO High RDS(ON) vs
VCC

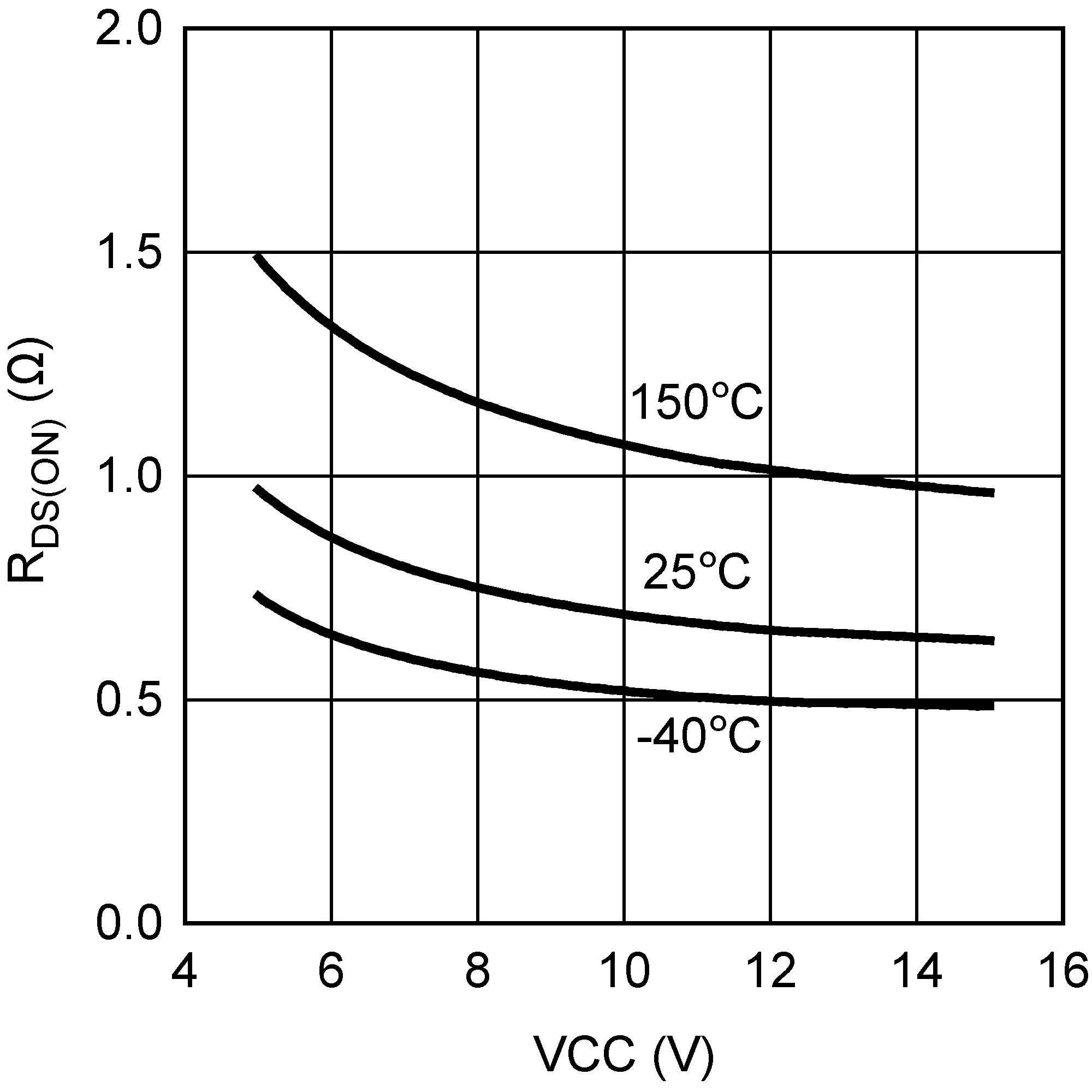

Figure 5-9 LO Low RDS(ON) vs
VCC
Figure 5-11 Forced HO Off-time vs Temperature
VCCX = 5 V

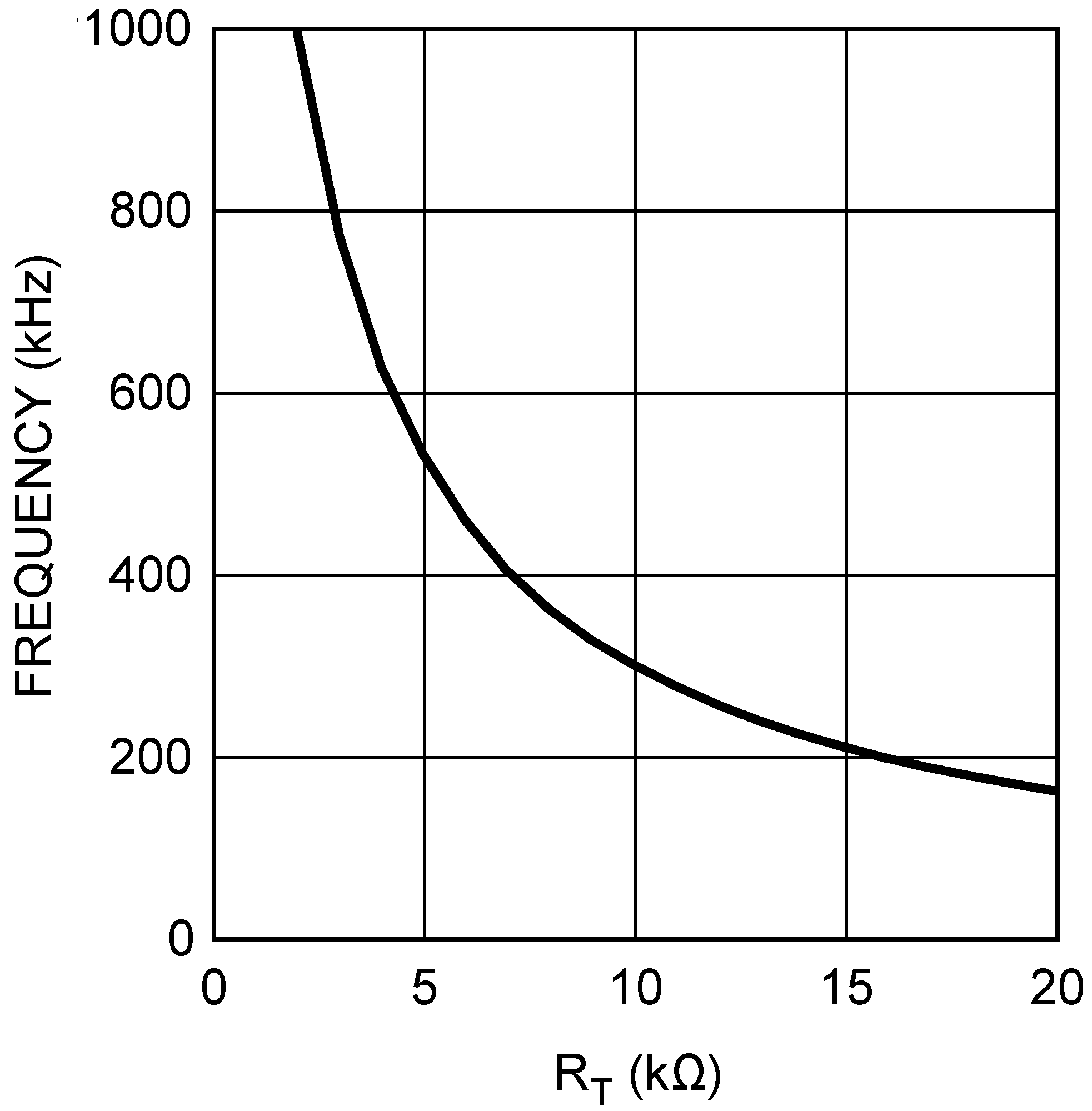

Figure 5-13 Frequency vs RT

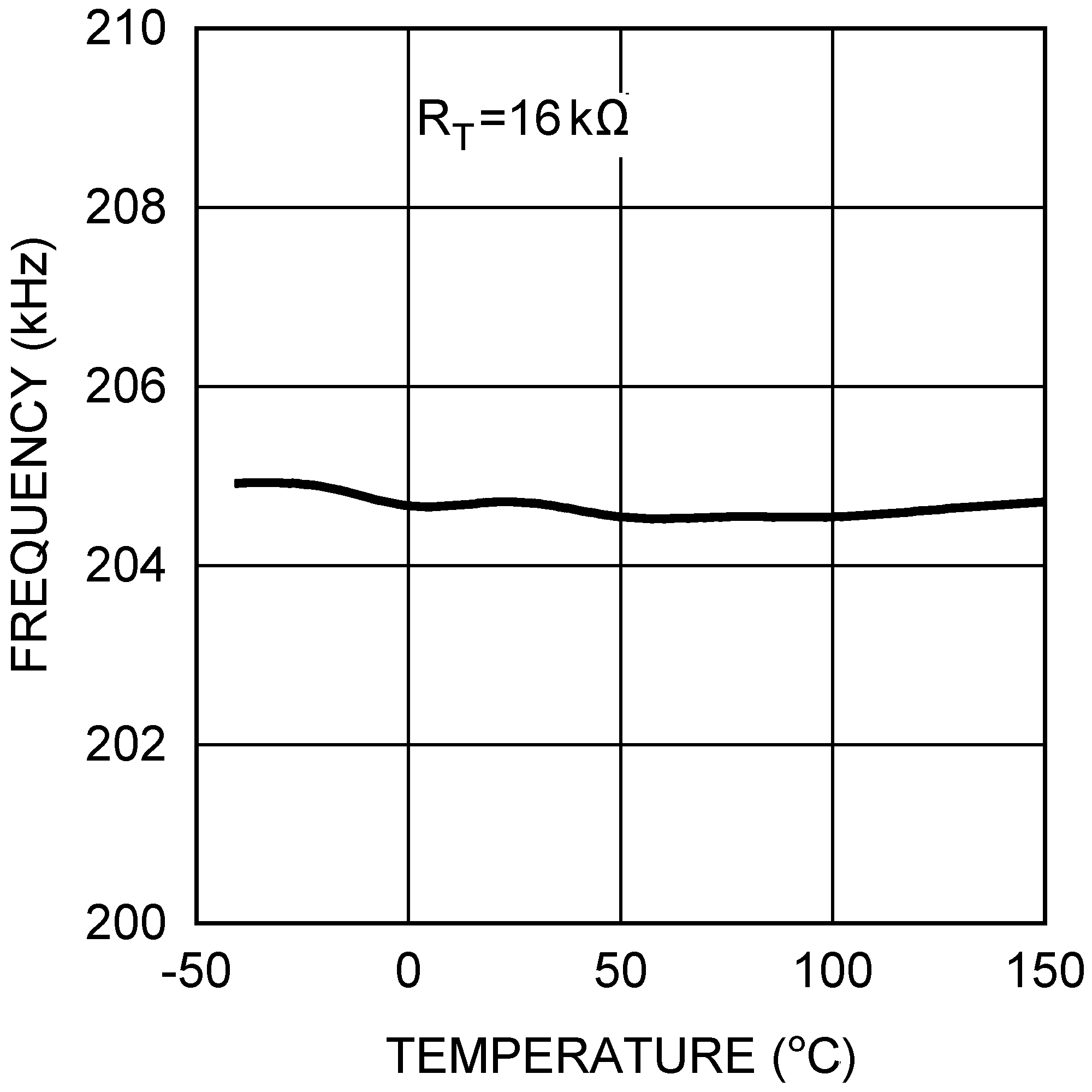

Figure 5-15 Frequency vs Temperature

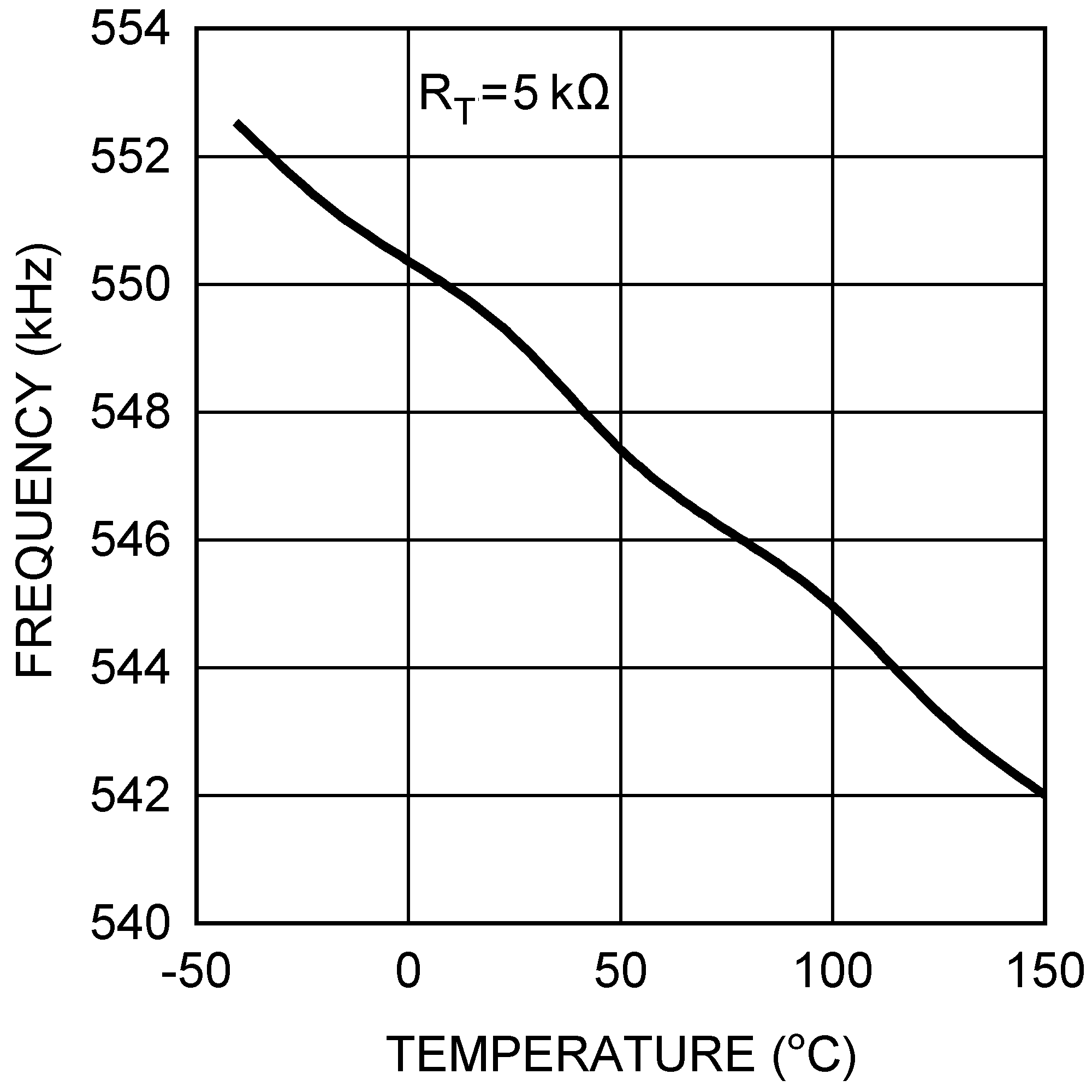

Figure 5-17 Frequency vs Temperature

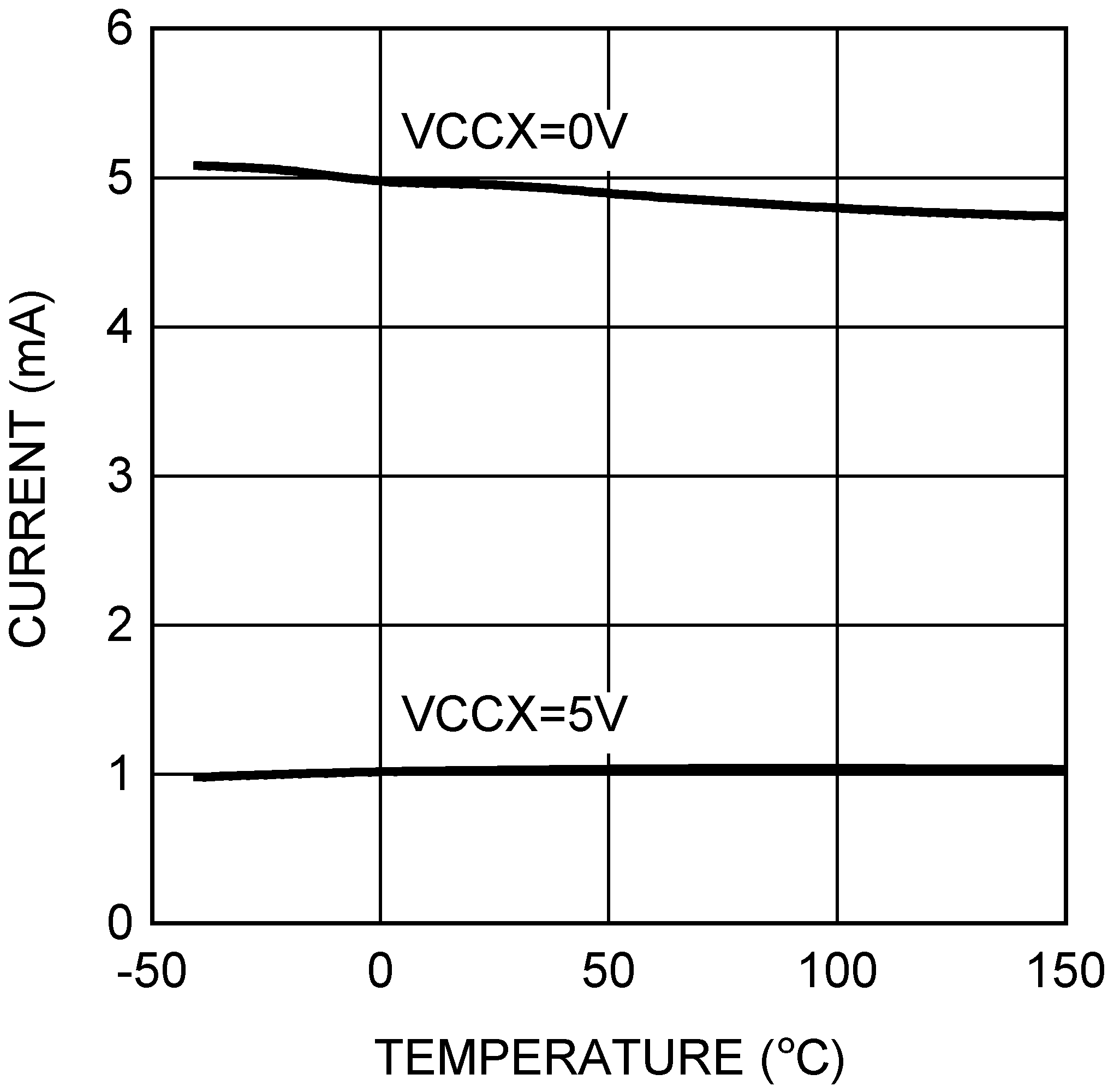

Figure 5-19 VIN Operating Current vs
Temperature

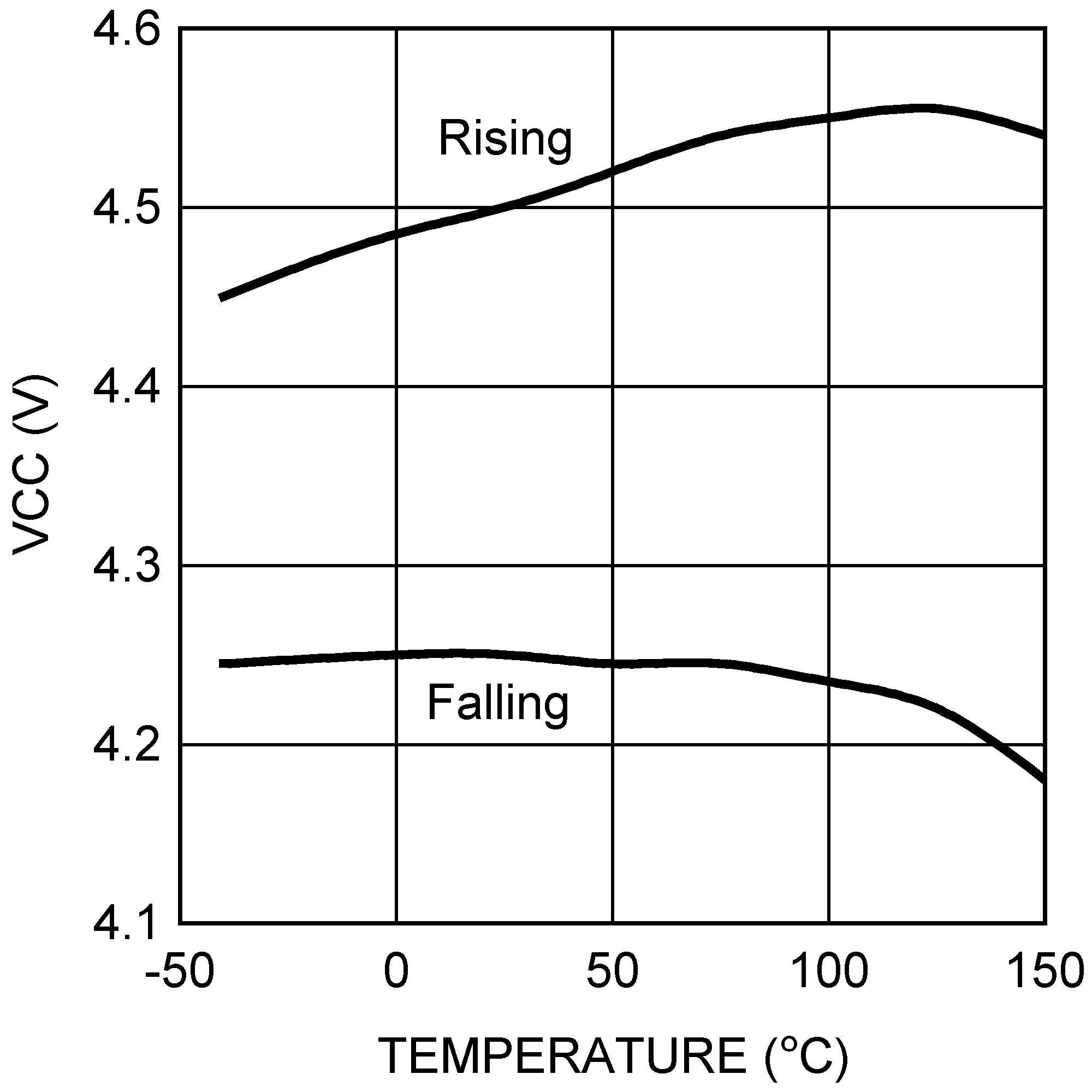

Figure 5-21 VCC UVLO vs Temperature

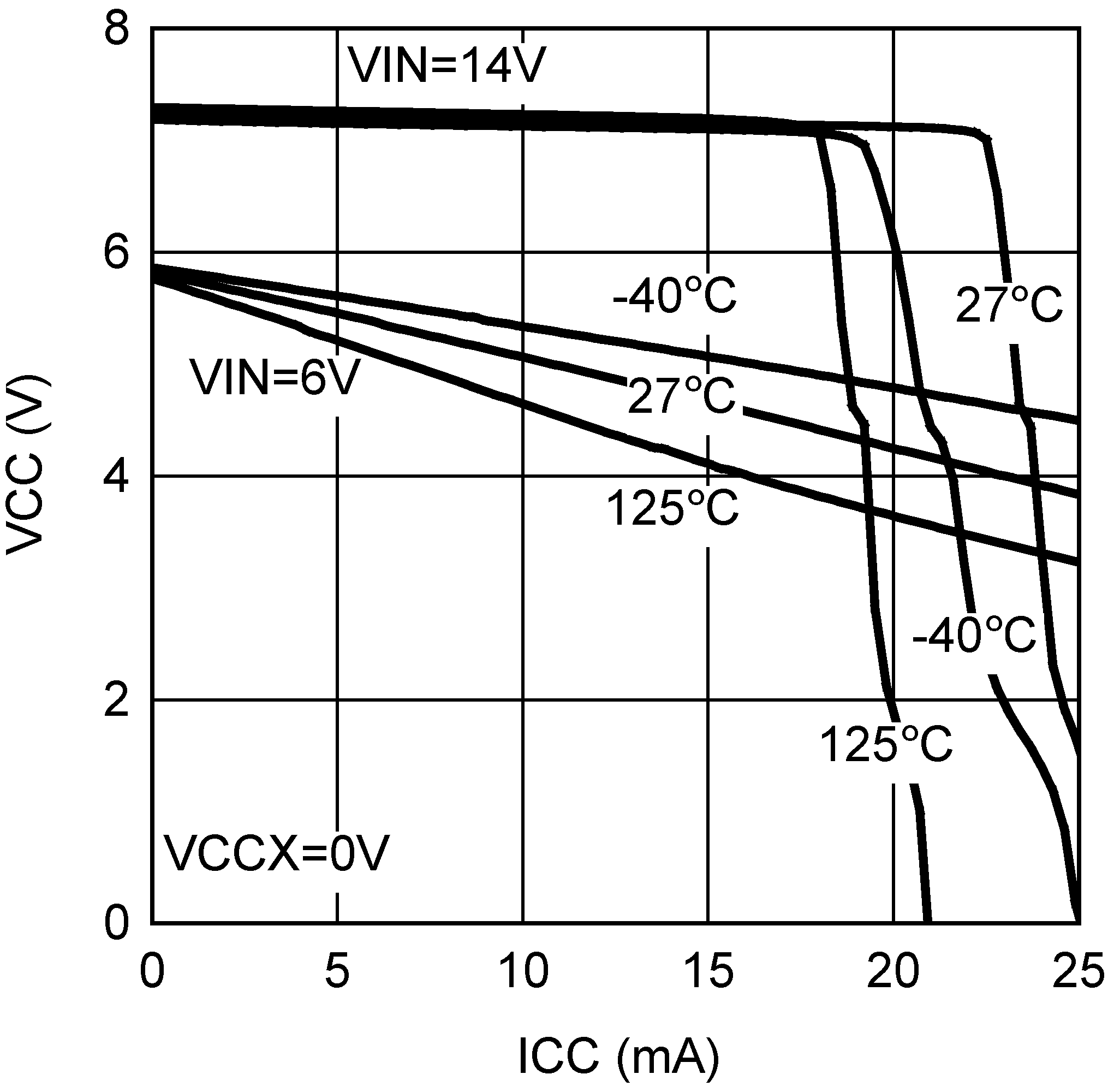

Figure 5-23 VCC vs ICC
Figure 5-2 Driver Source Current vs
VCC

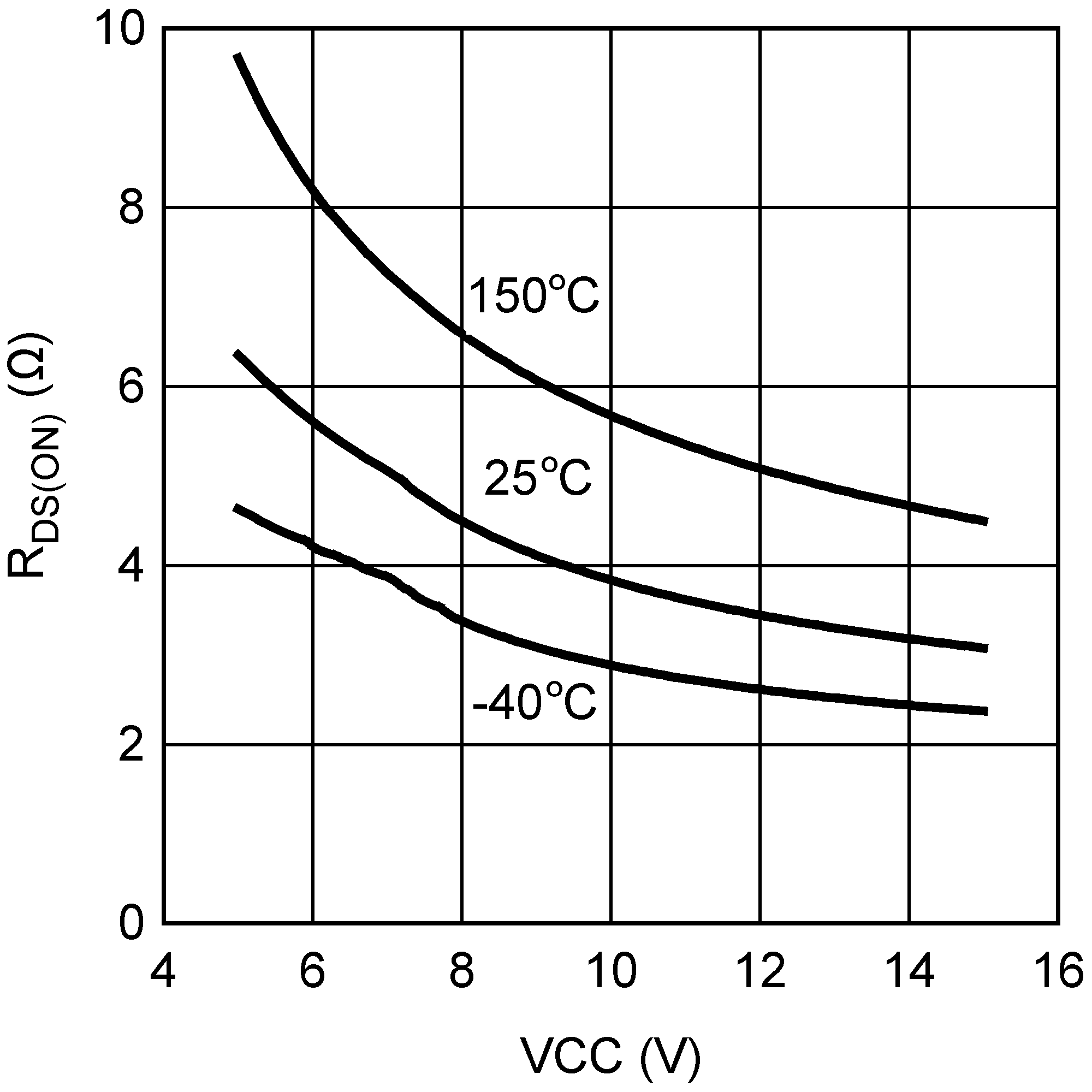

Figure 5-4 HO High RDS(ON) vs
VCC

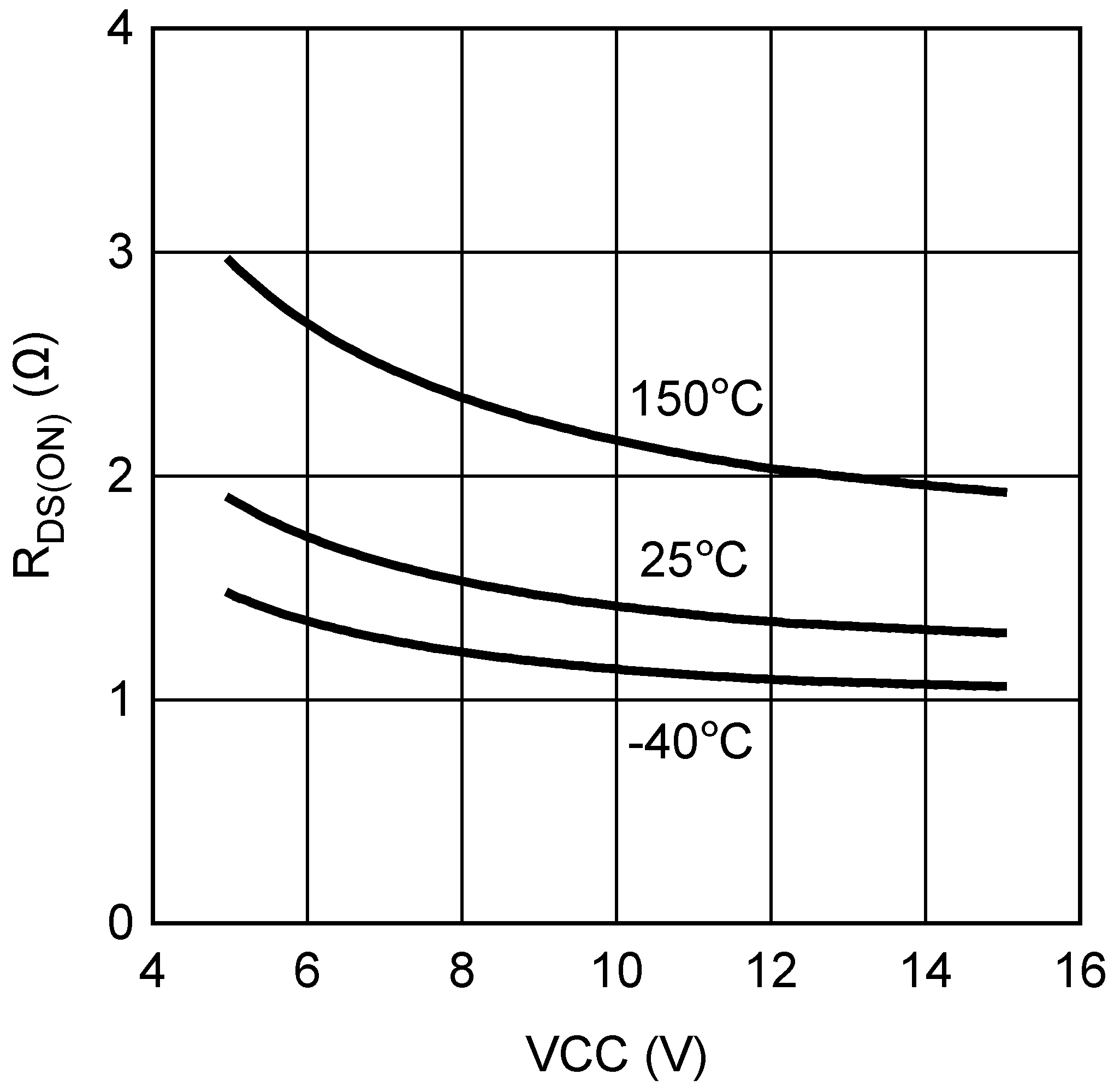

Figure 5-6 HO Low RDS(ON) vs
VCC

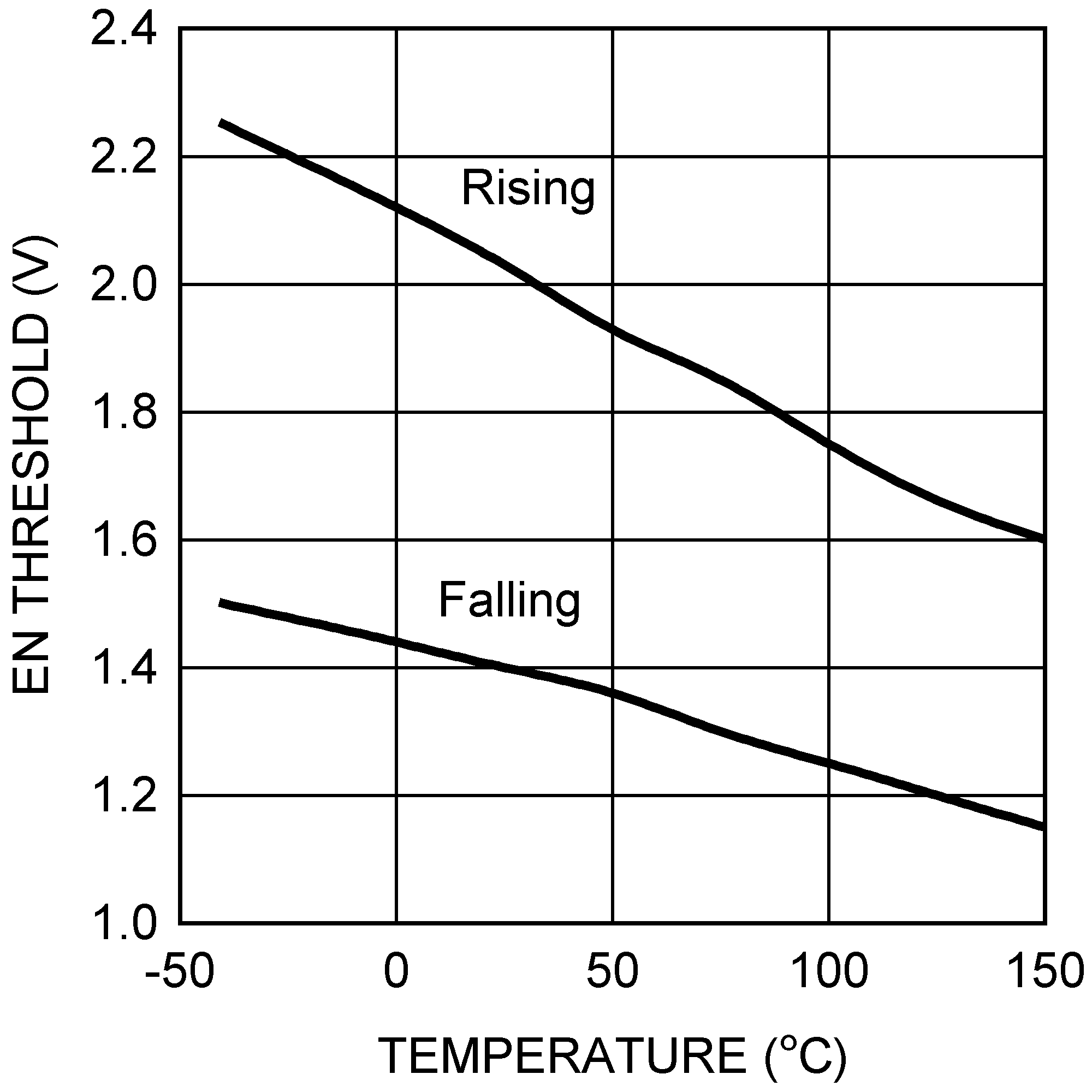

Figure 5-8 EN Input Threshold vs
Temperature

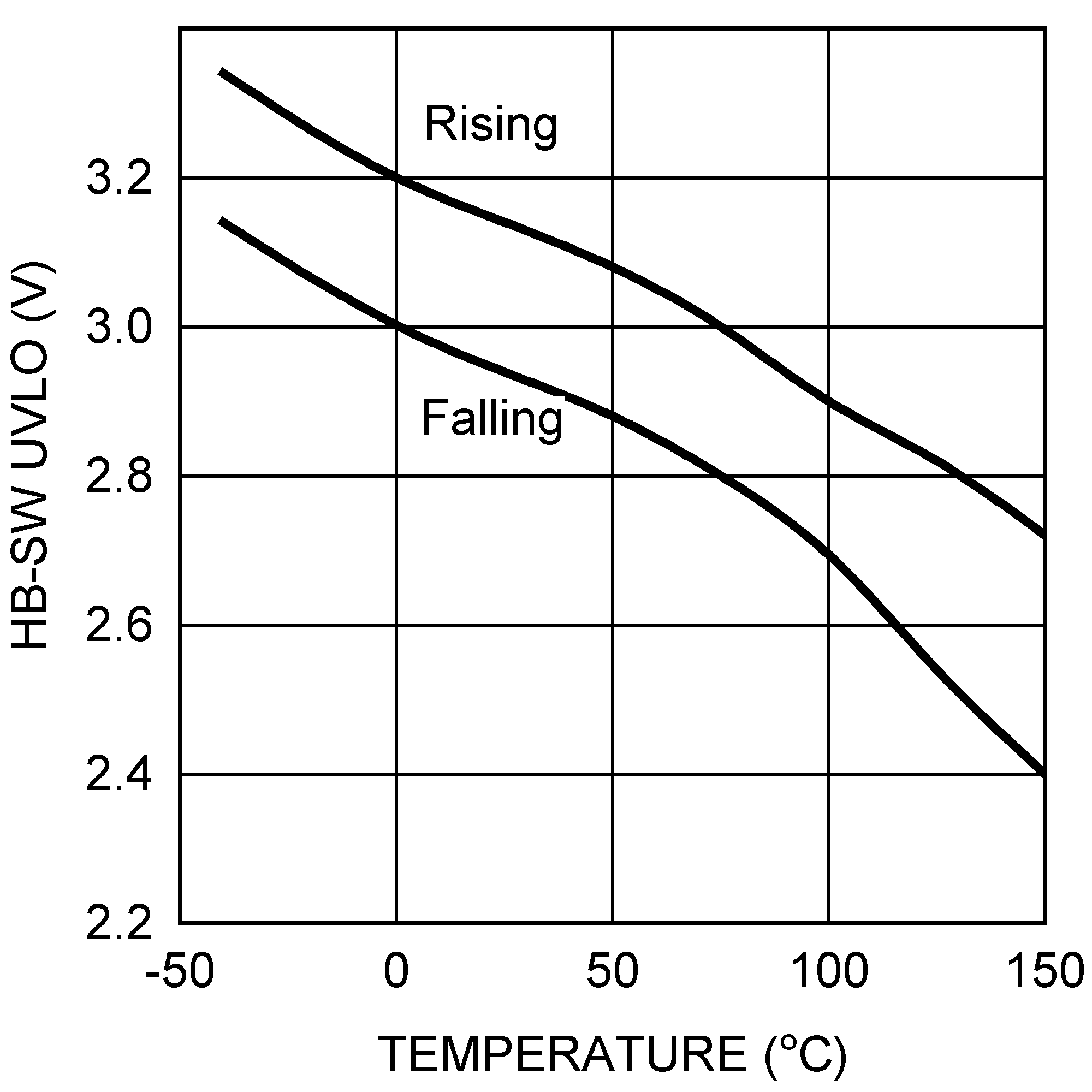

Figure 5-10 HB to SW UVLO vs
Temperature

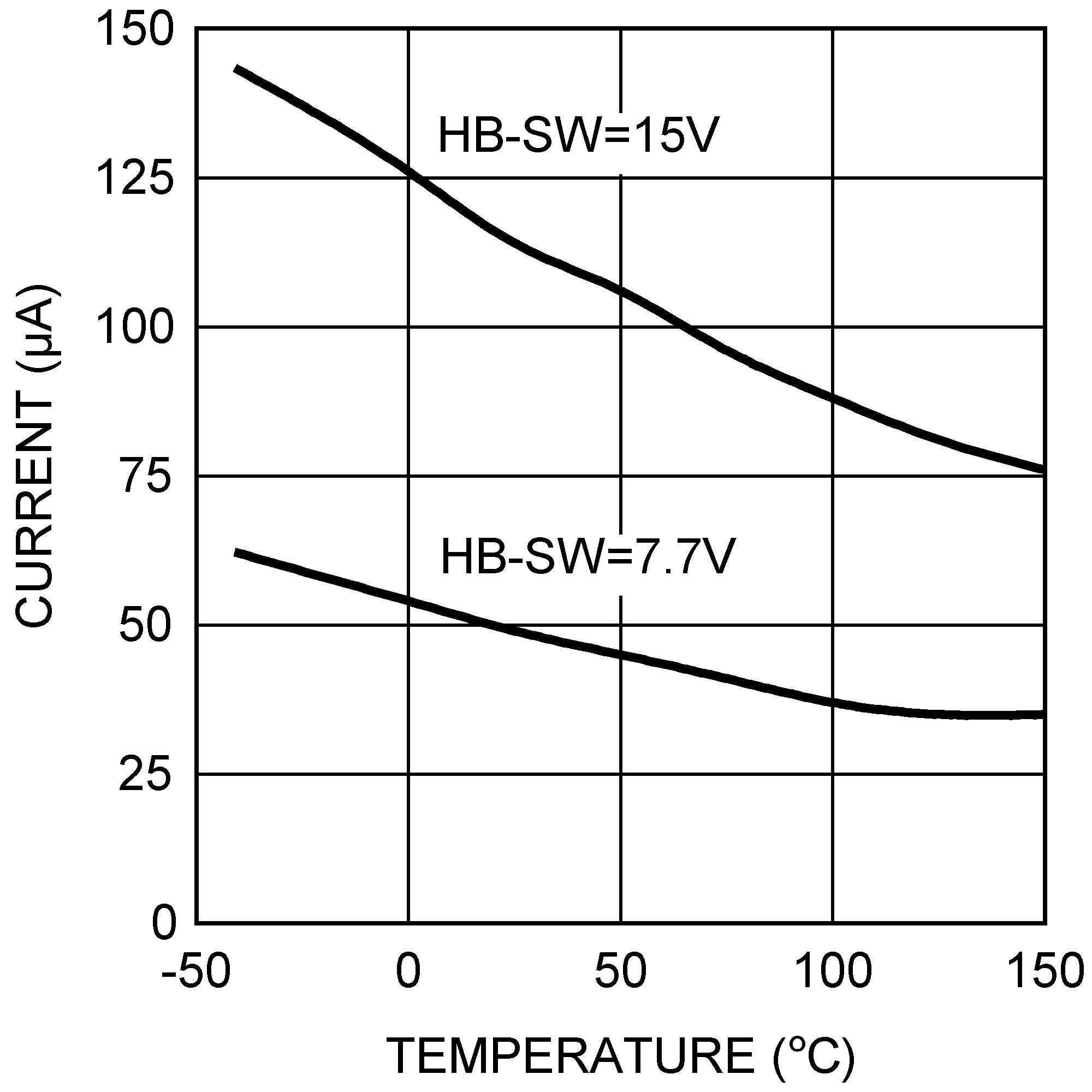

Figure 5-12 HB DC Bias Current vs
Temperature

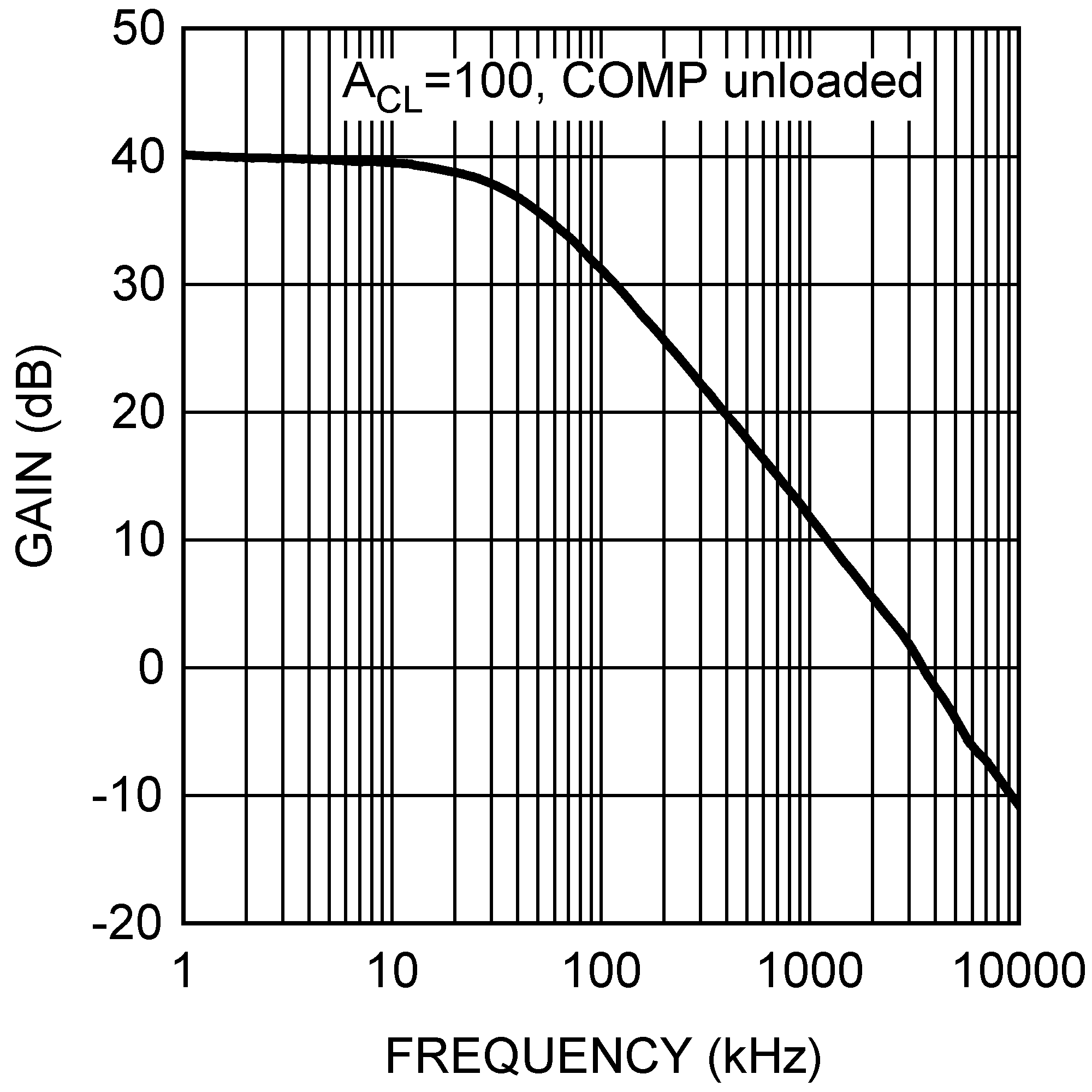

Figure 5-14 Error Amp Gain vs Frequency

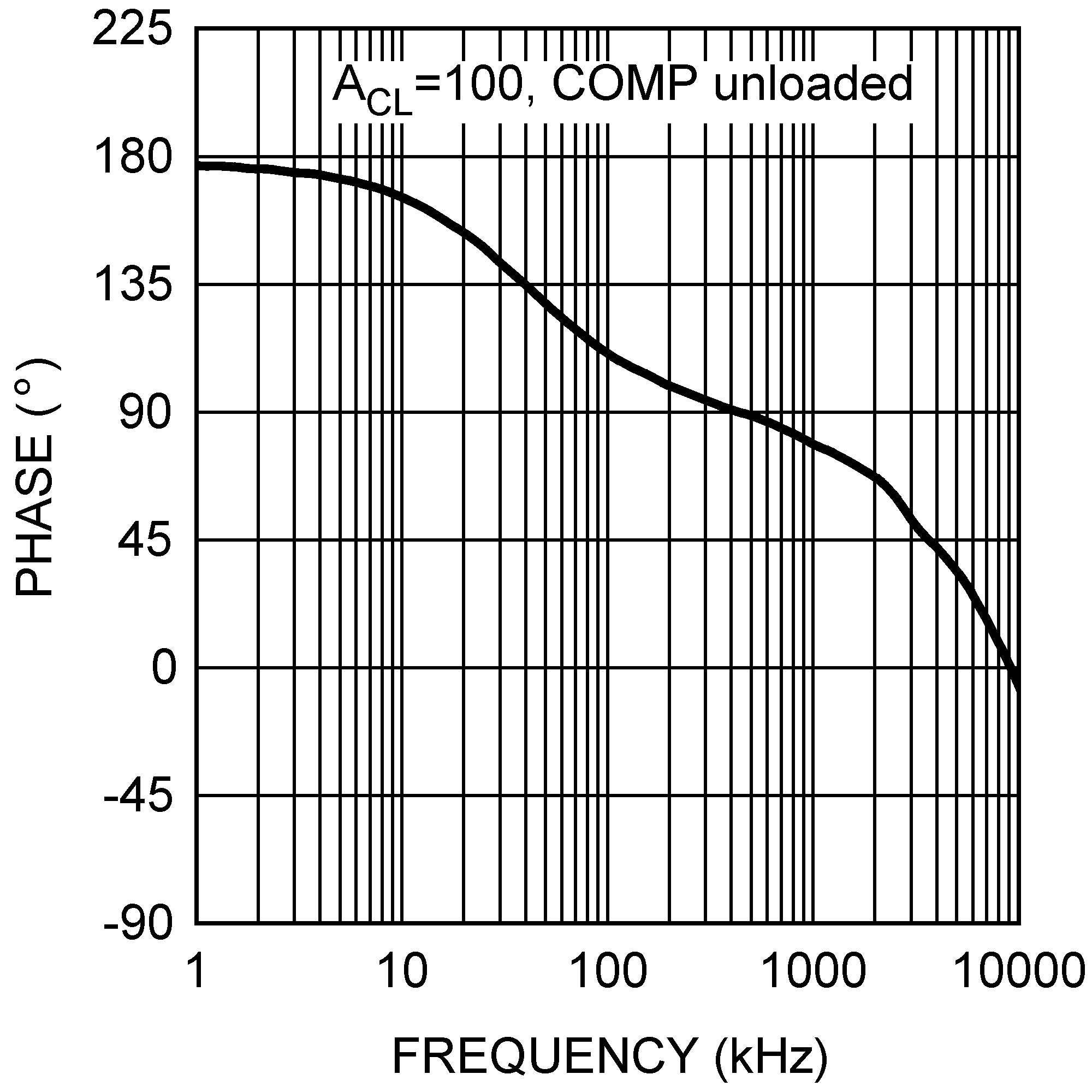

Figure 5-16 Error Amp Phase vs
Frequency

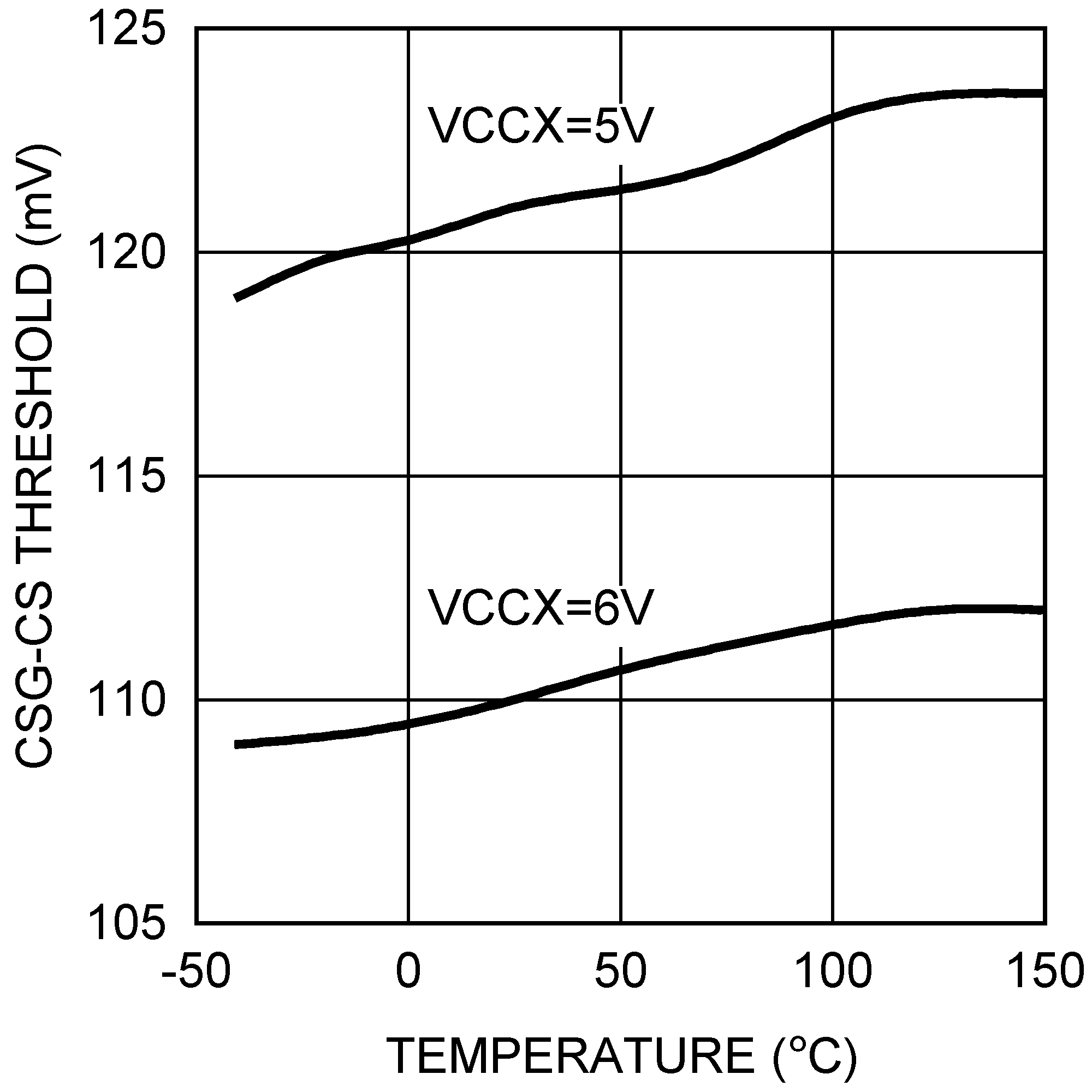

Figure 5-18 Current Limit Threshold vs
Temperature

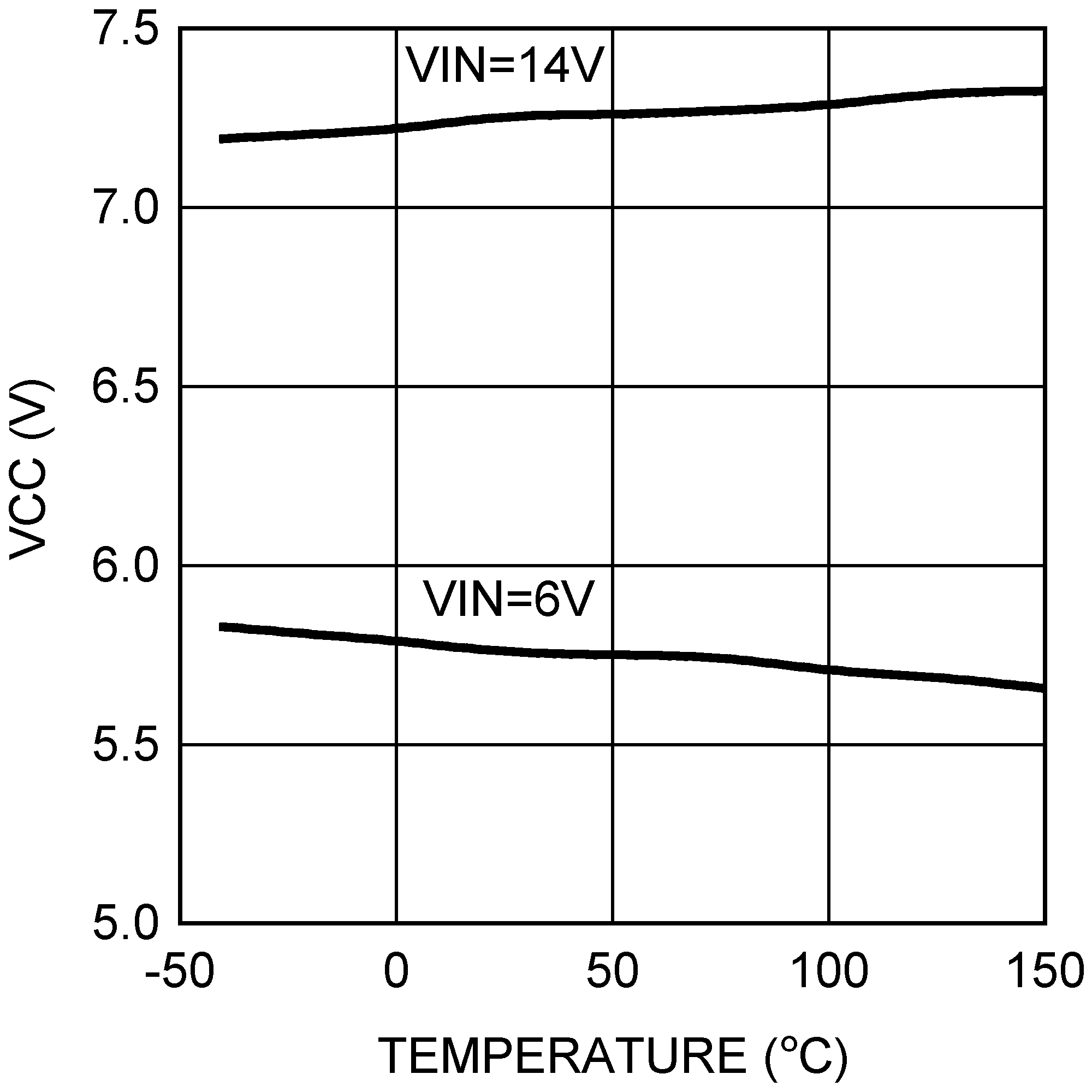

Figure 5-20 VCC vs Temperature

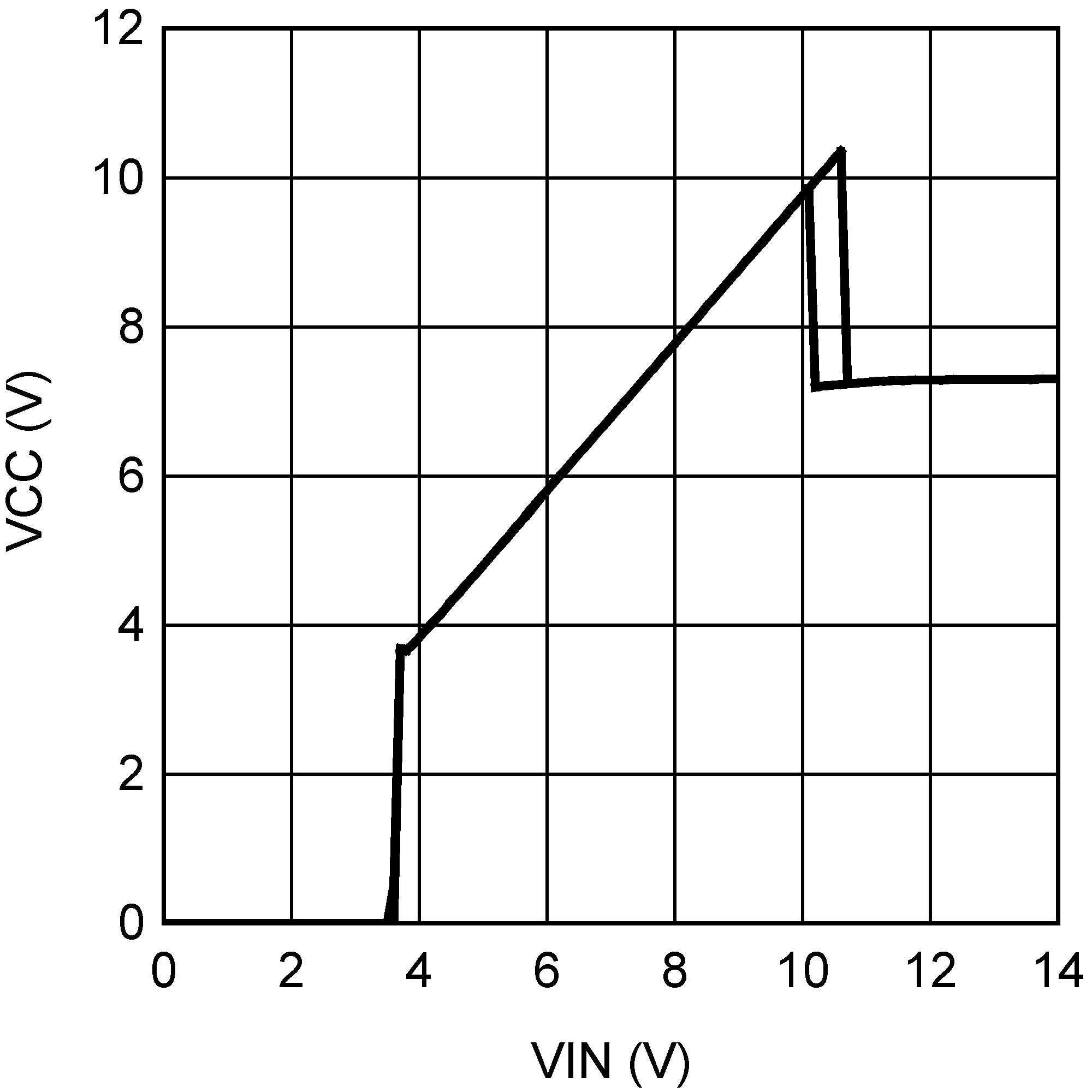

Figure 5-22 VCC vs VIN
Figure 5-24 VCCX Switch RDS(ON) vs
VCCX
