8.2.3 Application Curves

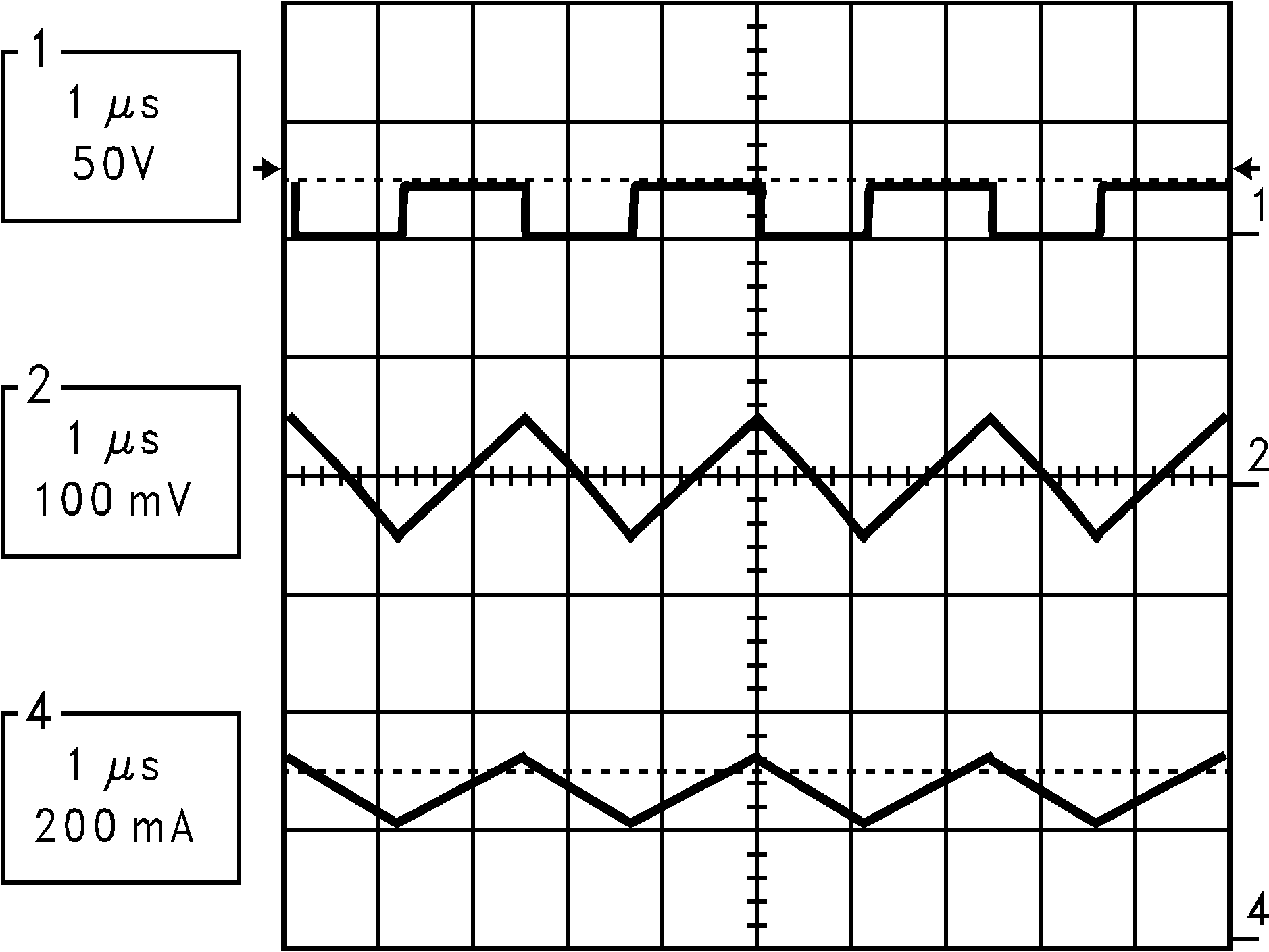

| VOUT = 10 V | VIN = 20 V | IOUT = 250 mA |
| CH1: Switch Node | CH2: VOUT (AC) | CH4: Inductor Current |

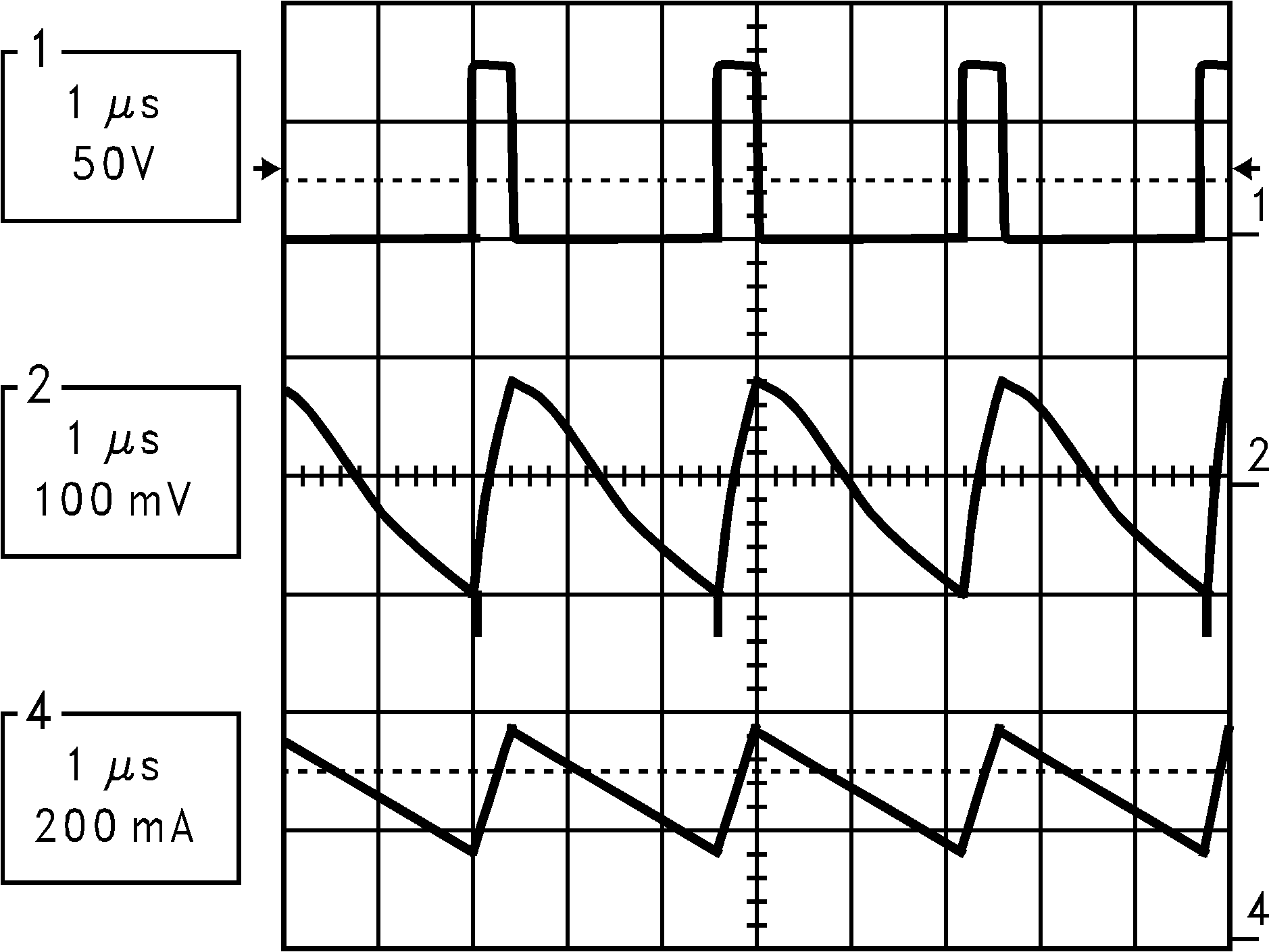

| VOUT = 10 V | VIN = 75 V | IOUT = 250 mA |
| CH1: Switch Node | CH2: VOUT (AC) | CH4: Inductor Current |
