8.2.3 Example Circuit 3

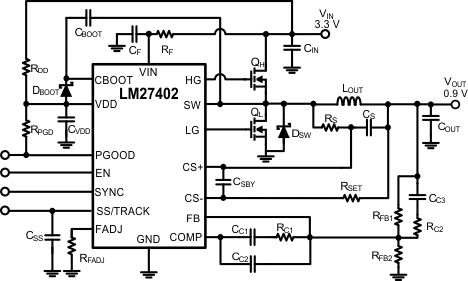

Figure 47. 3.3-V Input voltage, 0.9-V Output Voltage, 20-A Output Current, 500-kHz Switching Frequency
Table 3. Bill Of Materials
| DESIGNATOR | TYPE | PARAMETERS | PART NUMBER | QTY | MANUFACTURER |
|---|---|---|---|---|---|
| U1 | IC | Synchronous Buck Voltage-Mode PWM Controller | LM27402 | 1 | TI |
| CBOOT | Capacitor | 0.22 µF, Ceramic, X7R, 25 V, 10% | GRM188R71E224KA88D | 1 | Murata |
| CC1 | Capacitor | 820 pF, Ceramic, COG, 50 V, 5% | GRM1885C1H821JA01D | 1 | Murata |
| CC2 | Capacitor | 68 pF, Ceramic, COG, 50 V, 5% | GRM1885C1H680JA01D | 1 | Murata |
| CC3 | Capacitor | 390 pF, Ceramic, COG, 50 V, 5% | GRM1885C1H391JA01D | 1 | Murata |
| CVDD | Capacitor | 1 µF, Ceramic, X5R, 25 V, 10% | GRM188R61E105KA12D | 1 | Murata |
| CF | Capacitor | 1 µF, Ceramic, X5R, 25 V, 10% | GRM188R61E105KA12D | 1 | Murata |
| CIN | Capacitor | 22 µF, Ceramic, X5R, 25 V, 10% | C2012X5R0J226M | 5 | TDK |
| COUT | Capacitor | 100 µF, Ceramic, X5R, 6.3 V, 20% | JMK316BJ107ML | 3 | Taiyo Yuden |
| CS | Capacitor | 0.22 µF, Ceramic, X7R, 25 V, 10% | GRM188R71E224KA88D | 1 | Murata |
| CSS | Capacitor | 22000 pF, Ceramic, X7R, 16 V, 10% | GRM188R71E223KA01D | 1 | Murata |
| CSBY | Capacitor | 68 pF, Ceramic, C0G, 50 V, 5% | GRM1885C1H680JA01D | 1 | Murata |
| DBOOT | Diode | Schottky Diode, Average I = 100 mA, Max Surge I = 750 mA | CMOSH-3 | 1 | Central Semi |
| DSW | Diode | Schottky Diode, Average I = 3A, Max Surge I = 80 A | CMSH3-40M | 1 | Central Semi |
| LOUT | Inductor | 0.33 µH, 1.4 mΩ | RL-8250-1.4-R33M | 1 | Renco |
| QL | N-Ch MOSFET | 20 V, 100 A, 64 nC, RDS(on) at 4.5 V = 1.6 mΩ | BSC019N02KS | 1 | Infineon |
| QH | N-Ch MOSFET | 20 V, 100 A, 40 nC, RDS(on) at 4.5 V = 2.1 mΩ | BSC026N02KS | 1 | Infineon |
| RC1 | Resistor | 10.0 kΩ, 1%, 0.1 W | CRCW060310K0FKEA | 1 | Vishay |
| RC2 | Resistor | 150Ω, 1%, 0.1 W | CRCW0603150RFKEA | 1 | Vishay |
| RDD | Resistor | 1Ω, 5%, 0.1 W | CRCW06031R00JNEA | 1 | Vishay |
| RFADJ | Resistor | 20.0 kΩ, 1%, 0.1 W | CRCW060320K0FKEA | 1 | Vishay |
| RFB1 | Resistor | 20.0 kΩ, 1%, 0.1 W | CRCW060320K0FKEA | 1 | Vishay |
| RFB2 | Resistor | 40.2 kΩ, 1%, 0.1 W | CRCW060340K2FKEA | 1 | Vishay |
| RF | Resistor | 2.2 Ω, 5%, 0.1 W | CRCW06032R20JNEA | 1 | Vishay |
| RPGD | Resistor | 51.1 kΩ, 5%, 0.1 W | CRCW060351K1JNEA | 1 | Vishay |
| RS | Resistor | 1.07 kΩ, 1%, 0.1 W | CRCW06031K07FKEA | 1 | Vishay |
| RSET | Resistor | 5.11 kΩ, 1%, 0. W | CRCW06035K11FKEA | 1 | Vishay |
