6.8 Typical Performance Characteristics
Unless otherwise stated, all data sheet curves were recorded using Example Circuit 1. VIN = 12 V.

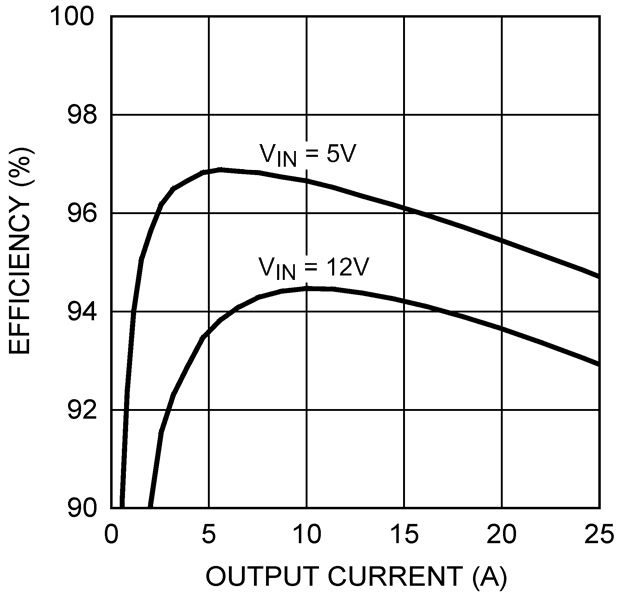

Figure 1. Efficiency (Vout = 1.5 V)
Figure 3. Efficiency (Vout = 3.3 V, Example Circuit 2)

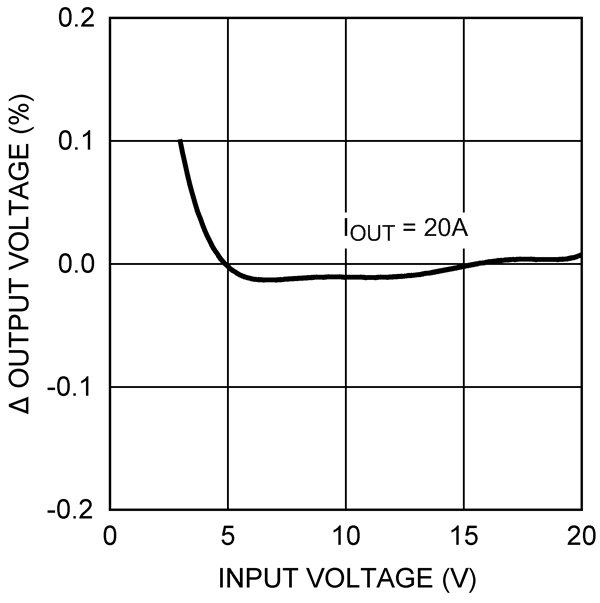

Figure 5. Line Regulation (Vout = 1.5 V)

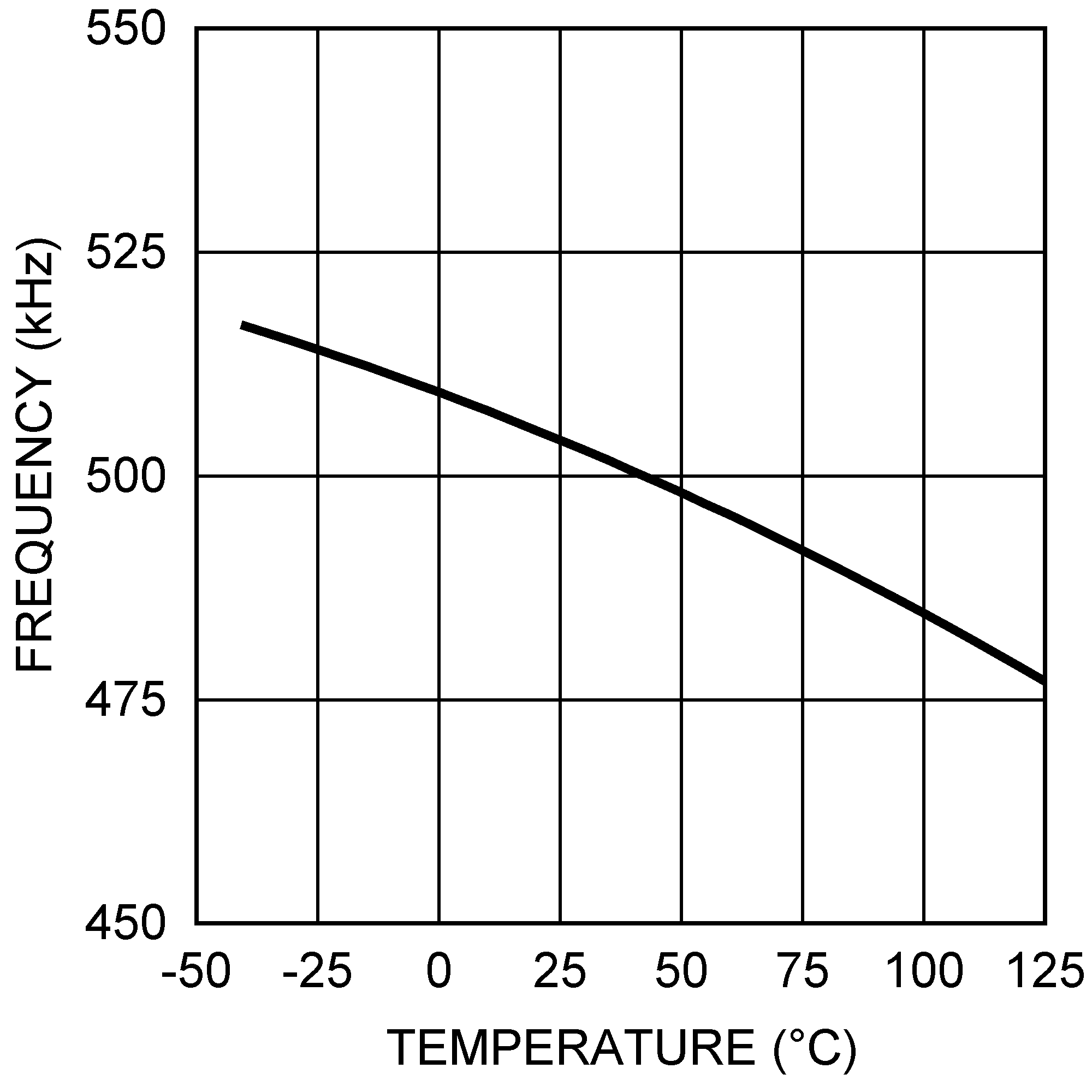

Figure 7. Frequency vs Temperature (RFADJ = 20 kΩ)

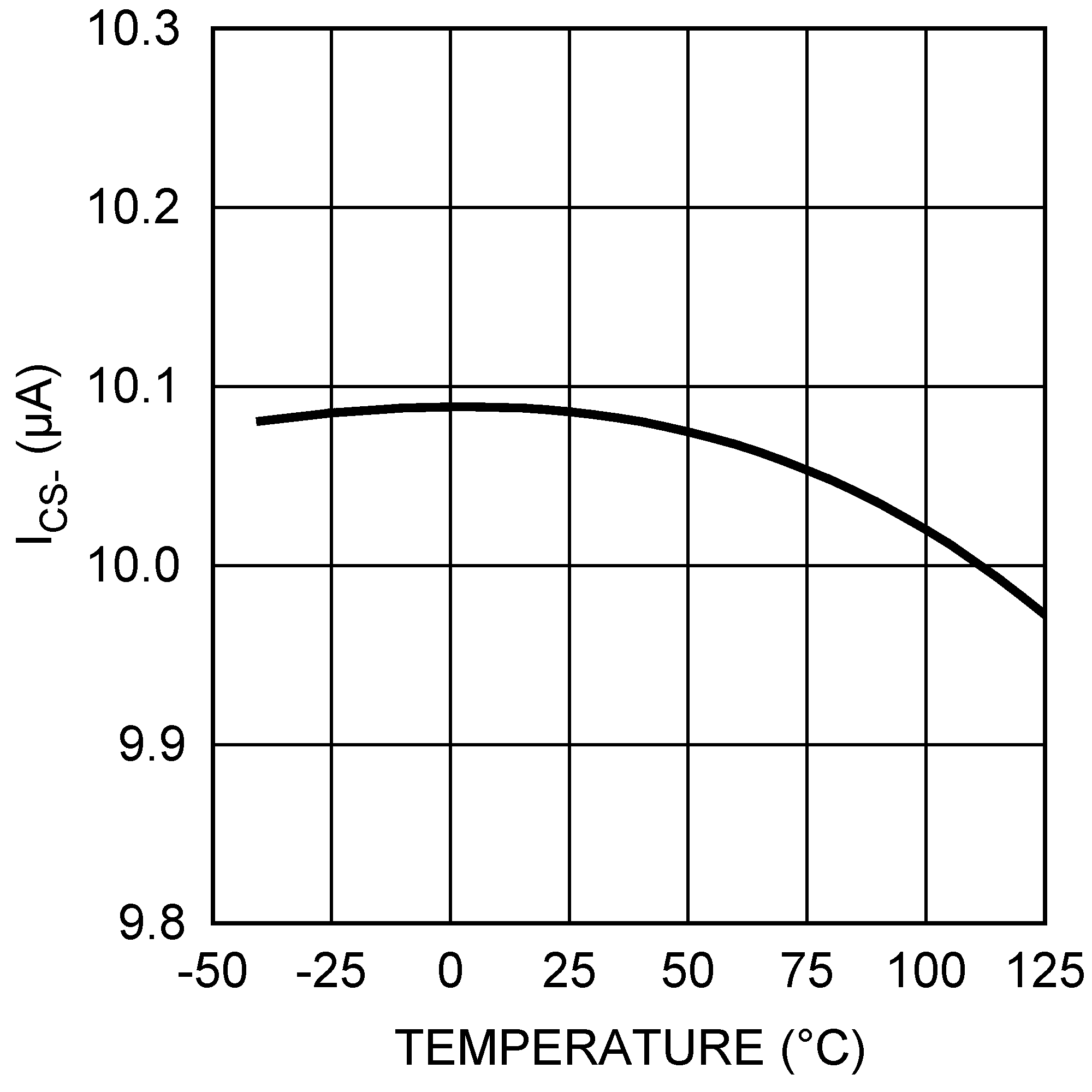

Figure 9. CS– Current Source vs Temperature

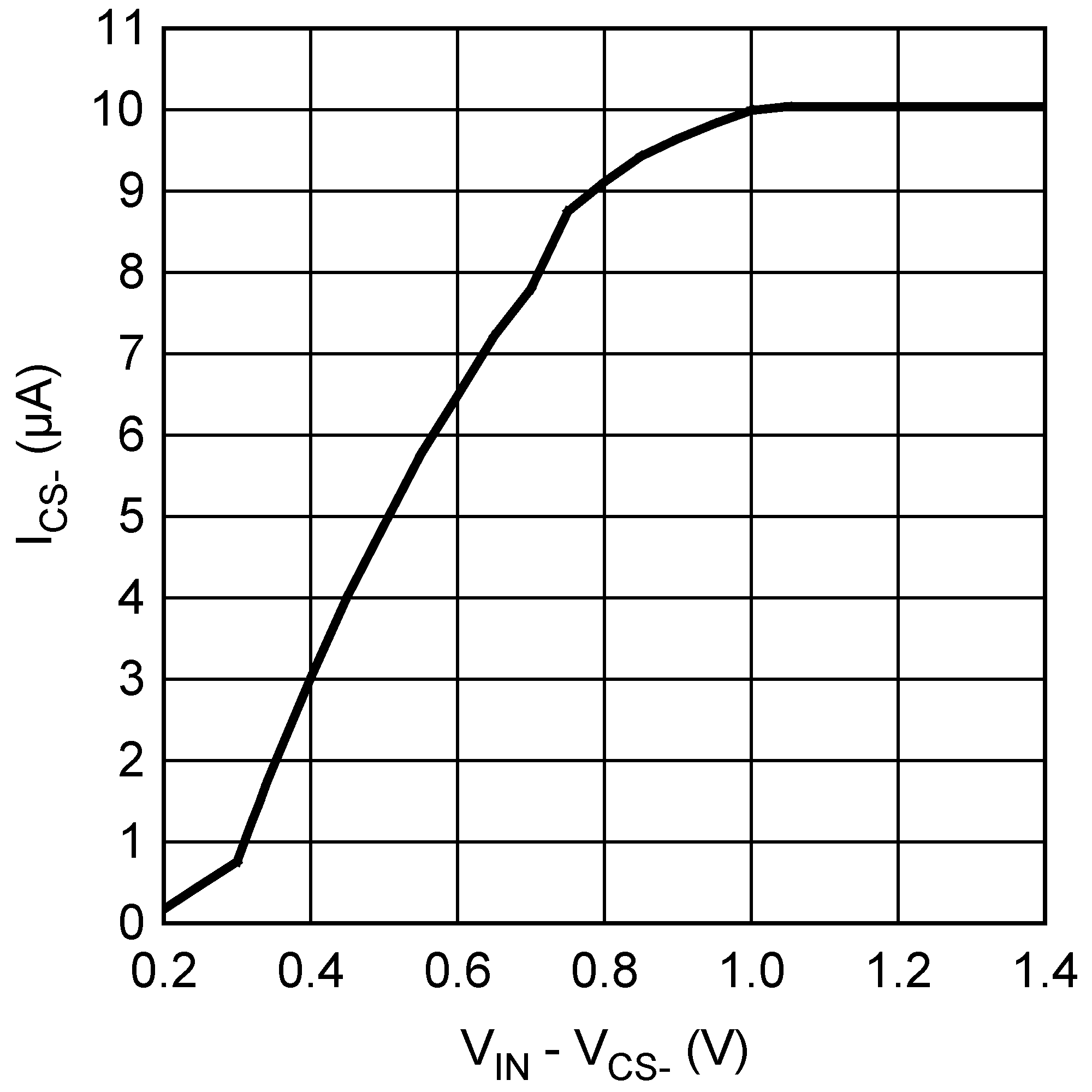

Figure 11. CS– Current Source Compliance Voltage
Horizontal Scale: 2 ms/DIV

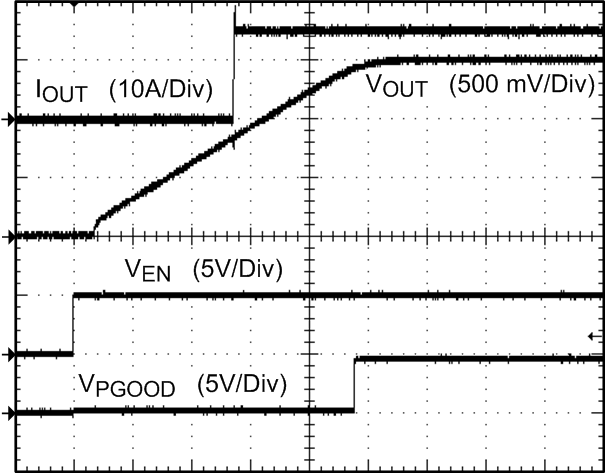

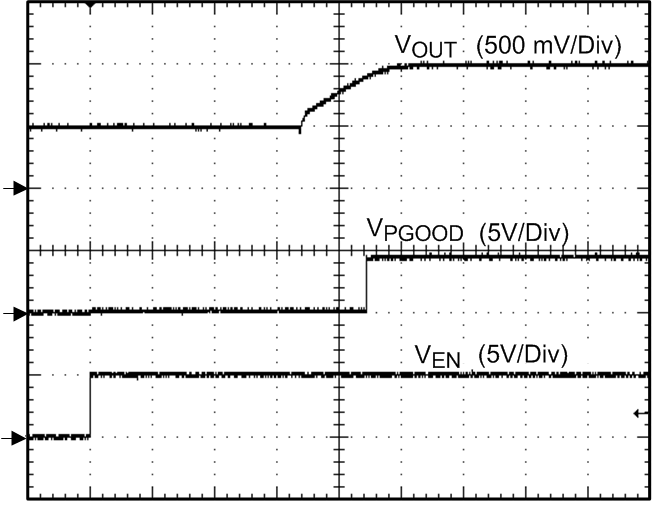

Figure 13. Start-up Waveforms
Horizontal Scale: 2 ms/DIV

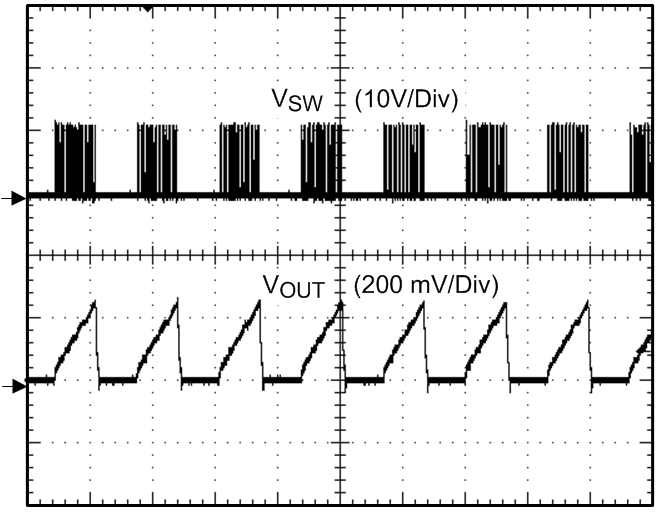

Figure 15. OCP Hiccup
Horizontal Scale: 2 ms/DIV

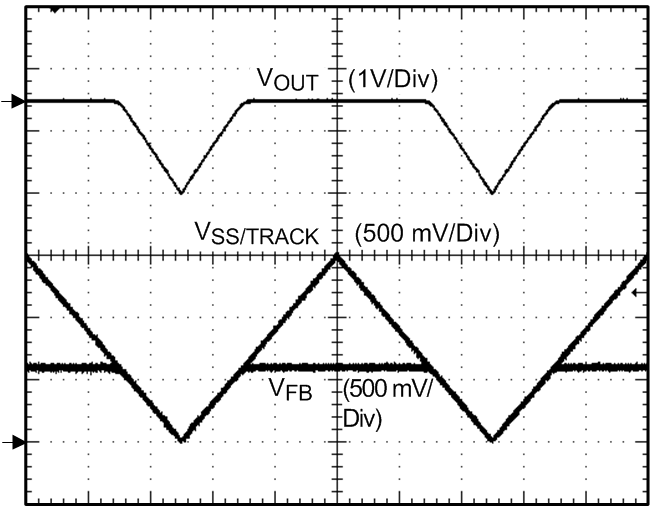

Figure 17. Tracking

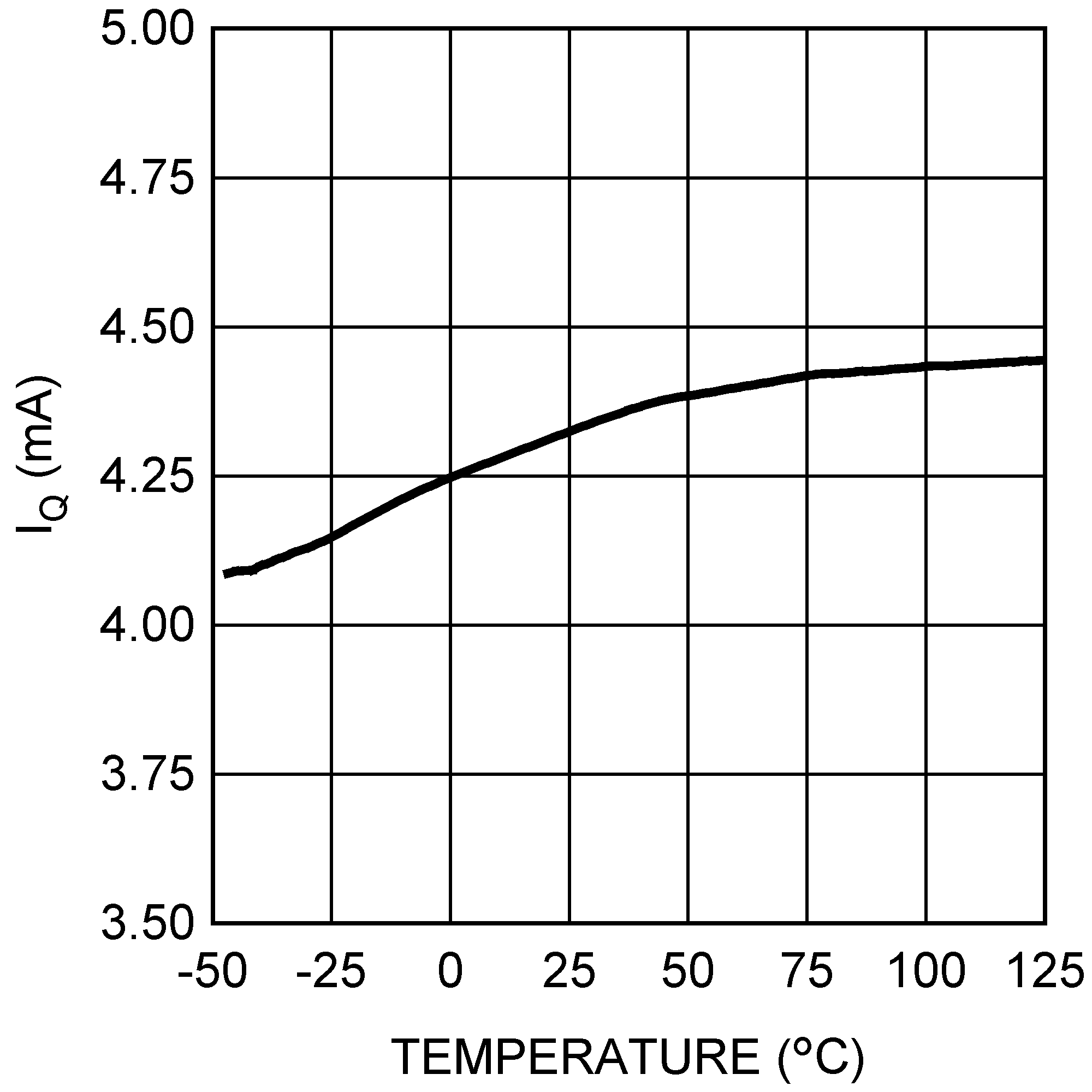

Figure 19. Quiescent Current vs Temperature

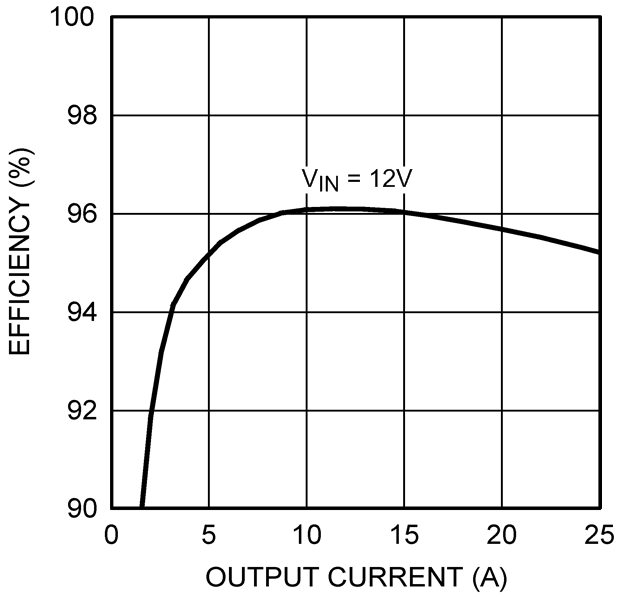

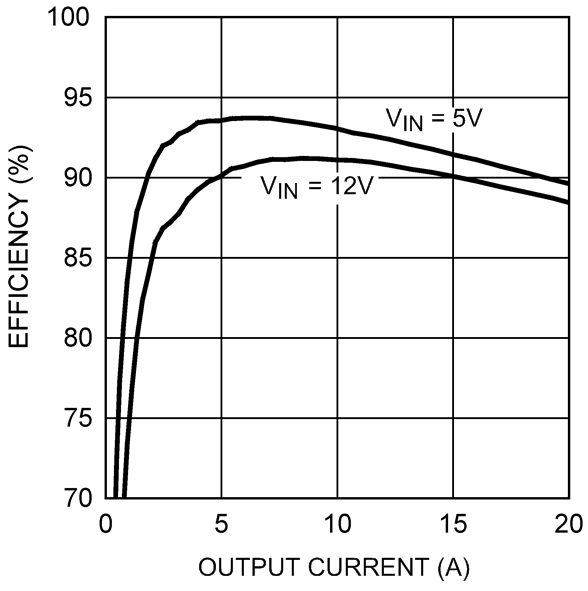

Figure 2. Efficiency (Vout = 5 V, Example Circuit 2)

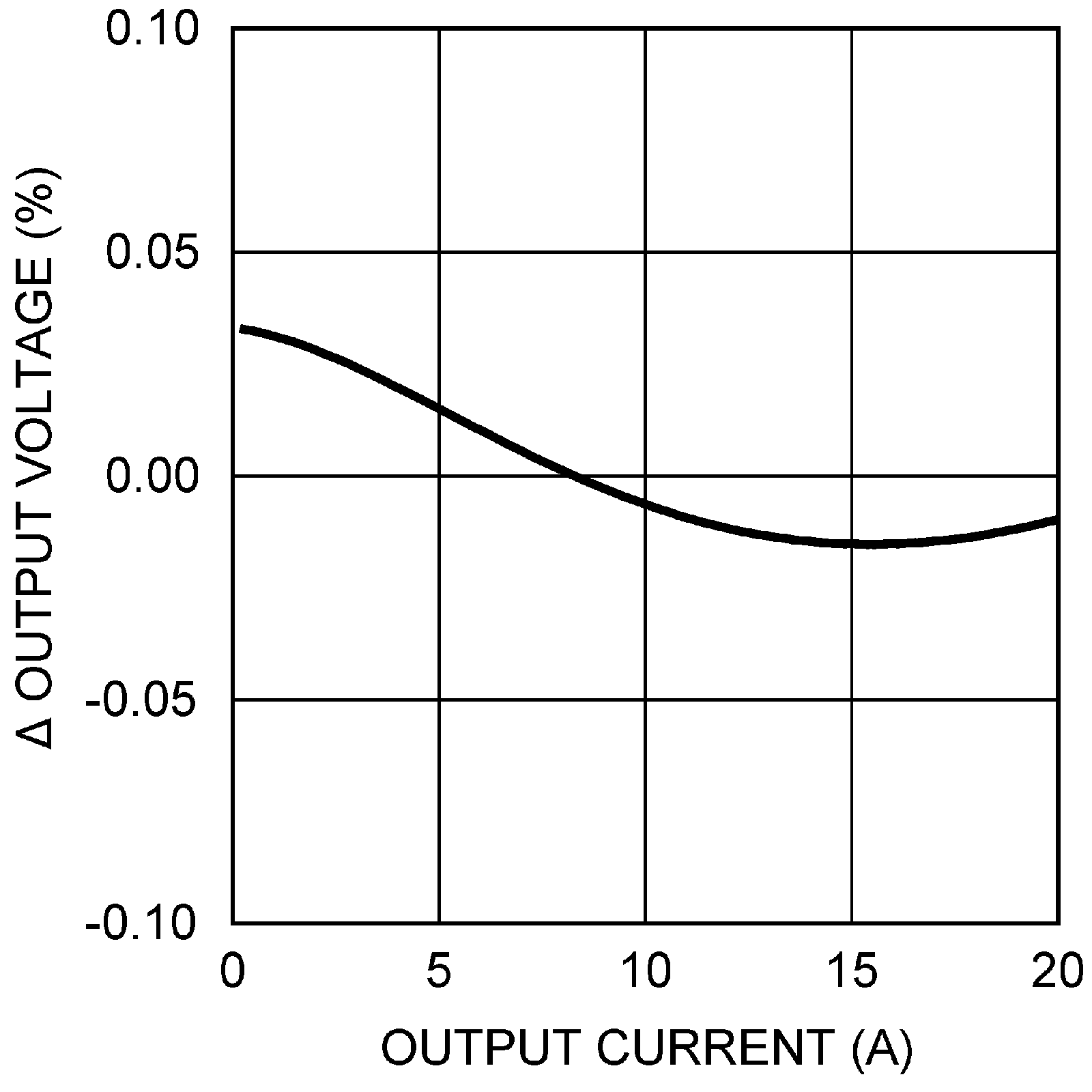

Figure 4. Load Regulation (Vout = 1.5 V)

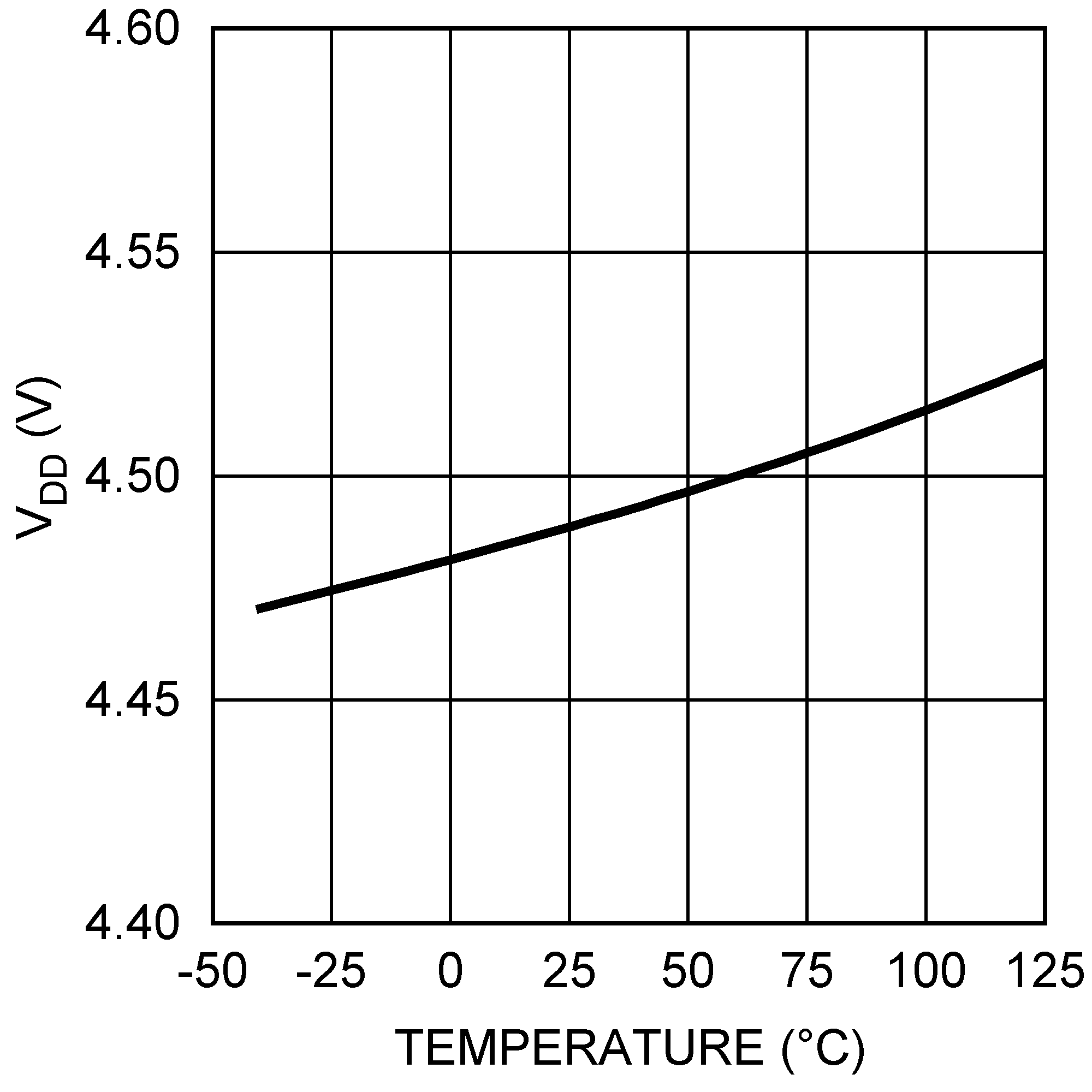

Figure 6. VDD Voltage vs Temperature (IVDD = 25 mA)

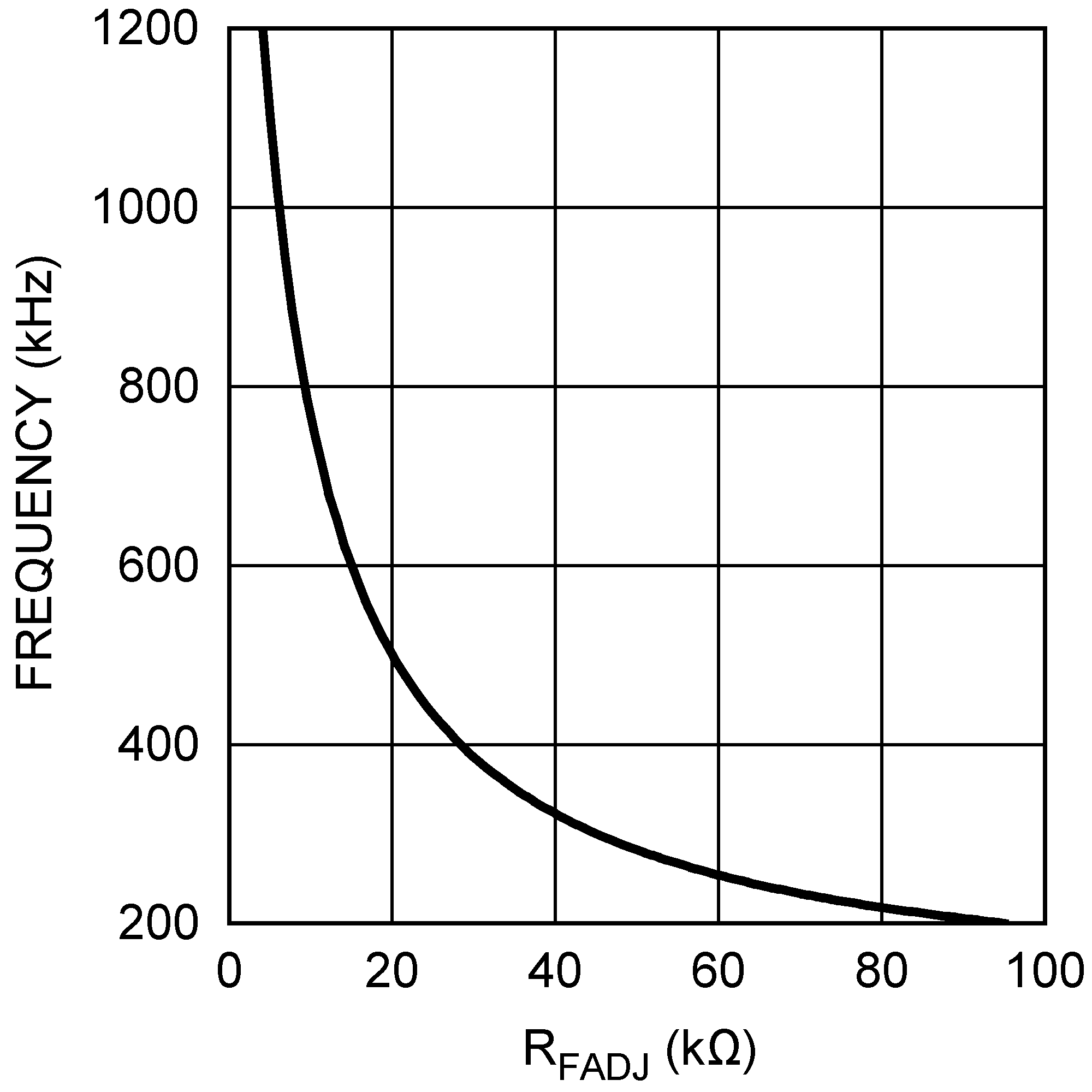

Figure 8. Frequency vs RFADJ

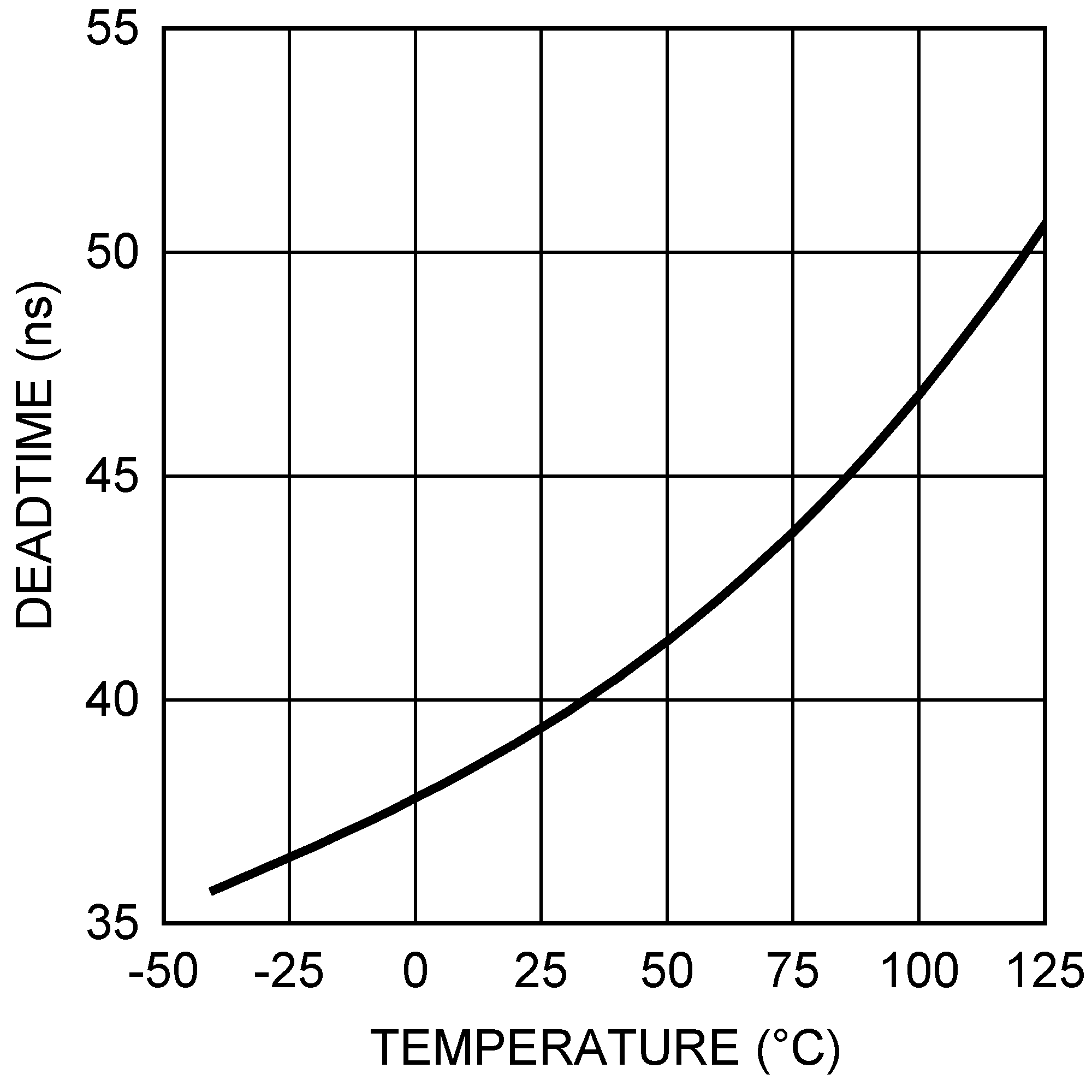

Figure 10. Deadtime vs Temperature
Horizontal Scale: 100 µs/DIV

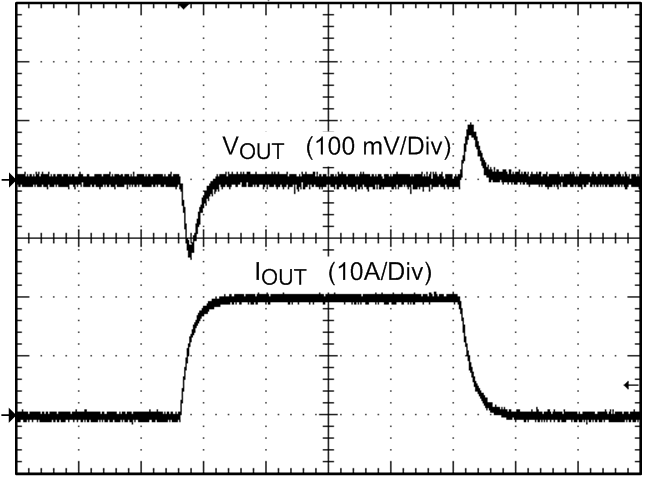

Figure 12. Load Transient
Horizontal Scale: 2 ms/DIV
Figure 14. Pre-Bias Start-up
Horizontal Scale: 400 ns/DIV

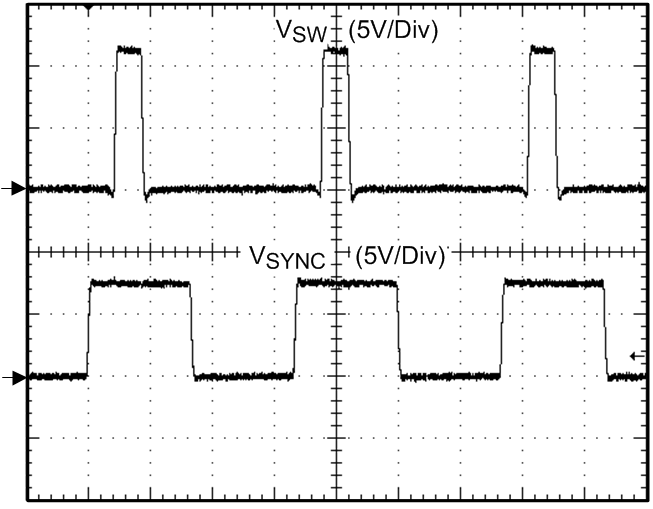

Figure 16. Frequency Synchronization

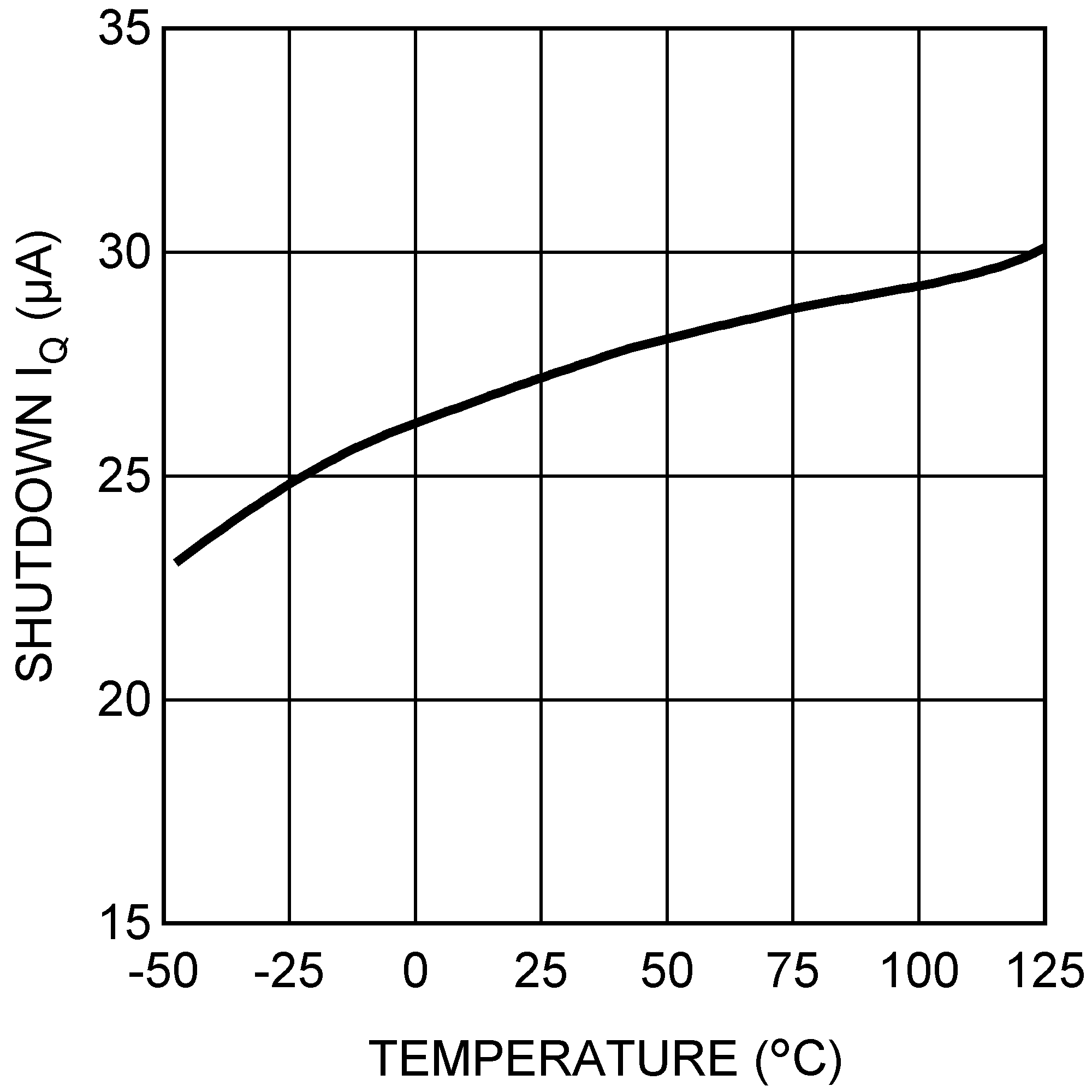

Figure 18. Shutdown Quiescent Current vs Temperature

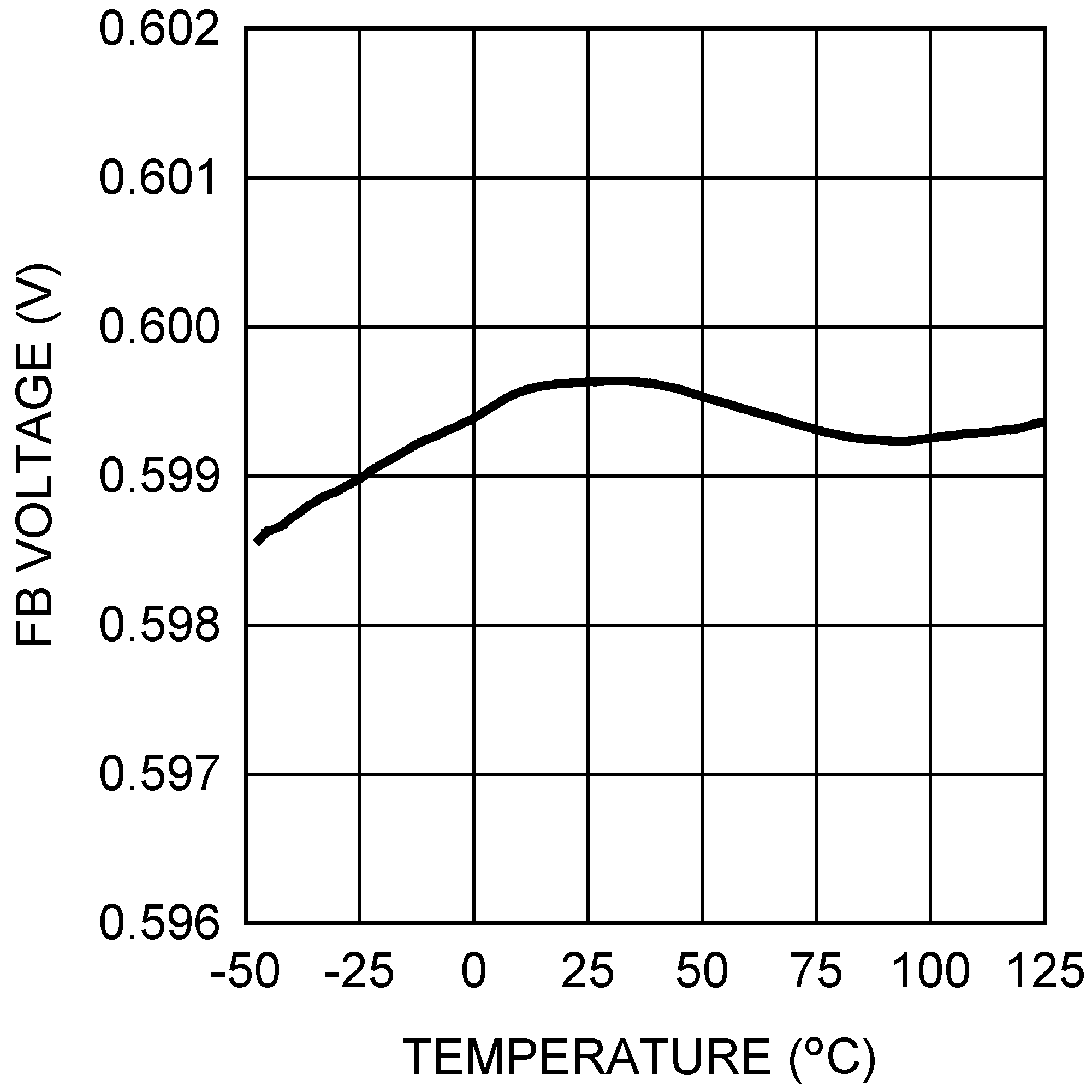

Figure 20. Feedback Voltage vs Temperature
