8.2.2 Application Curves
Unless otherwise stated, application performance curves were taken at TA = 25°C.
Figure 8-2 Efficiency (Linear Scale)

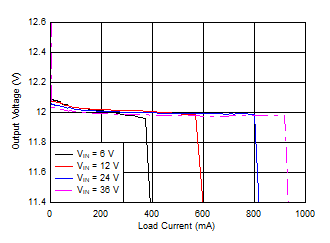

Figure 8-4 Load
Regulation (Linear Scale)

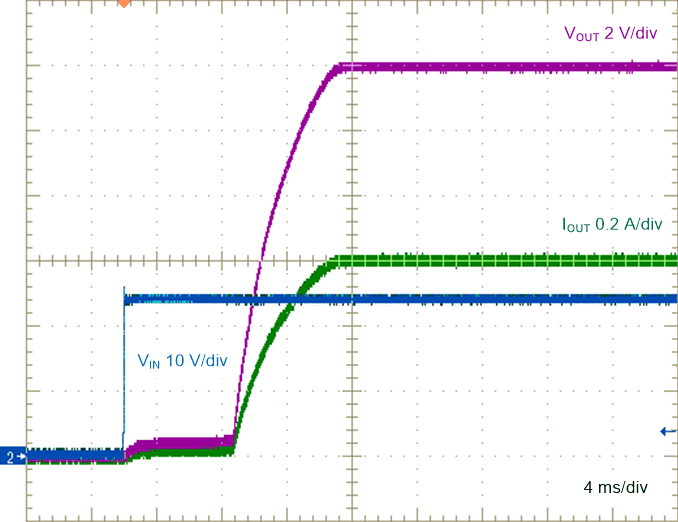

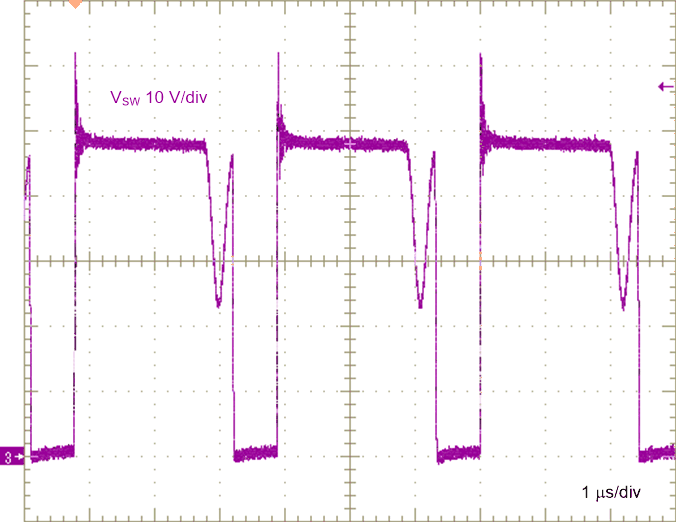

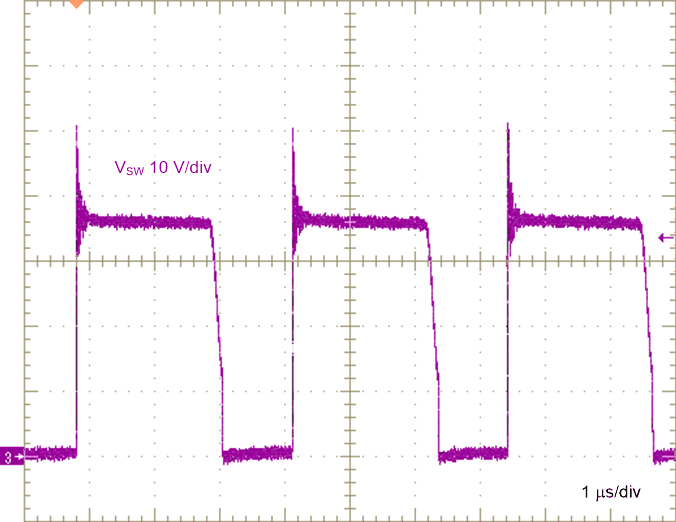

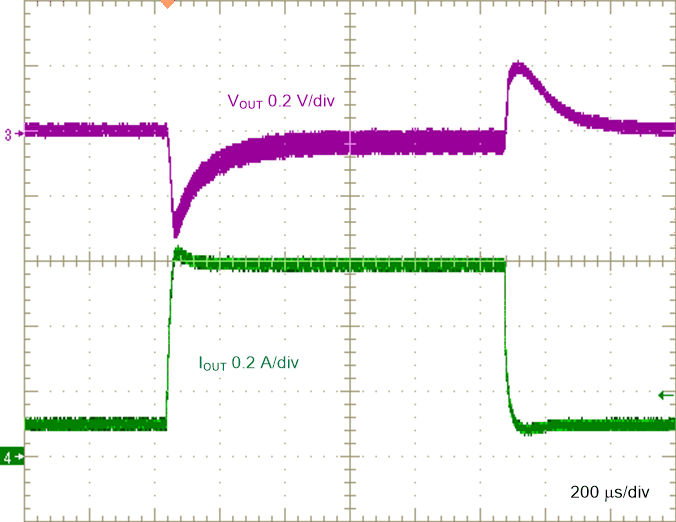

| VIN stepped to 24 V | 20-Ω Load | |
| VIN = 13.5 V | IOUT = 0.6 A | |
| VIN = 36 V | IOUT = 0.6 A |
| VIN = 13.5 V |

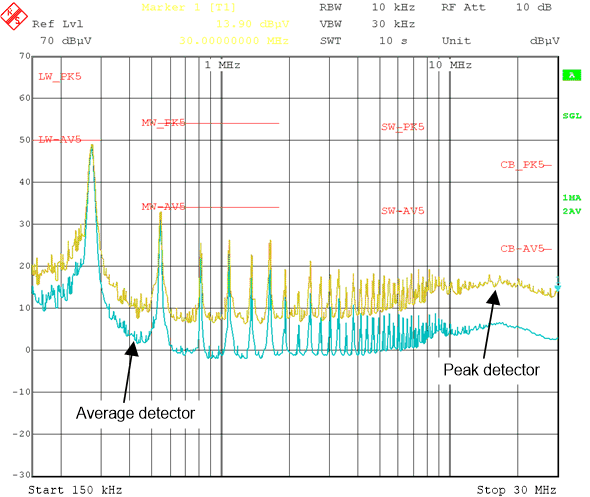

| VIN = 24 V | 150 kHz to 30 MHz | LIN = 4.7 μH |
| IOUT = 0.6 A | CIN = 10 μF |

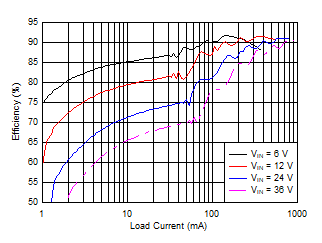

Figure 8-3 Efficiency (Log Scale)
Figure 8-5 Load

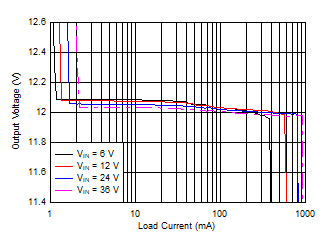

Regulation (Log Scale)

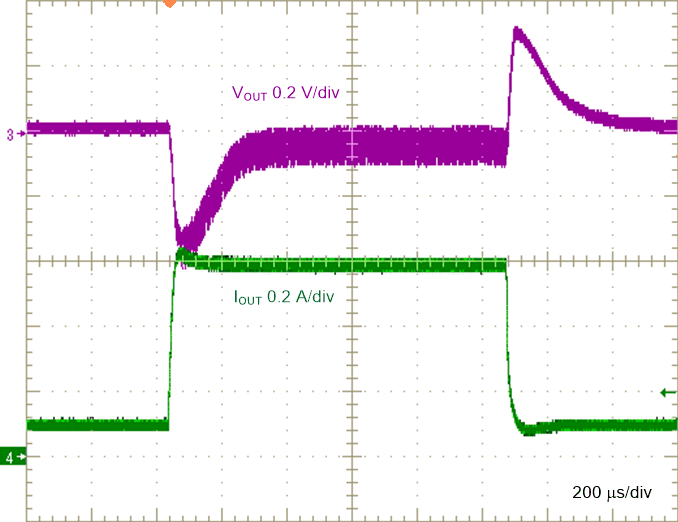

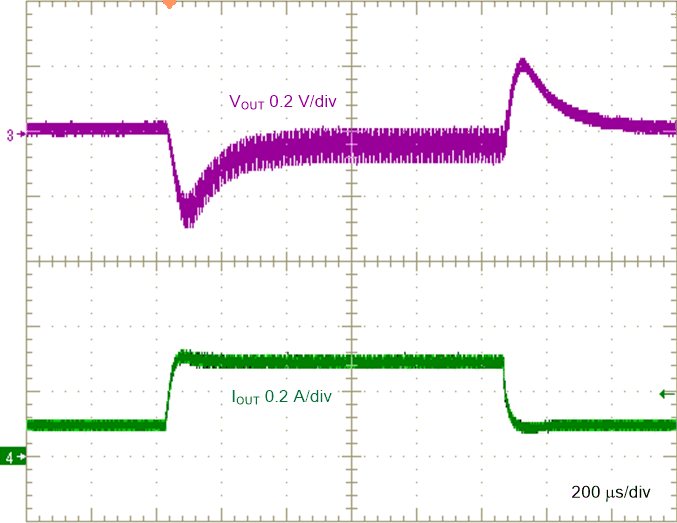

| VIN = 24 V | 12-Ω Load |
| VIN = 24 V | IOUT = 0.6 A | |
| VIN = 24 V |
| VIN = 6 V |

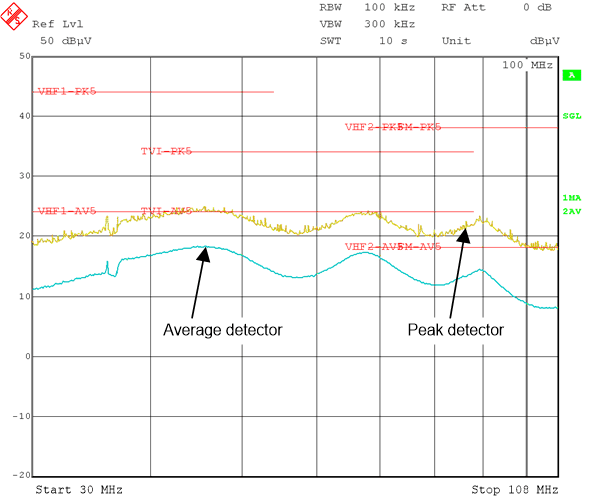

| VIN = 24 V | 30 MHz to 108 MHz | LIN = 4.7 μH |
| IOUT = 0.6 A | CIN = 10 μF |
