6.6 Typical Characteristics
VIN = 24 V, VEN/UVLO = 2 V (unless otherwise
stated).
VIN = 24 V, VEN/UVLO = 2 V (unless otherwise
stated).

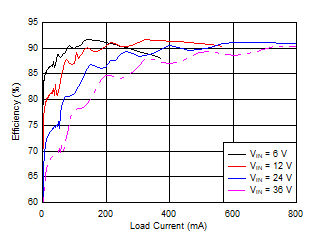

Figure 6-1 Efficiency versus Load. VIN = 24 V, VEN/UVLO = 2 V (unless otherwise
stated).

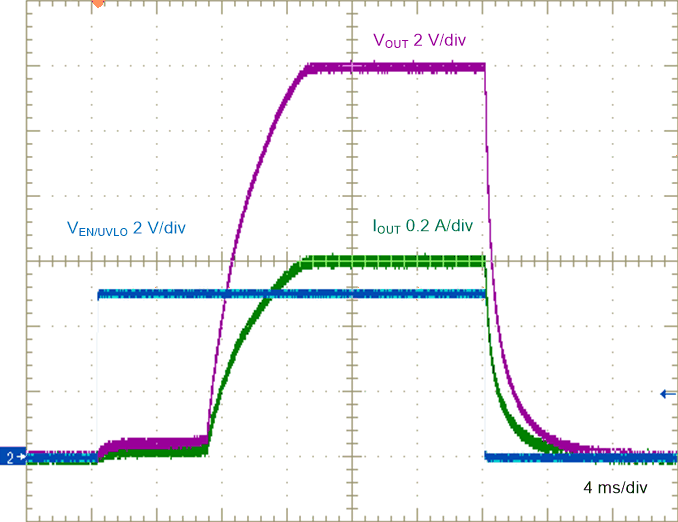

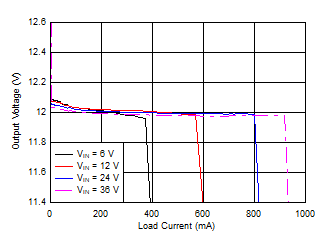

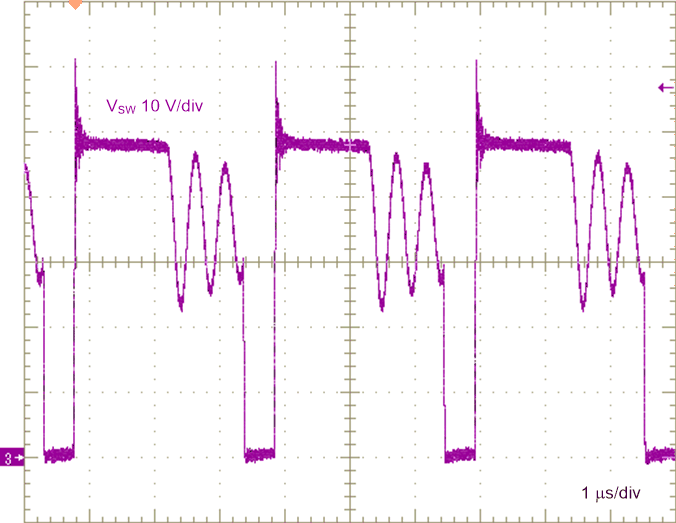

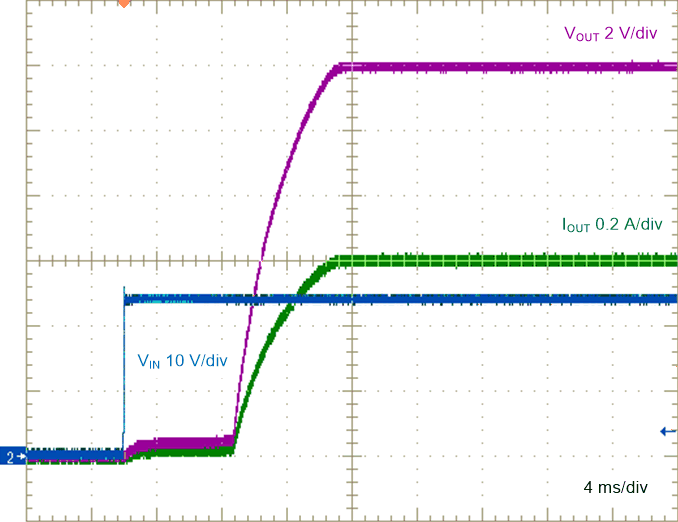

| See Figure 8-1 |

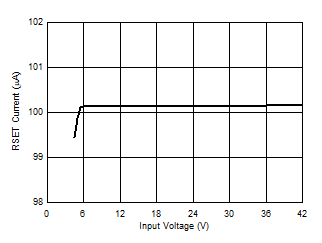

Figure 6-7 RSET Current versus Input Voltage

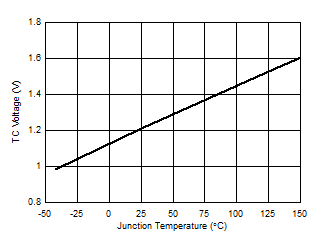

Figure 6-9 TC Voltage versus Temperature

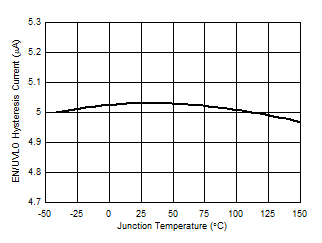

Figure 6-11 EN/UVLO Hysteresis Current versus Temperature

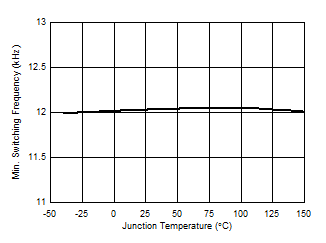

Figure 6-13 Minimum Switching Frequency versus Temperature

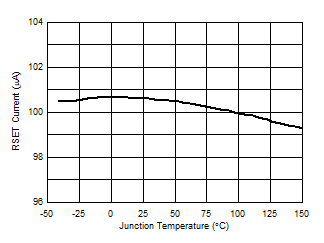

Figure 6-8 RSET Current versus Temperature

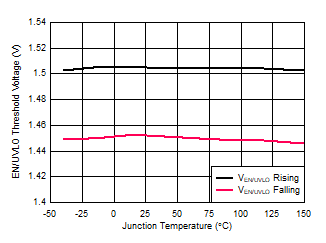

Figure 6-10 EN/UVLO Threshold Voltages versus Temperature

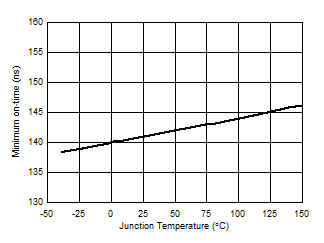

Figure 6-12 Minimum Switch On-Time versus Temperature

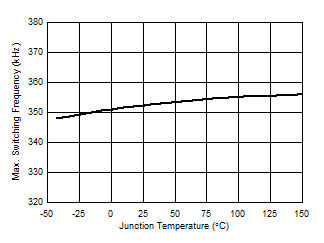

Figure 6-14 Maximum Switching Frequency versus Temperature
