8.2.3 Typical Isolated DC-DC Converter Using LM25018
An isolated supply using LM25018 is shown in Figure 8-5. Inductor (L) in a typical buck circuit is replaced with a coupled inductor (X1). A diode (D1) is used to rectify the voltage on a secondary output. The nominal voltage at the secondary output (VOUT2) is given by Equation 20.
Equation 20.
where
- VF is the forward voltage drop of D1.
- NP and NS are the number of turns on the primary and secondary of coupled inductor X1.
For output voltage (VOUT1) more than one diode drop above the maximum VCC (8.55 V), the VCC pin can be diode connected to VOUT1 for higher efficiency and low dissipation in the IC. See the AN-2292 Designing an Isolated Buck (Flybuck) Converter Application Report for a complete isolated bias design with a Fly-Buck? converter.

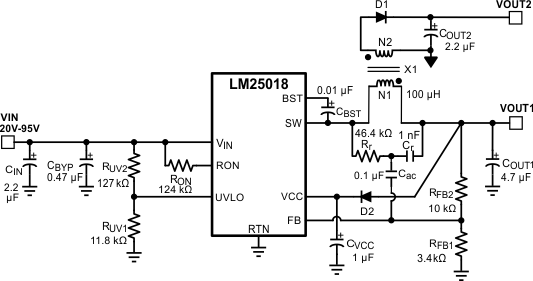

Figure 8-5 Typical Isolated Application Schematic
