8.2.3.3 Application Curves

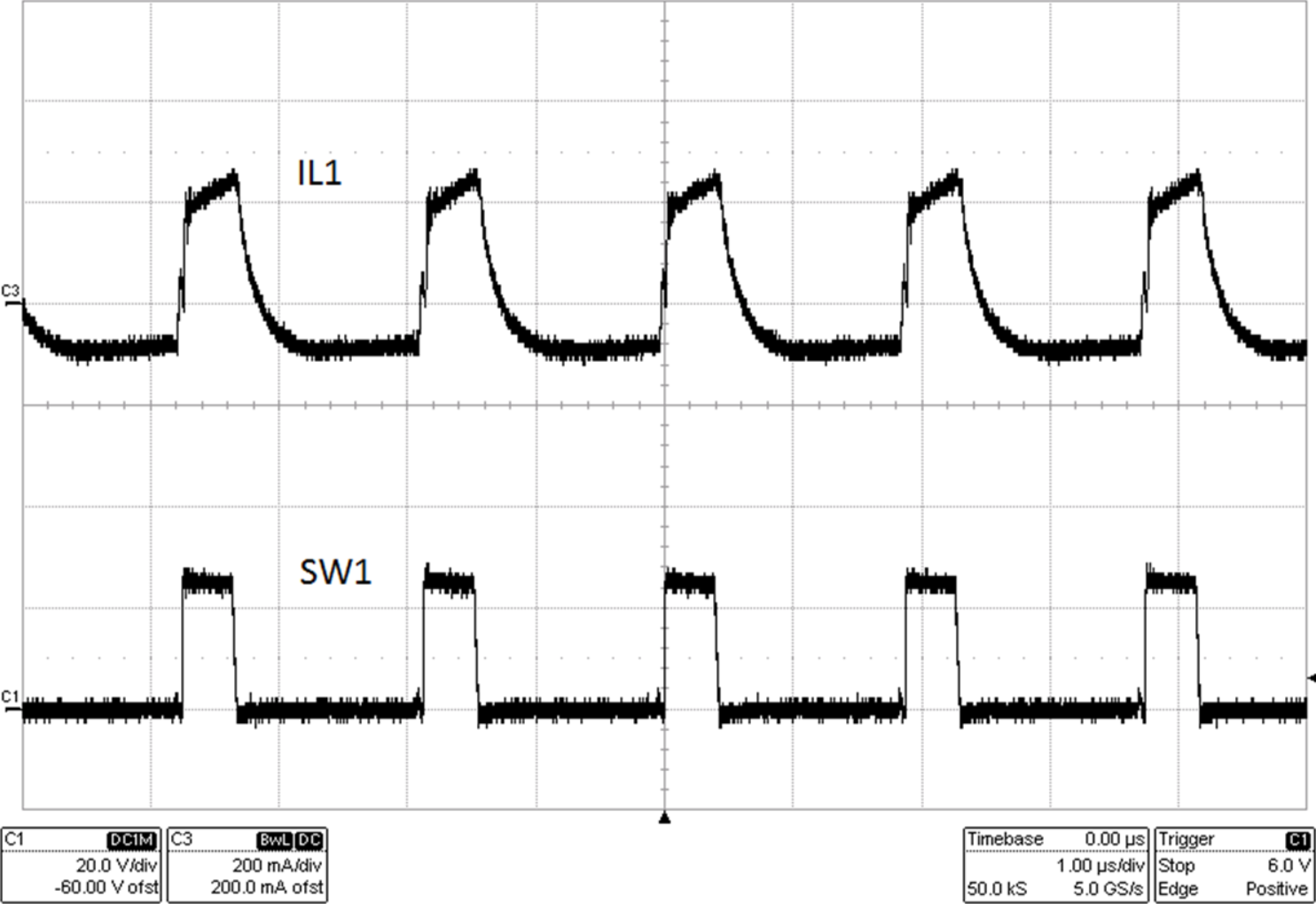

Figure 8-9 Steady State Waveform (VIN = 24 V, IOUT1 = 0 mA, IOUT2 = 200 mA)

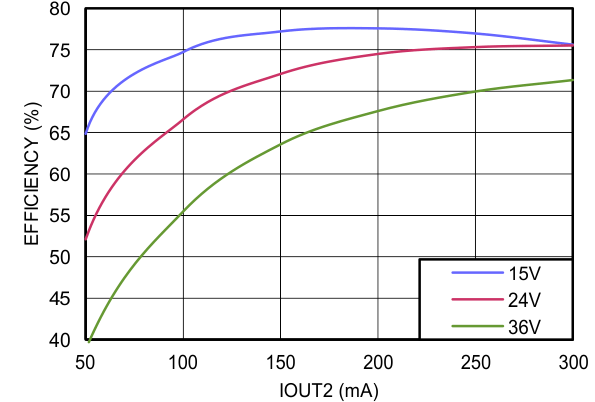

Figure 8-11 Efficiency at 500 kHz, VOUT1 = 5 V

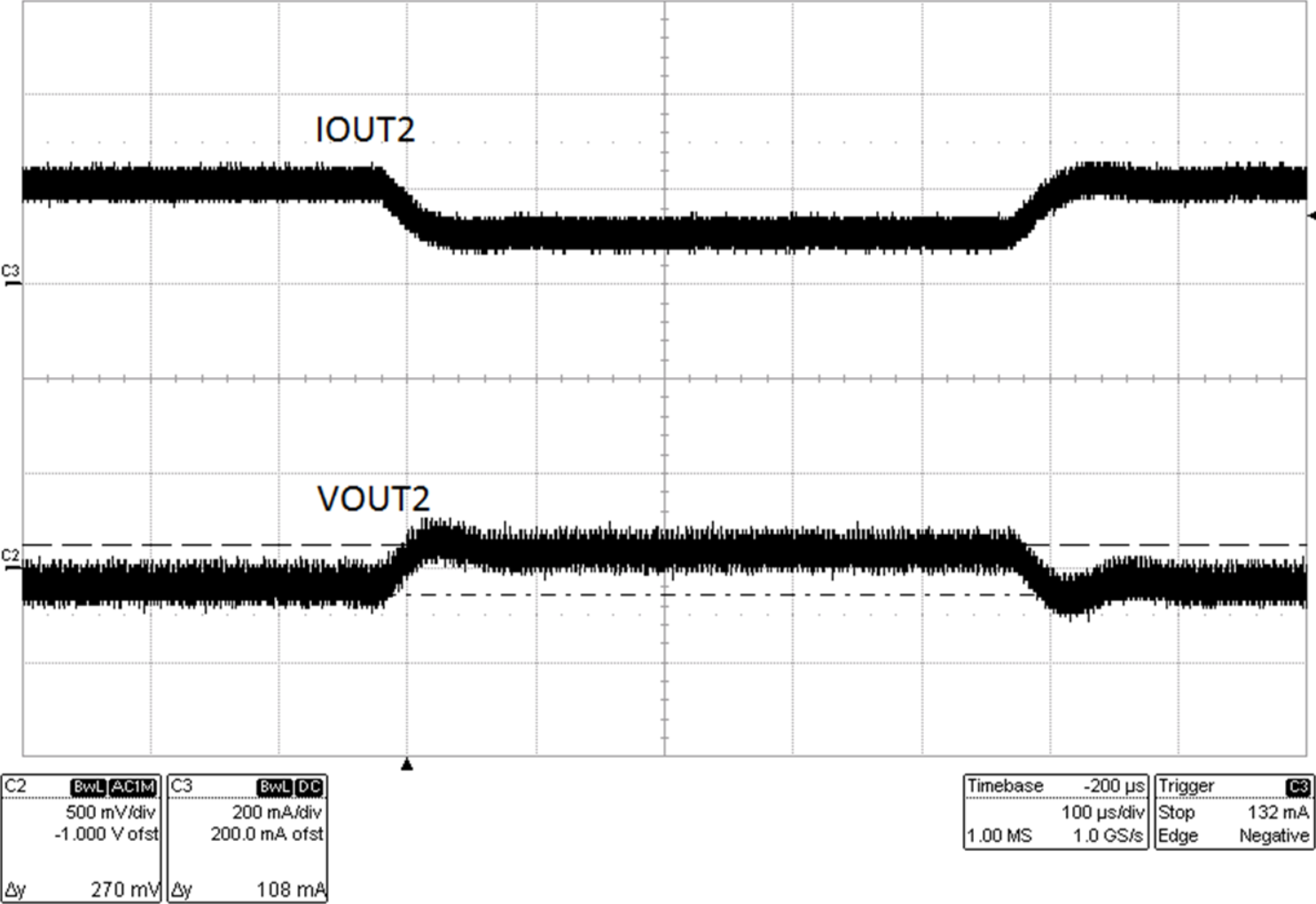

Figure 8-10 Step Load Response (VIN = 24 V, IOUT1 = 0, Step Load on IOUT2 = 100 mA to 200 mA)
