8 Parameter Measurement Information
In the below images, VCCI and
VCCO refers to the power supplies VIO and VISOIN,
respectively.
A. CL = 15 pF and The
input pulse is supplied by a generator having the following characteristics: PRR
≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns, tf ≤ 3ns,
ZO = 50 Ω. At the input, 50 Ω resistor is required to terminate
Input Generator signal. It is not needed in actual application.
B. B. CL = 15 pF and
includes instrumentation and fixture capacitance within ±20%.
Figure 8-1 Switching
Characteristics Test Circuit and Voltage Waveforms

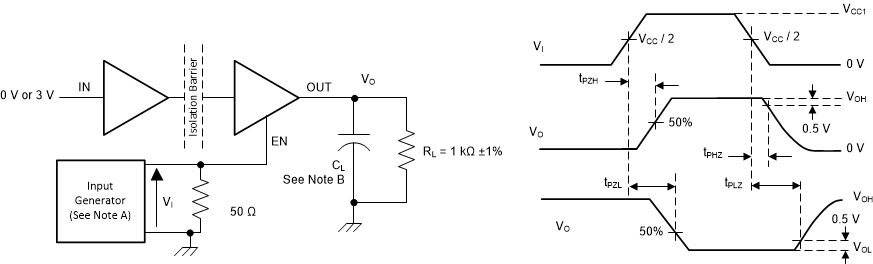

A. A. The input pulse is supplied by
a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle,
tr ≤ 3 ns, tf ≤ 3ns, ZO = 50 Ω. At the
input, 50 Ω resistor is required to terminate Input Generator signal. It is not
needed in actual application.
B. B. CL = 15 pF and
includes instrumentation and fixture capacitance within ±20%.
Figure 8-2 Enable/Disable Propagation
Delay Time Test Circuit and Waveform

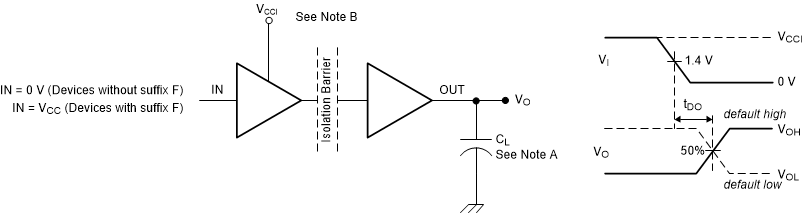

Note: A. CL = 15 pF and includes instrumentation and fixture capacitance
within ±20%.
Note: B. Power Supply Ramp Rate = 10 mV/ns.
Figure 8-3 Default Output Delay Time Test Circuit and Voltage WaveformsNote: CL = 15 pF and includes instrumentation and fixture capacitance
within ±20%.
Note: Pass-fail criteria: Outputs must remain stable.
Figure 8-4 Common-Mode Transient Immunity Test Circuit
