8.2 Typical Application

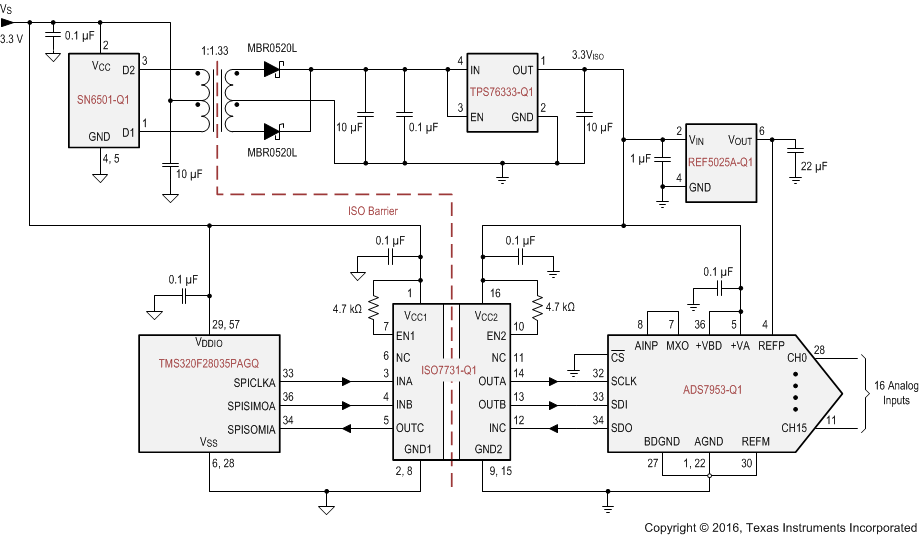

The ISO7731-Q1 device combined with Texas Instruments' Piccolo? microcontroller, analog-to-digital receiver, transformer driver, and voltage regulator can create an isolated serial peripheral interface (SPI) as shown in Figure 8-1.
Multiple pins and discrete components are omitted for clarity.
Figure 8-1 Isolated SPI for an Analog Input Module With 16 Inputs and a Single Slave
