8.2.2 Detailed Design Procedure
Unlike optocouplers, which require external components to improve performance, provide bias, or limit current, the ISO773x-Q1 family of devices only requires two external bypass capacitors to operate. Figure 8-2 and Figure 8-3 show the typical circuit hook-up for the devices.

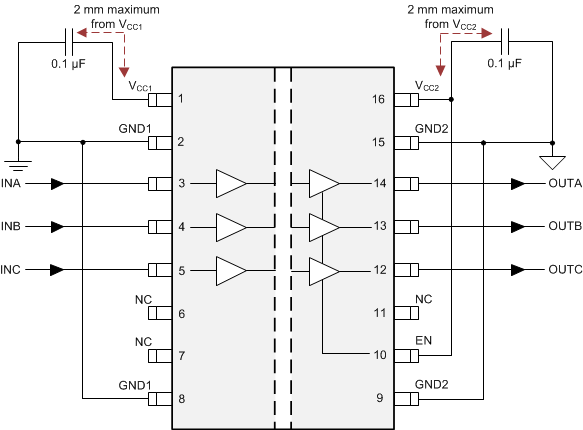

Figure 8-2 Typical ISO7730-Q1 Circuit Hook-Up

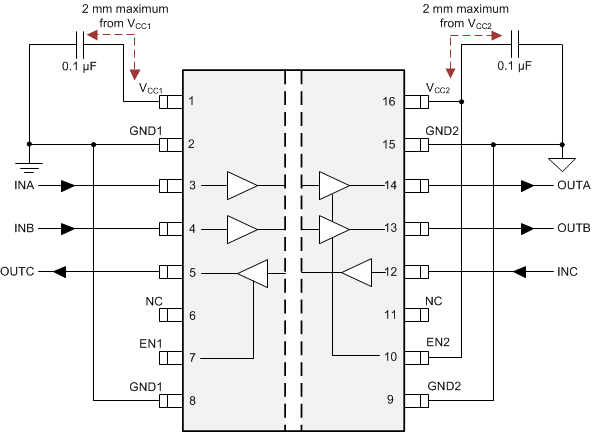

Figure 8-3 Typical ISO7731-Q1 Circuit Hook-Up
