25.2.3 Application Curve

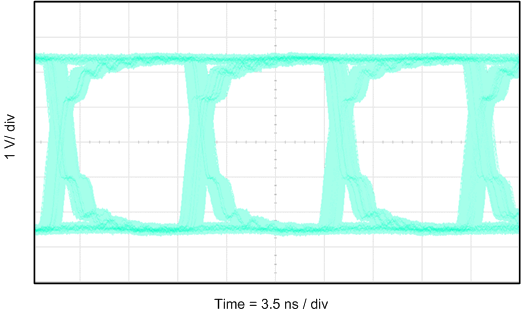

The following typical eye diagram of the ISO7710-Q1 device indicates low jitter and wide open eye at the maximum data rate of 100 Mbps.
Figure 25-3 ISO7710-Q1 Eye Diagram at 100 Mbps PRBS, 5-V Supplies and 25°C
