4 Pin Configuration and Functions
Figure 4-1 DW Package 16-Pin SOIC Top View

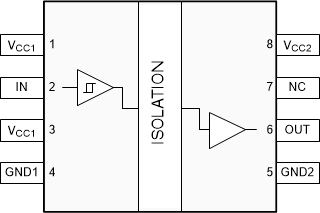

Figure 4-2 D
Package 8-Pin SOIC Top ViewTable 4-1 Pin Functions
| PIN | Type | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | NO. | |||
| DW | D | |||
| VCC1 | 3 | 1, 3 | — | Power supply, VCC1 |
| VCC2 | 14 | 8 | — | Power supply, VCC2 |
| GND1 | 1, 7 | 4 | — | Ground connection for VCC1 |
| GND2 | 9, 16 | 5 | — | Ground connection for VCC2 |
| IN | 4 | 2 | I | Input channel |
| OUT | 13 | 6 | O | Output channel |
| NC | 2, 5, 6, 8, 10, 11, 12, 15 | 7 | — | No connect pin; no internal connection |
