10.2.2.9 Determining the Maximum Available, Dynamic Output Power, POD-max
The ISO5452 maximum allowed total power consumption of PD = 251 mW consists of the total input power, PID, the total output power, POD, and the output power under load, POL:
Equation 2. PD = PID +
POD + POL
With:
Equation 3. PID =
VCC1-max × ICC1-max = 5.5 V × 4.5 mA = 24.75
mW
and:
Equation 4. POD = (VCC2
– VEE2) × ICC2-max = (15V – ( –8V)) × 6 mA = 138
mW
then:
Equation 5. POL = PD –
PID – POD = 251 mW – 24.75 mW – 138 mW = 88.25
mW
In comparison to POL, the actual dynamic output power under worst case condition, POL-WC, depends on a variety of parameters:
Equation 6.
where
- fINP = signal frequency at the control input IN+
- QG = power device gate charge
- VCC2 = positive output supply with respect to GND2
- VEE2 = negative output supply with respect to GND2
- ron-max = worst case output resistance in the on-state: 4 ?
- roff-max = worst case output resistance in the off-state: 2.5 ?
- RG = gate resistor
When RG is determined, Equation 6 is to be used to verify whether POL-WC < POL. Figure 10-9 shows a simplified output stage model for calculating POL-WC.

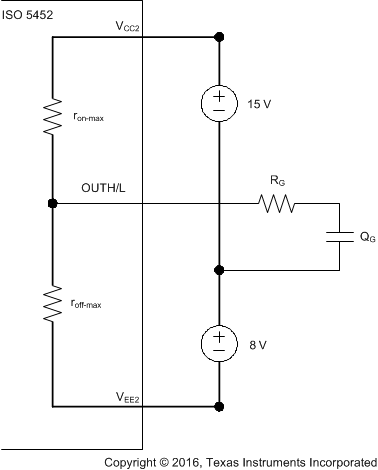

Figure 10-9 Simplified Output Model for Calculating POL-WC
