4 Pin Configuration and Functions

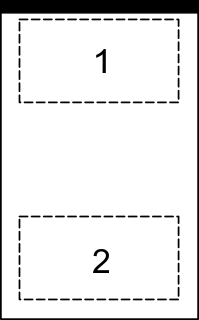

Figure 4-1 DPY
Package,2-Pin X1SON(Top View)Table 4-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| IO | 1 | I/O | ESD Protected Channel. If used as ESD IO, connect pin 2 to ground |
| IO | 2 | I/O | ESD Protected Channel. If used as ESD IO, connect pin 1 to ground |
(1) I = input, O = output
