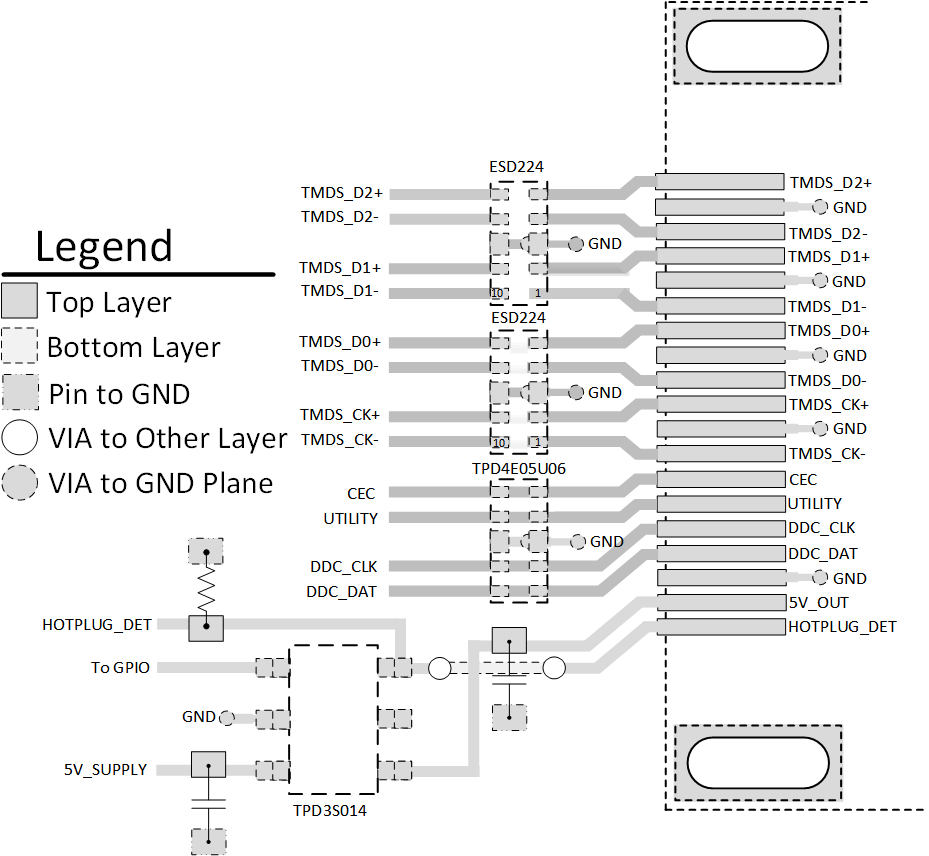

11.2 Layout Examples
Figure 15. HDMI Type-A Transmitter Port Layout
NOTE
There is no Through-Routing for the ESD224 Pins Connecting to the High Speed Data Lines.
