The DS90UB954-Q1 has two input ports that are capable of operating independently. Two sensors can be connected simultaneously, or a single sensor can be connected to either Rx input port 0 (#SNLS50639) or Rx input port 1 (#SNLS5077084). The DS90UB954-Q1 deserializer is capable of receiving serialized sensor data from one or two independent video datastreams and aggregating into a single CSI-Tx output. Alternatively, Rx Data can be replicated onto two 2-Lane CSI-2 outputs for interconnect to two seperate CSI-2 Rx inputs for parallel downstream processing.

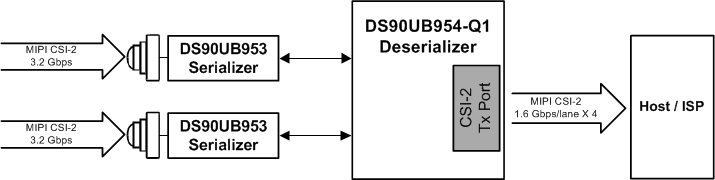

Figure 8-12 Two DS90UB953-Q1 Sensor Data Combined to One CSI-2 Output
Figure 8-13 DS90UB953-Q1 Sensor Data to 1 Rx Port

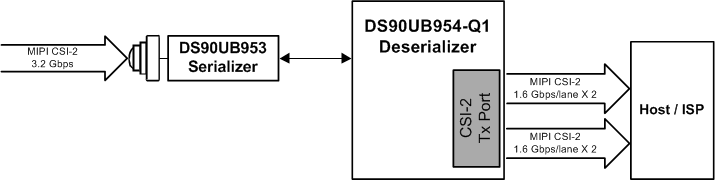

Figure 8-14 DS90UB953-Q1 Sensor Data Replicated onto 2x 2-Lane CSI-2
Figure 8-15 One DS90UB953-Q1 and One DS90UB933-Q1 Sensor Data Combined to One CSI-2 output
