8.2.1 Design Requirements

This section lists some critical areas for high speed printed circuit board design consideration and study.

• Utilize 100Ω differential impedance traces.
• Back-drill connector vias and signal vias to minimize stub length.
• Use reference plane vias to ensure a low inductance path for the return current.
• Place AC-Coupling capacitors for the transmitter links near the receiver for that channel.
• The maximum body size for AC-coupling capacitors is 0402.

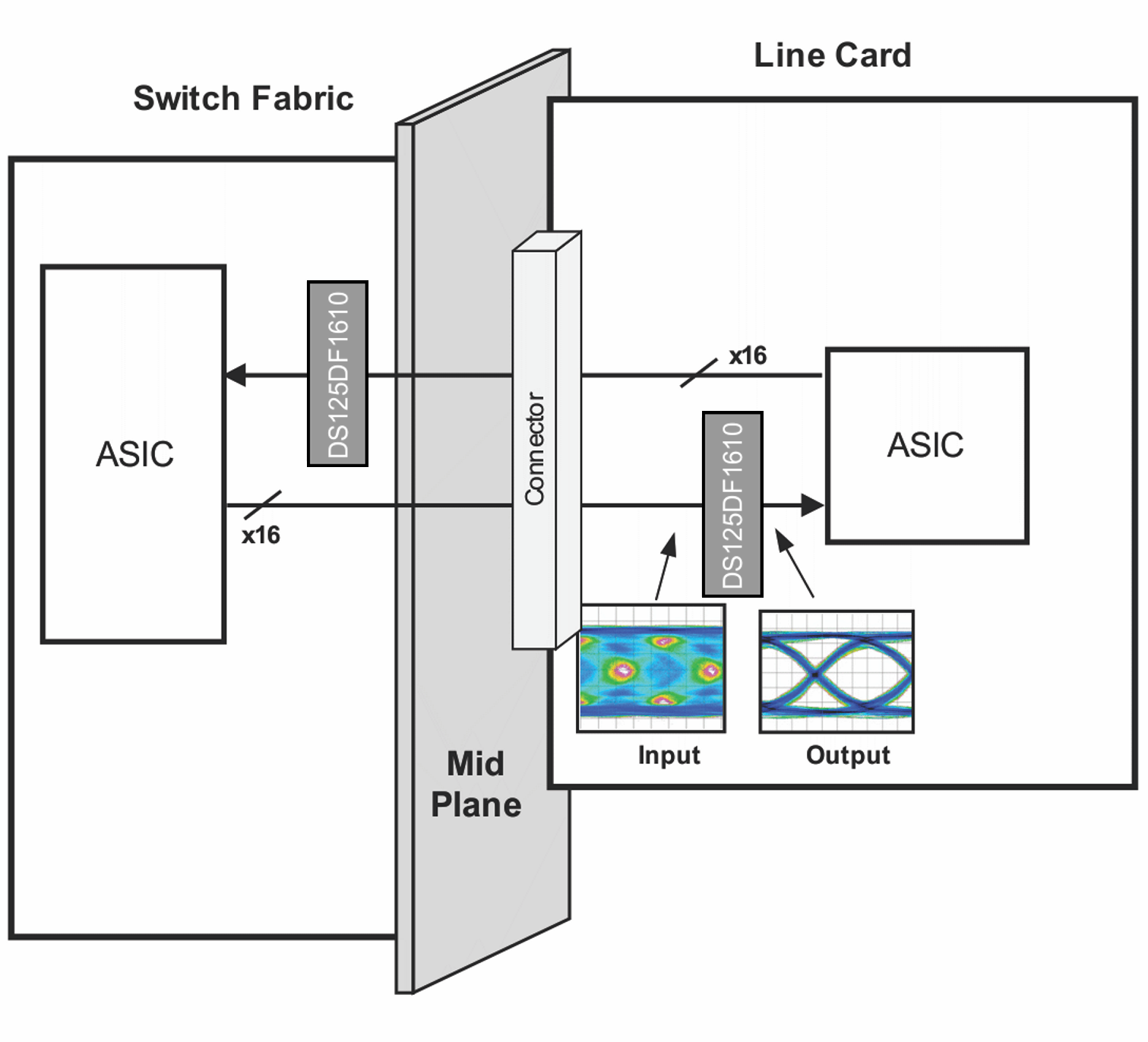

8.2.2 Detailed Design Procedure

To begin the design process determine the following:

• Maximum power draw for PCB regulator selection. For this calculation use the CDR locking power number specified in the datasheet, multiplied by the number of channels allowed to lock at a time by the lock sequencer. Then add the static power. The lock sequencer defaults to 8 channels allowed to lock at a time. To ease the peak power draw, the lock sequencer can be set to allow for only 1 channel to lock at a time. The lock time for each channel is typically very short, so this power calculation should not be used for the thermal simulations of the PCB.
• Maximum operational power for thermal calculations. For this calculation use the CDR locked power numbers specified in the datasheet, multiplied by the number of channels that will be active in the device. Then add the static power. If it is desired to use the Pattern Generator or PRBS checker, add these powers per channel. Note that a channel's PRBS Checker and Pattern Generator cannot both be active at the same time. So the total count of active PRBS Checkers and Pattern Generators should not be more than 16 per device.
• Select a reference clock frequency and routing scheme.
• Plan out channel connectivity. Be sure to note any desired cross point routing in the board schematics.
• Ensure that each device has a unique SMBus address if the control bus is shared with other devices or components.
• Use the IBIS-AMI model for simple channel simulations before PCB layout is complete.

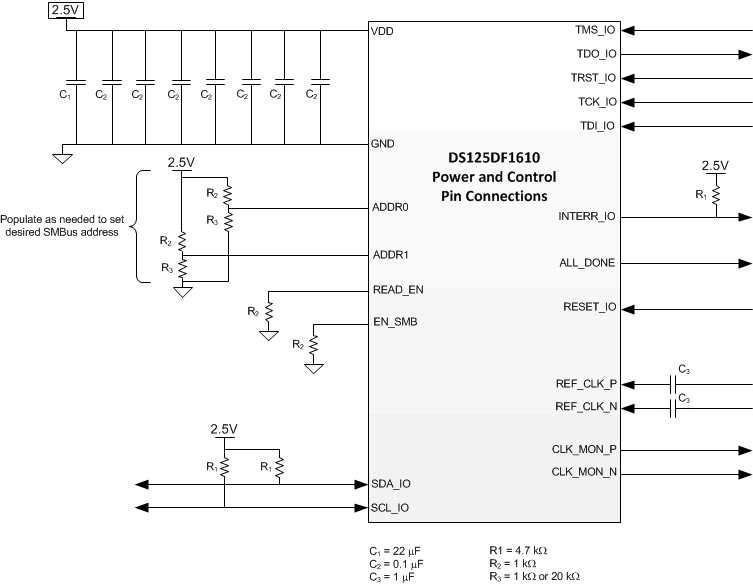

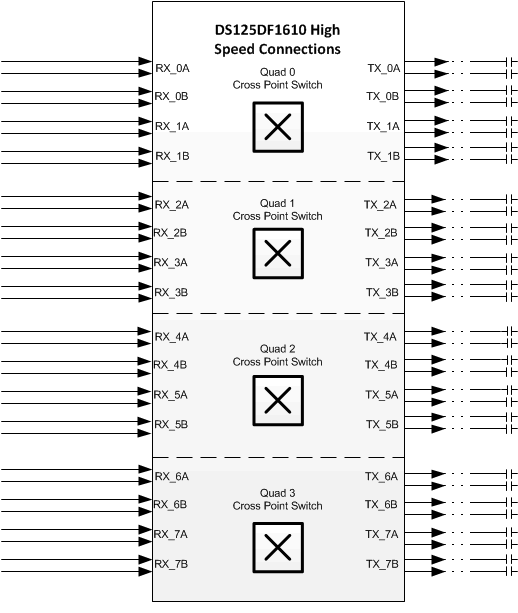

• Compare schematic against the typical connection diagrams in the datasheet, Figure 6 and Figure 7

8.2.3 Typical Application Performance Plots

Figure 8. Typical Transmit Eye Diagram, 10.3125 Gbps

Figure 9. FIR Transmit Equalization Example, 10.3125Gbps

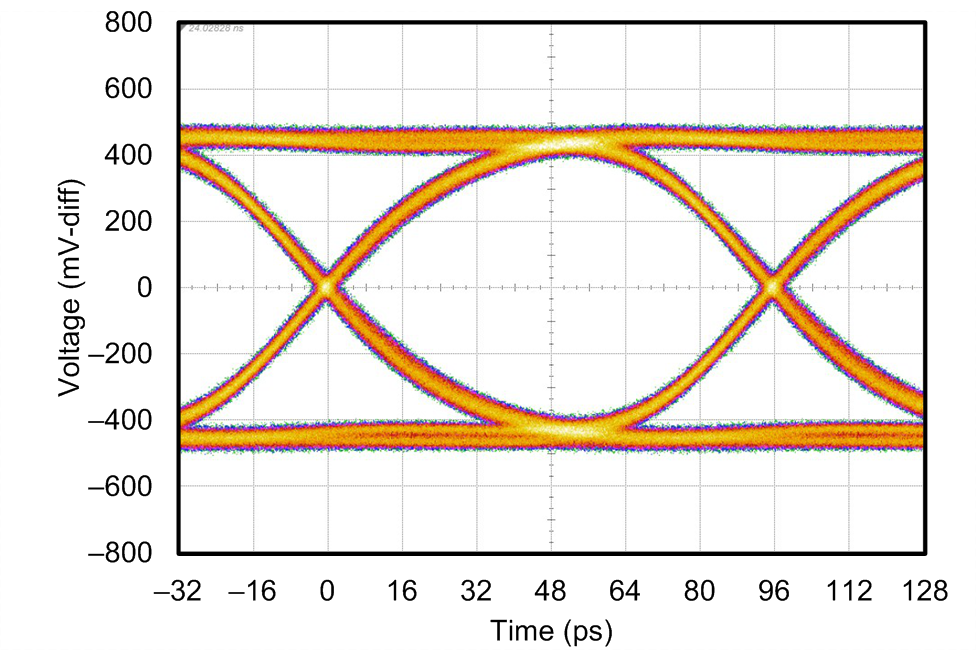

Figure 8 shows a typical output eye diagram for the DS125DF1610 operating at 10.3125 Gbps with the 1V_PP V_OD settings. All other device settings are left at default.

Figure 9 shows an example of FIR transmit equalization for a DS125DF1610 operating at 10.3125 Gbps. In this example, the high speed output is configured for 1V_PP V_OD. The FIR filter is then further adjusted such that the pre cursor tap is set to -5, the main cursor tap is set to +42, and the post cursor tap is set to -10. An 8T pattern is used to evaluate the FIR filter, which consists of 0xFF00. All other device settings are left at default.

8.3.1 Data Rate Selection (Rate/Sub-Rate Table)

The data rates for the DS125DF1610 must be known and programmed into each desired channel. The DS125DF1610 will only lock to programmed data rates and the programmed divider settings. For ease of use several common data rates have been preprogrammed into the DS125DF1610 along with the associated sub-rates for those various standards. These rate/sub-rate settings comprise the Rate/Sub-rate Table 18. Note that each channel operates independently, so different channels in the DS125DF1610 can operate at different data rates at the same time.

The Rate/Sub-rate Table 18 for the DS125DF1610 shown below includes all of the available preprogrammed data rates and associated divider groupings.

8.3.2 Data Rate Selection (Manual Programming)

The DS125DF1610 is capable of supporting any data rate within the specified range of 9.8 Gbps to 12.5 Gbps including the divide by 2, 4, and 8 sub-rates of this range. If it is desired to operate the DS125DF1610 at a data rate or data rate and sub-rate combination that is not available in the Rate/Sub-rate Table 18, then these desired data rates can be programmed into the device manually.

The following procedure describes how to calculate and manually program data rates into the DS125DF1610.

1. Select a divider grouping from the Rate/Sub-rate Table and program that value to channel register 0x2F. When manually programming the data rate into the device, other rate/sub-rate values may be used to allow for different divider and group combinations. A list of all preprogrammed divider, group combinations is shown in the Table 19 below.

Table 19. Divider Options

CHANNEL REGISTER 0x2F[7:4] SETTING	FIRST GROUP DIVIDER SETTINGS	SECOND GROUP DIVIDER SETTINGS
0x0	2, 4	2, 4
0x1	1	1
0x2	1, 2, 4	1, 2, 4
0x3	1, 2, 4	1, 2, 4
0x4	1	1
0x5	1	1
0x6	1	1
0x7	1, 2, 4	1, 2, 4
0x8	1, 2, 4	1, 2, 4
0x9	2, 4	2, 4
0xA	1, 2, 4	1, 2, 4
0xB	8	1
0xC	8	1
0xD	1, 2, 4	1
0xE	1	1
0xF	1, 2	1, 2

2. Calculate the first group settings:

Table 20. Manual Data Rate Configuration -- 1^STGroup Instructions

PARAMETER	VALUE/EQUATION	COMMENT
Reference Clock	F0 = 25e6	Internally the reference clock always operates at 25 MHz
Desired VCO Frequency	F1	F1 is the frequency of the VC0 which is equal to the desired data rate. If the desired data rate uses dividers, be sure to multiply the data rate by the divide setting to get the correct VCO frequency
Number of Reference Clocks	N = 1024
VCO Freq ÷ 32	F2 = F1 ÷ 32
Counts of VCO Freq ÷ 32 required	F3 = F2 x N ÷ F0
Counts of VCO Freq ÷ 32 required rounded	F4	Round F3 to the nearest integer value. Convert this value to binary. Program the upper 8 bits to ch register 0x61 and the lower 8 bits to ch register 0x60. Be sure to set channel register 0x61[7] to 1 to enable the override function for manual programming.
PPM error due to rounding	Err = 1e6 x (F4 – F3) ÷ F3
Required PPM tolerance	T	Enter the desired PPM tolerance
VCO Freq ÷ 32 +PPM tolerance	F5 = (1+ T÷1e6) * F2
Rounded Counts of the VCO Freq ÷ 32 +PPM tolerance required	F6 = F5 x N ÷ F0	Round F6 to the nearest integer value
PPM Counts delta	F7 = F6 – F3	Convert this value to binary. Program the most significant bit channel register 0x67[7] and the rest of the bits to channel register 0x64[7:4]

3. Calculate the second group settings:

Table 21. Manual Data Rate Configuration -- 2^ndGroup Instructions

PARAMETER	VALUE/EQUATION	COMMENT
Reference Clock	F0 = 25e6	Internally the reference clock always operates at 25 MHz
Desired VCO Frequency	F1	F1 is the frequency of the VC0 which is equal to the desired data rate. If the desired data rate uses dividers, be sure to multiply the data rate by the divide setting to get the correct VCO frequency
Number of Reference Clocks	N = 1024
VCO Freq ÷ 32	F2 = F1 ÷ 32
Counts of VCO Freq ÷ 32 required	F3 = F2 x N ÷ F0
Counts of VCO Freq ÷ 32 required rounded	F4	Round F3 to the nearest integer value. Convert this value to binary. Program the upper 8 bits to ch register 0x63 and the lower 8 bits to ch register 0x62. Be sure to set channel register 0x63[7] to 1 to enable the override function for manual programming.
PPM error due to rounding	Err = 1e6 x (F4 – F3) ÷ F3
Required PPM tolerance	T	Enter the desired PPM tolerance
VCO Freq ÷ 32 +PPM tolerance	F5 = (1+ T÷1e6) * F2
Rounded Counts of the VCO Freq ÷ 32 +PPM tolerance required	F6 = F5 x N ÷ F0	Round F6 to the nearest integer value
PPM Counts delta	F7 = F6 – F3	Convert this value to binary. Program the most significant bit channel register 0x67[6] and the rest of the bits to channel register 0x64[3:0]

An example for setting group 0 and group 1 to 11.3 Gbps is shown in the Table 22 below.
