7.3.1 PWM Motor Driver

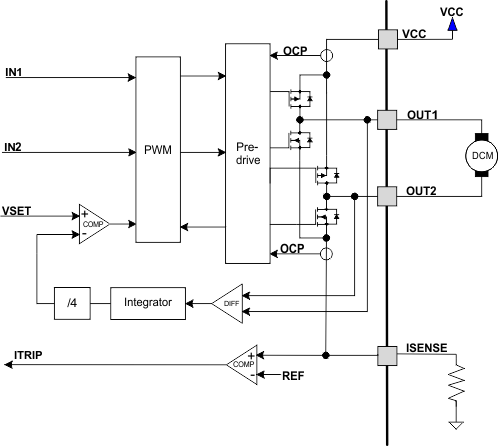

The DRV8832-Q1 contains an H-bridge motor driver with PWM voltage-control circuitry with current limit circuitry. See Figure 7 for a block diagram of the motor control circuitry.
Figure 7. Motor Control Circuitry
