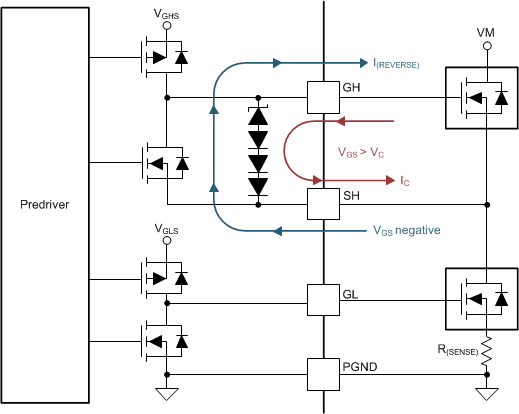

A clamping structure limits the gate-drive output voltage to the VC(GS) voltage to protect the power FETs from damage. The positive voltage clamp is realized using a series of diodes. The negative voltage clamp uses the body diodes of the internal predriver FET.
Figure 44. Gate Drive Clamp
