8.3.4.1 Bidirectional Current Sense Operation
The SOx pin on the DRV8353 and DRV8353R outputs an analog voltage equal to the voltage across the SPx and SNx pins multiplied by the gain setting (GCSA). The gain setting is adjustable between four different levels (5 V/V, 10 V/V, 20 V/V, and 40 V/V). Use Equation 3 to calculate the current through the shunt resistor.
Equation 3.

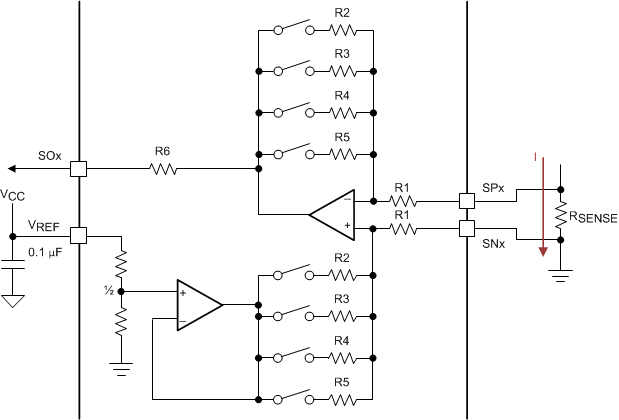

Figure 41. Bidirectional Current-Sense Configuration

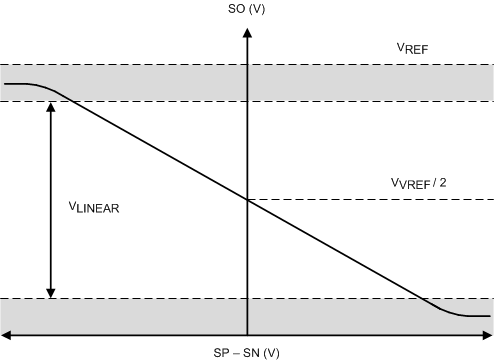

Figure 42. Bidirectional Current-Sense Output

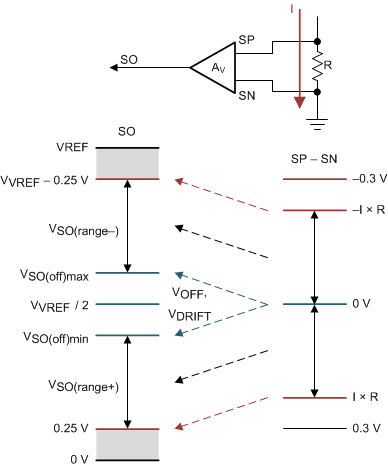

Figure 43. Bidirectional Current Sense Regions
