3 說明
DRV835x 系列器件均為高度集成的柵極驅動器，適用于三相無刷直流 (BLDC) 電機 應用標準。這些 應用 包括 BLDC 電機的場定向控制 (FOC)、正弦電流控制和梯形電流控制。該器件型號提供了可選的集成式分流放大器以支持不同的電機控制方案，還提供了降壓穩壓器，以為柵極驅動器或外部控制器供電。
DRV835x 通過采用智能柵極驅動 (SGD) 架構減少了 MOSFET 壓擺率控制和保護電路通常所需要的外部組件數量。SGD 架構還可優化死區時間以防止擊穿問題，在通過 MOSFET 壓擺率控制技術降低電磁干擾 (EMI) 方面帶來了靈活性，并可通過 VGS 監控器防止柵極短路問題。強大的柵極下拉電路有助于防止不必要的 dV/dt 寄生柵極開啟事件。
該系列器件支持各種 PWM 控制模式（6x、3x、1x 和獨立模式），可簡化與外部控制器的連接。這些模式可減少電機驅動器 PWM 控制信號所需的控制器輸出數量。該系列器件還包括 1x PWM 模式，因此可通過內部阻塞換向表輕松對 BLDC 電機進行傳感器式梯形控制。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| DRV8350 | WQFN (32) | 5.00mm × 5.00mm |
| DRV8350R | VQFN (48) | 7.00mm × 7.00mm |
| DRV8353 | WQFN (40) | 6.00mm × 6.00mm |
| DRV8353R | VQFN (48) | 7.00mm × 7.00mm |
- 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

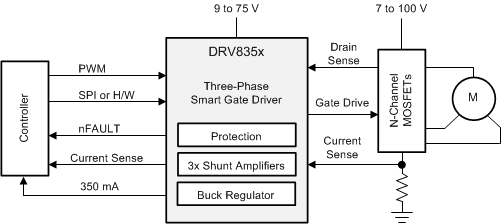

簡化原理圖
