ZHCSFD6G july 2016 – august 2023 DP83822H , DP83822HF , DP83822I , DP83822IF
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Device Comparison Table
- 6 Pin Configuration and Functions
-
7 Specifications
- 7.1 Absolute Maximum Ratings
- 7.2 ESD Ratings
- 7.3 Recommended Operating Conditions
- 7.4 Thermal Information
- 7.5 Electrical Characteristics
- 7.6 Timing Requirements, Power-Up Timing
- 7.7 Timing Requirements, Power-Up With Unstable XI Clock
- 7.8 Timing Requirements, Reset Timing
- 7.9 Timing Requirements, Serial Management Timing
- 7.10 Timing Requirements, 100 Mbps MII Transmit Timing
- 7.11 Timing Requirements, 100 Mbps MII Receive Timing
- 7.12 Timing Requirements, 10 Mbps MII Transmit Timing
- 7.13 Timing Requirements, 10 Mbps MII Receive Timing
- 7.14 Timing Requirements, RMII Transmit Timing
- 7.15 Timing Requirements, RMII Receive Timing
- 7.16 Timing Requirements, RGMII
- 7.17 Normal Link Pulse Timing
- 7.18 Auto-Negotiation Fast Link Pulse (FLP) Timing
- 7.19 10BASE-Te Jabber Timing
- 7.20 100BASE-TX Transmit Latency Timing
- 7.21 100BASE-TX Receive Latency Timing
- 7.22 Timing Diagrams
- 7.23 Typical Characteristics
-
8 Detailed Description
- 8.1 Overview
- 8.2 Functional Block Diagram
- 8.3 Feature Description
- 8.4
Device Functional Modes
- 8.4.1 MAC Interfaces
- 8.4.2
Serial Management Interface
- 8.4.2.1 Extended Register Space Access
- 8.4.2.2 Write Address Operation
- 8.4.2.3 Read Address Operation
- 8.4.2.4 Write (No Post Increment) Operation
- 8.4.2.5 Read (No Post Increment) Operation
- 8.4.2.6 Write (Post Increment) Operation
- 8.4.2.7 Read (Post Increment) Operation
- 8.4.2.8 Example Write Operation (No Post Increment)
- 8.4.2.9 Example Read Operation (No Post Increment)
- 8.4.3 100BASE-TX
- 8.4.4 100BASE-FX
- 8.4.5 10BASE-Te
- 8.4.6 Auto-Negotiation (Speed / Duplex Selection)
- 8.4.7 Auto-MDIX Resolution
- 8.4.8 Loopback Modes
- 8.4.9 BIST Configurations
- 8.4.10 Cable Diagnostics
- 8.4.11 Fast Link Down Functionality
- 8.5 Programming
- 8.6 Register Maps
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
3 說明
DP83822 是一款超穩健、低功耗單端口 10/100Mbps 以太網 PHY，旨在用于惡劣的工業環境。DP83822 提供通過標準雙絞線電纜發送和接收數據或者連接到外部光纖收發器所需的所有物理層功能。此外，DP83822 還可通過標準 MII、RMII 或 RGMII 接口靈活地連接到 MAC。
為了便于使用，DP83822 提供了集成電纜診斷工具、內置自檢和環回功能。該器件能夠憑借其快速下行鏈路檢測和強制模式下的自動 MDIX 功能支持多條工業現場總線。
DP83822 提供了一種出色的可靠方案來降低功耗，具體將通過 EEE、WoL 和其他可編程節能模式來實現。
DP83822 是一個功能豐富的引腳到引腳可升級選項，適用于 TLK105、TLK106、TLK105L 和 TLK106L 10/100 Mbps 以太網 PHY。
DP83822 采用 32 引腳 5.00mm × 5.00mm VQFN 封裝。
器件信息
| 器件型號 | 封裝 (1) | 封裝尺寸（標稱值） |
|---|---|---|
| DP83822HF | VQFN (32) | 5.00mm × 5.00mm |
| DP83822H | VQFN (32) | 5.00mm × 5.00mm |
| DP83822IF | VQFN (32) | 5.00mm × 5.00mm |
| DP83822I | VQFN (32) | 5.00mm × 5.00mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

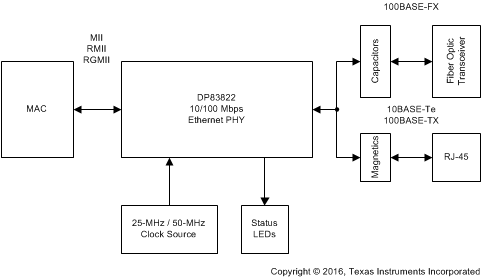

簡化原理圖
