8.3.10 Power-Up Characteristics
The DCV01 series of devices do not include a soft-start feature. Therefore, a high in-rush current during power-up is expected. To ensure a more stable start-up, allow the input voltage to be in regulation before enabling the device. Refer to the Section 8.4.1 section on how to disable/enable the device. Figure 8-6 shows the typical start-up waveform for a DCV010505P when enabled after the input voltage is in regulation. Figure 8-3 shows the typical start-up waveform for a DCV010505P, operating from a 5-V input with no load on the output. Figure 8-4 shows the start-up waveform for a DCV010505P starting up into a 10% load. Figure 8-5 shows the start-up waveform starting up into a full (100%) load.

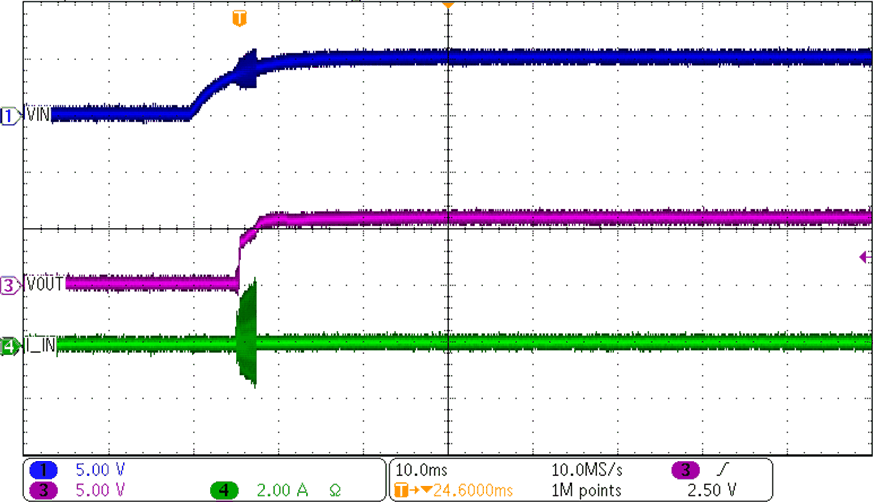

Figure 8-3 DCV010505P Start-Up at No Load

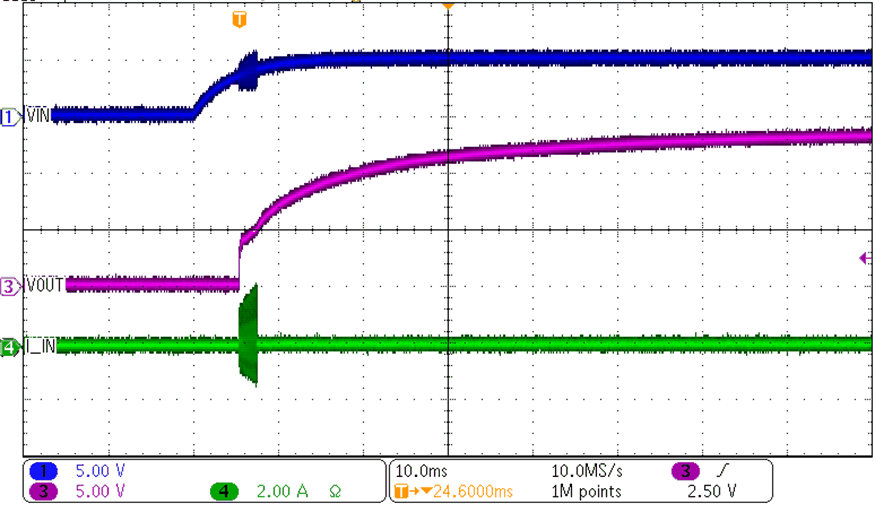

Figure 8-5 DCV010505P Start-Up at 100% Load

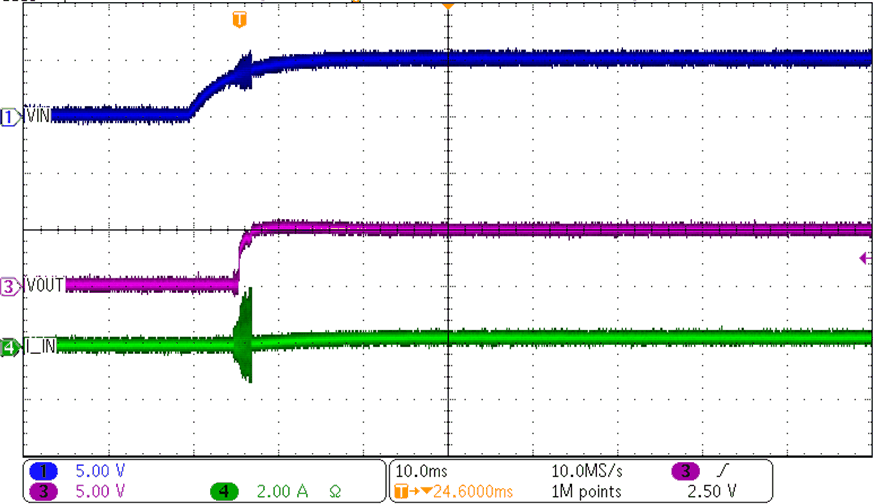

Figure 8-4 DCV010505P Start-Up at 10% Load

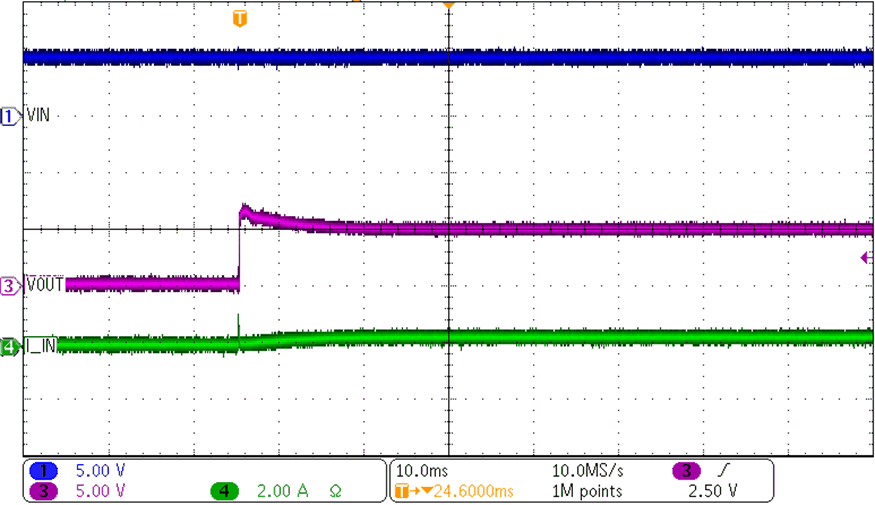

Figure 8-6 DCV010505P Enable Start-Up at 100% Load
