8.4.2.2 Connecting the DCV01 in Series
Multiple DCV01 devices can be connected in series to provide non-standard voltage rails. This configuration is possible by using the floating outputs provided by the galvanic isolation of the DCV01.

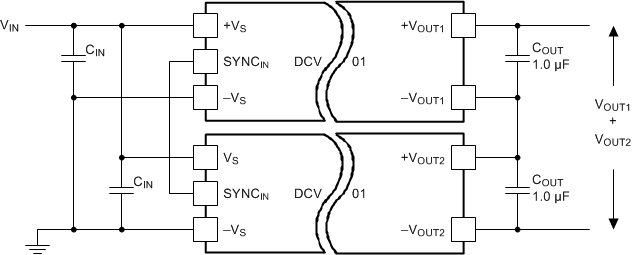

Connect the +VOUT from one DCV01 to the –VOUT of another (see Figure 8-7). If the SYNCIN pins are tied together, the self-synchronization feature of the DCV01 prevents beat frequencies on the voltage rails. The synchronization feature of the DCV01 allows easy series connection without external filtering, thus minimizing cost.

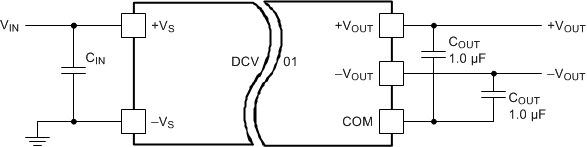

Figure 8-7 Multiple DCV01 Devices Connected in SeriesThe outputs of a dual-output DCV01 can also be connected in series to provide two times the magnitude of +VOUT, as shown in Figure 8-8. For example, connect a dual-output, 15-V, DCP012415D device to provide a 30-V rail.
Figure 8-8 Dual Output Devices Connected in Series
