5.3 Typical MOSFET Characteristics
TA = 25°C (unless otherwise stated)

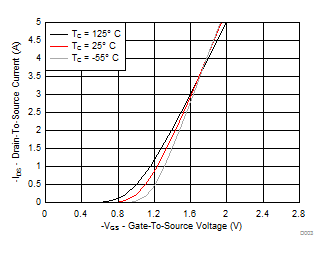

Figure 5-1 Saturation Characteristics

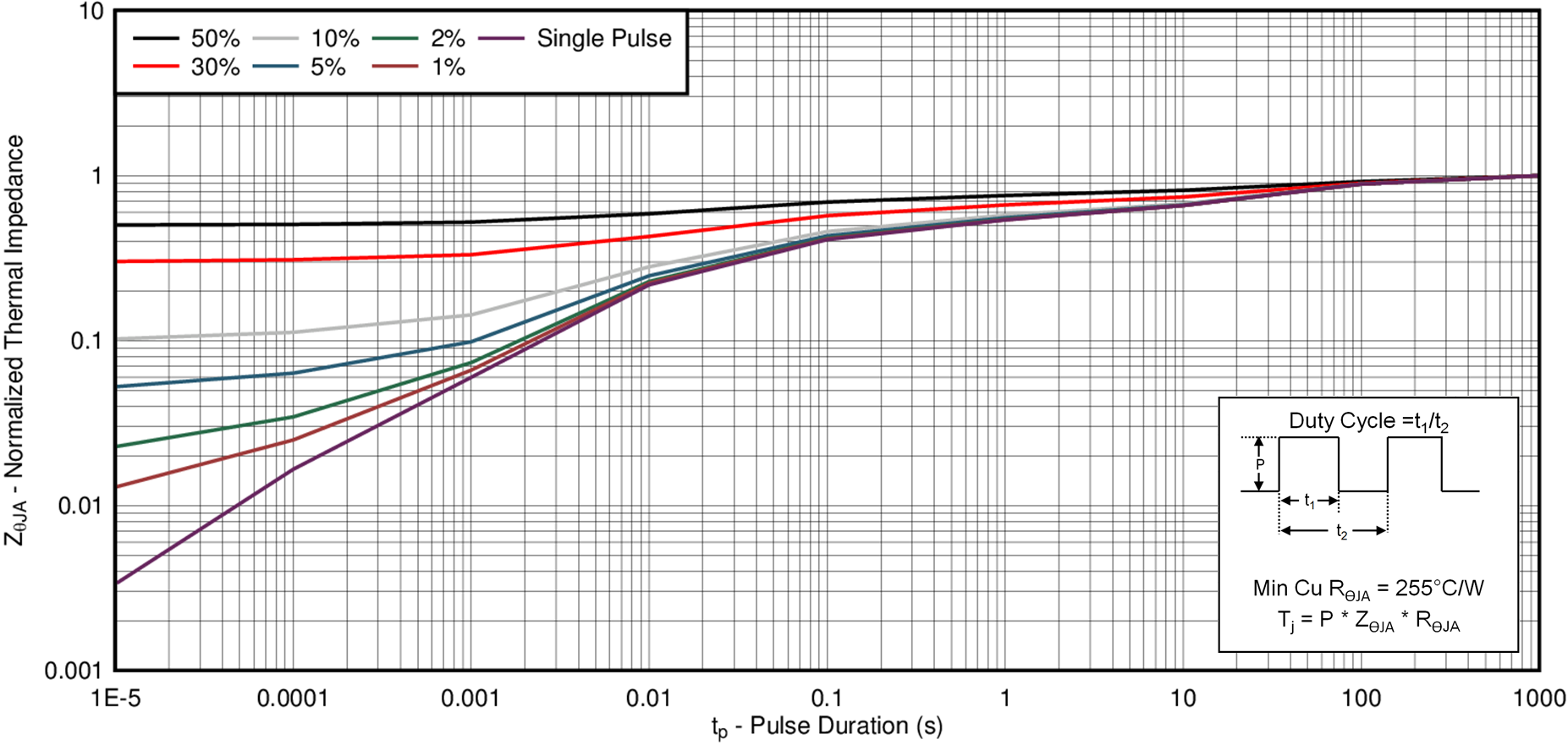

Figure 5-3 Transient Thermal Impedance
| VDS = –5 V | ||
| VDS = –6 V | ID = –0.4 A | ||
| ID = –250 μA | ||
| VGS = –4.5 V | ID = –0.4 A | ||
| Single pulse, max RθJA = 255°C/W | ||

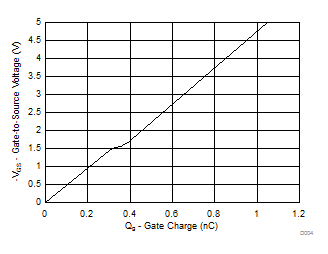

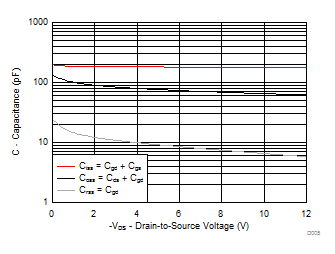

Figure 5-5 Capacitance

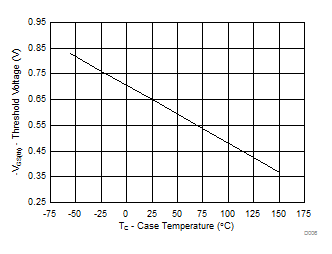

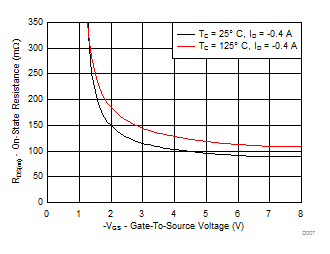

Figure 5-7 On-State Resistance vs Gate-to-Source Voltage

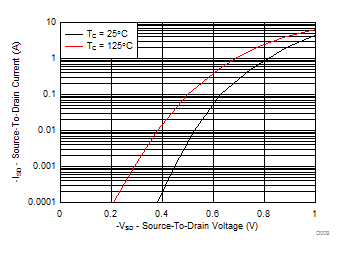

Figure 5-9 Typical Diode Forward Voltage

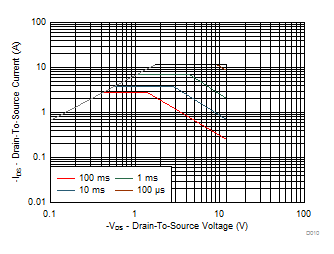

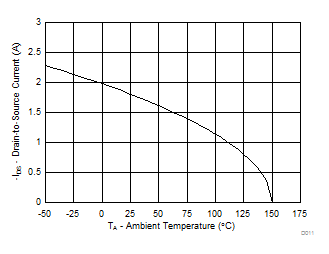

Figure 5-11 Maximum Drain Current vs Temperature
