ZHCSVX6C January 2004 – April 2024 CD74HCT4051-Q1
PRODUCTION DATA
- 1
- 1特性
- 2應用
- 3說明
- 4Pin Configuration and Functions
- 5Specifications
- 6Parameter Measurement Information
- 7Device and Documentation Support
- 8Revision History
- 9Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- D|16
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
4 Pin Configuration and Functions

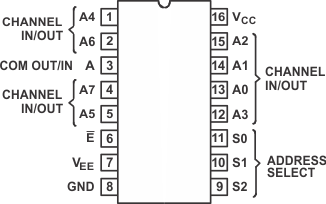

Figure 4-1 D Package, 16-Pin SOIC (Top
View)|
INPUTS |
ON CHANNELS |
|||
|---|---|---|---|---|
|
ENABLE |
S2 |
S1 |
S0 |
|
|
L |
L |
L |
L |
A0 |
|
L |
L |
L |
H |
A1 |
|
L |
L |
H |
L |
A2 |
|
L |
L |
H |
H |
A3 |
|
L |
H |
L |
L |
A4 |
|
L |
H |
L |
H |
A5 |
|
L |
H |
H |
L |
A6 |
|
L |
H |
H |
H |
A7 |
|
H |
X |
X |
X |
None |
