ZHCSJS2N November 1997 – April 2024 CD54HC4051 , CD54HC4052 , CD54HC4053 , CD54HCT4051 , CD74HC4051 , CD74HC4052 , CD74HC4053 , CD74HCT4051 , CD74HCT4052 , CD74HCT4053
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Thermal Information
- 5.4 Recommended Operating Conditions
- 5.5 Electrical Characteristics: HC Devices
- 5.6 Electrical Characteristics: HCT Devices
- 5.7 Switching Characteristics, VCC = 5V
- 5.8 Switching Characteristics, CL = 50pF
- 5.9 Analog Channel Specifications
- 5.10 Typical Characteristics
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- J|16
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
5.10 Typical Characteristics
Figure 5-1 Recommended Operating Area
as a Function of (VCC - VEE).

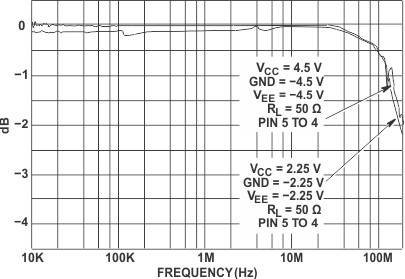

Figure 5-3 Channel ON Bandwidth (HC and HCT4051)

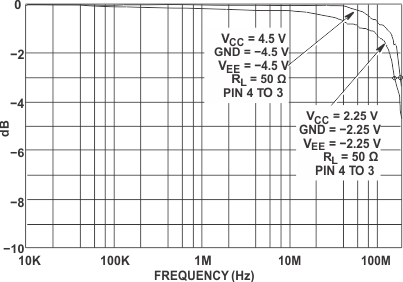

Figure 5-5 Channel ON Bandwidth (HC and HCT4052)

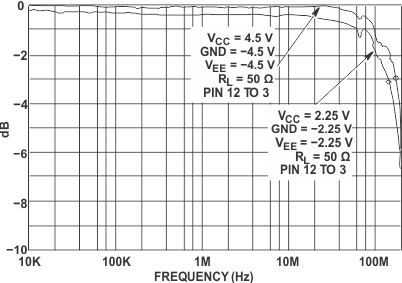

Figure 5-7 Channel ON Bandwidth (HC and HCT4053)
Figure 5-2 Recommended Operating Area
as a Function of (VCC - GND).

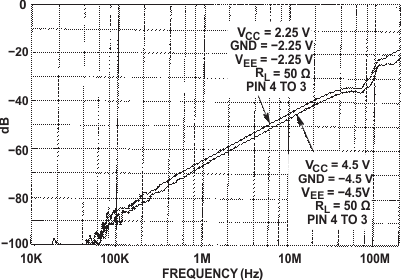

Figure 5-4 Channel OFF Feedthrough (HC and HCT4051)

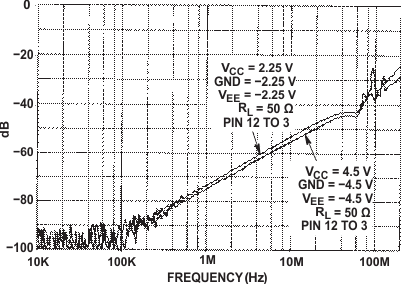

Figure 5-6 Channel OFF Feedthrough (HC and HCT4052)

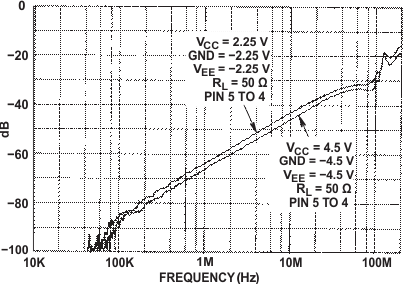

Figure 5-8 Channel OFF Feedthrough (HC and HCT4053)
