6.11.6 Port P5 (P5.0 and P5.1) Input/Output With Schmitt Trigger
Figure 6-9 and Figure 6-10 show the port diagrams. Table 6-50 summarizes the selection of the pin functions.

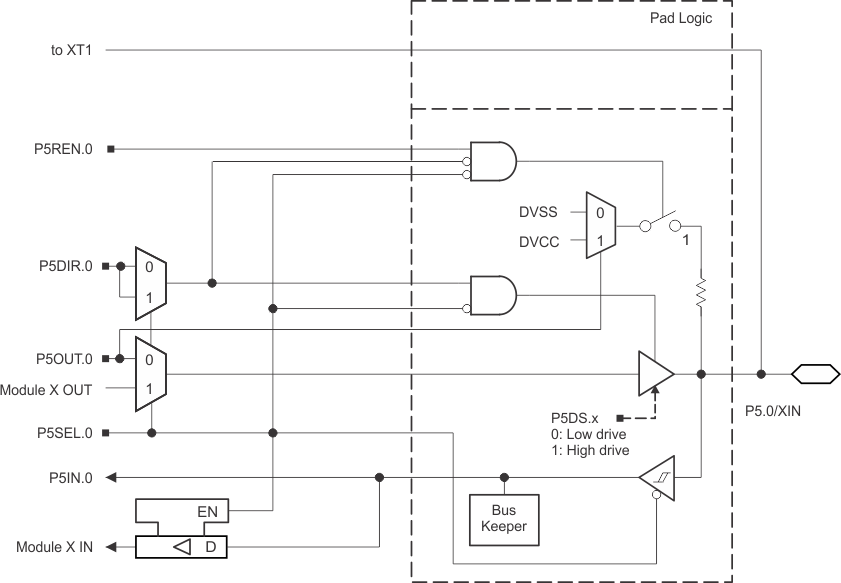

Figure 6-9 Port P5 (P5.0) Diagram

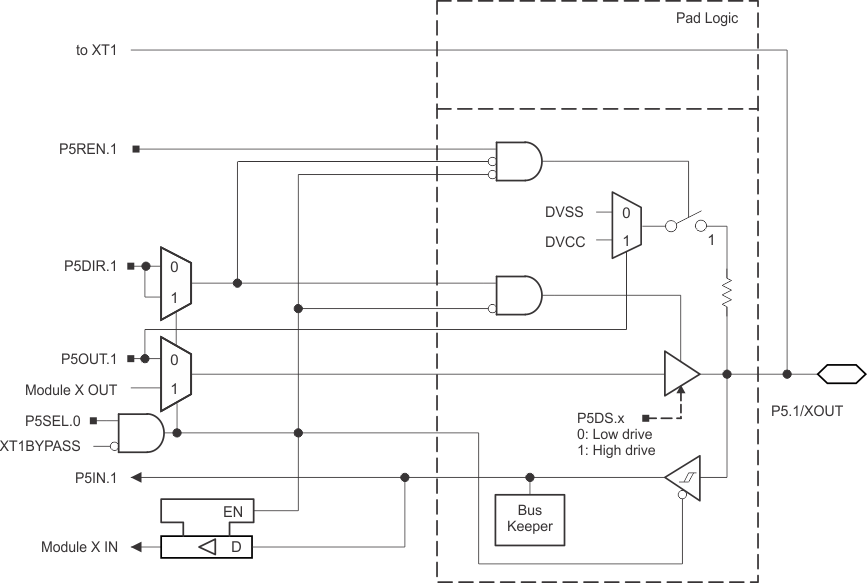

Figure 6-10 Port P5 (P5.1) Diagram Table 6-50 Port P5 (P5.0 and P5.1) Pin Functions
| PIN NAME (P5.x) | x | FUNCTION | CONTROL BITS OR SIGNALS(1) | |||
|---|---|---|---|---|---|---|
| P5DIR.x | P5SEL.0 | P5SEL.1 | XT1BYPASS | |||
| P5.0/XIN | 0 | P5.0 (I/O) | I: 0; O: 1 | 0 | X | X |
| XIN crystal mode(1) | X | 1 | X | 0 | ||
| XIN bypass mode(1) | X | 1 | X | 1 | ||
| P5.1/XOUT | 1 | P5.1 (I/O) | I: 0; O: 1 | 0 | X | X |
| XOUT crystal mode(2) | X | 1 | X | 0 | ||
| P5.1 (I/O)(2) | X | 1 | X | 1 | ||
(1) Setting P5SEL.0 causes the general-purpose I/O to be disabled. Pending the setting of XT1BYPASS, P5.0 is configured for crystal mode or bypass mode.
(2) Setting P5SEL.0 causes the general-purpose I/O to be disabled in crystal mode. When using bypass mode, P5.1 can be used as general-purpose I/O.
