6.11.1 Port P1 (P1.0 to P1.4) Input/Output With Schmitt Trigger
Figure 6-2 shows the port diagram. Table 6-45 summarizes the selection of the pin functions.
CC430F513x devices do not provide LCD functionality on port P1 pins.

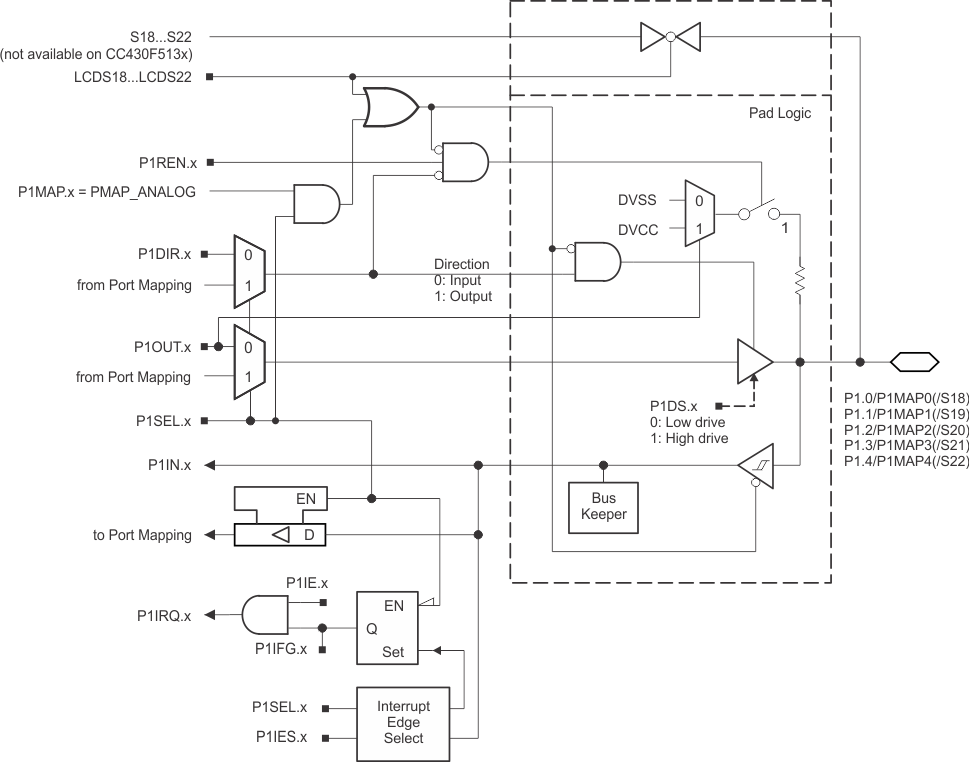

Figure 6-2 Port P1 (P1.0 to P1.4) Diagram Table 6-45 Port P1 (P1.0 to P1.4) Pin Functions
| PIN NAME (P1.x) | x | FUNCTION | CONTROL BITS OR SIGNALS(1) | |||
|---|---|---|---|---|---|---|
| P1DIR.x | P1SEL.x | P1MAPx | LCDS18 to LCDS22(2) | |||
| P1.0/P1MAP/S18 | 0 | P1.0 (I/O) | I: 0; O: 1 | 0 | X | 0 |
| Mapped secondary digital function – see Table 6-6 | 0; 1(3) | 1 | ≤ 30(3) | 0 | ||
| Output driver and input Schmitt trigger disabled | X | 1 | = 31 | 0 | ||
| S18 (not available on CC430F513x) | X | X | X | 1 | ||
| P1.1/P1MAP1/S19 | 1 | P1.1 (I/O) | I: 0; O: 1 | 0 | X | 0 |
| Mapped secondary digital function – see Table 6-6 | 0; 1(3) | 1 | ≤ 30(3) | 0 | ||
| Output driver and input Schmitt trigger disabled | X | 1 | = 31 | 0 | ||
| S19 (not available on CC430F513x) | X | X | X | 1 | ||
| P1.2/P1MAP2/S20 | 2 | P1.2 (I/O) | I: 0; O: 1 | 0 | X | 0 |
| Mapped secondary digital function – see Table 6-6 | 0; 1(3) | 1 | ≤ 30(3) | 0 | ||
| Output driver and input Schmitt trigger disabled | X | 1 | = 31 | 0 | ||
| S22 (not available on CC430F513x) | X | X | X | 1 | ||
| P1.3/P1MAP3/S21 | 3 | P1.3 (I/O) | I: 0; O: 1 | 0 | X | 0 |
| Mapped secondary digital function – see Table 6-6 | 0; 1(3) | 1 | ≤ 30(3) | 0 | ||
| Output driver and input Schmitt trigger disabled | X | 1 | = 31 | 0 | ||
| S21 (not available on CC430F513x) | X | X | X | 1 | ||
| P1.4/P1MAP4/S22 | 4 | P1.4 (I/O) | I: 0; O: 1 | 0 | X | 0 |
| Mapped secondary digital function – see Table 6-6 | 0; 1(3) | 1 | ≤ 30(3) | 0 | ||
| Output driver and input Schmitt trigger disabled | X | 1 | = 31 | 0 | ||
| S22 (not available on CC430F513x) | X | X | X | 1 | ||
(1) X = don't care
(2) LCDSx not available in CC430F513x.
(3) According to mapped function – see Table 6-6.
