7.12 SMBus Timing Specifications
VCC = 2.4 V to 2.6 V, TA = –40°C to 85°C (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | NOM | MAX | UNIT | |
|---|---|---|---|---|---|---|
| fSMB | SMBus operating frequency | SLAVE mode, SMBC 50% duty cycle | 10 | 100 | kHz | |
| fMAS | SMBus master clock frequency | MASTER mode, no clock low slave extend | 51.2 | kHz | ||
| tBUF | Bus free time between start and stop | 4.7 | µs | |||
| tHD:STA | Hold time after (repeated) start | 4 | µs | |||
| tSU:STA | Repeated start setup time | 4.7 | µs | |||
| tSU:STO | Stop setup time | 4 | µs | |||
| tHD:DAT | Data hold time | RECEIVE mode | 0 | ns | ||
| TRANSMIT mode | 300 | |||||
| tSU:DAT | Data setup time | 250 | ||||
| tTIMEOUT | Error signal/detect | See note(1) | 25 | 35 | ms | |
| tLOW | Clock low period | 4.7 | µs | |||
| tHIGH | Clock high period | See note(2) | 4 | 50 | ||
| tLOW:SEXT | Cumulative clock low slave extend time | See note(3) | 25 | ms | ||
| tLOW:MEXT | Cumulative clock low master extend time | See note(4) | 10 | |||
| tF | Clock/data fall time | (VILMAX – 0.15 V) to (VIHMIN + 0.15 V) | 300 | ns | ||
| tR | Clock/data rise time | 0.9 VCC to (VILMAX – 0.15 V) | 1000 | |||
(1) The bq78350-R1 device times out when any clock low exceeds tTIMEOUT.
(2) tHIGH:MAX is minimum bus idle time. SMBC = 1 for t > 50 μs causes a reset of any transaction in progress involving the bq78350-R1 device.
(3) tLOW:SEXT is the cumulative time a slave device is allowed to extend the clock cycles in one message from initial start to stop.
(4) tLOW:MEXT is the cumulative time a master device is allowed to extend the clock cycles in one message from initial start to stop.

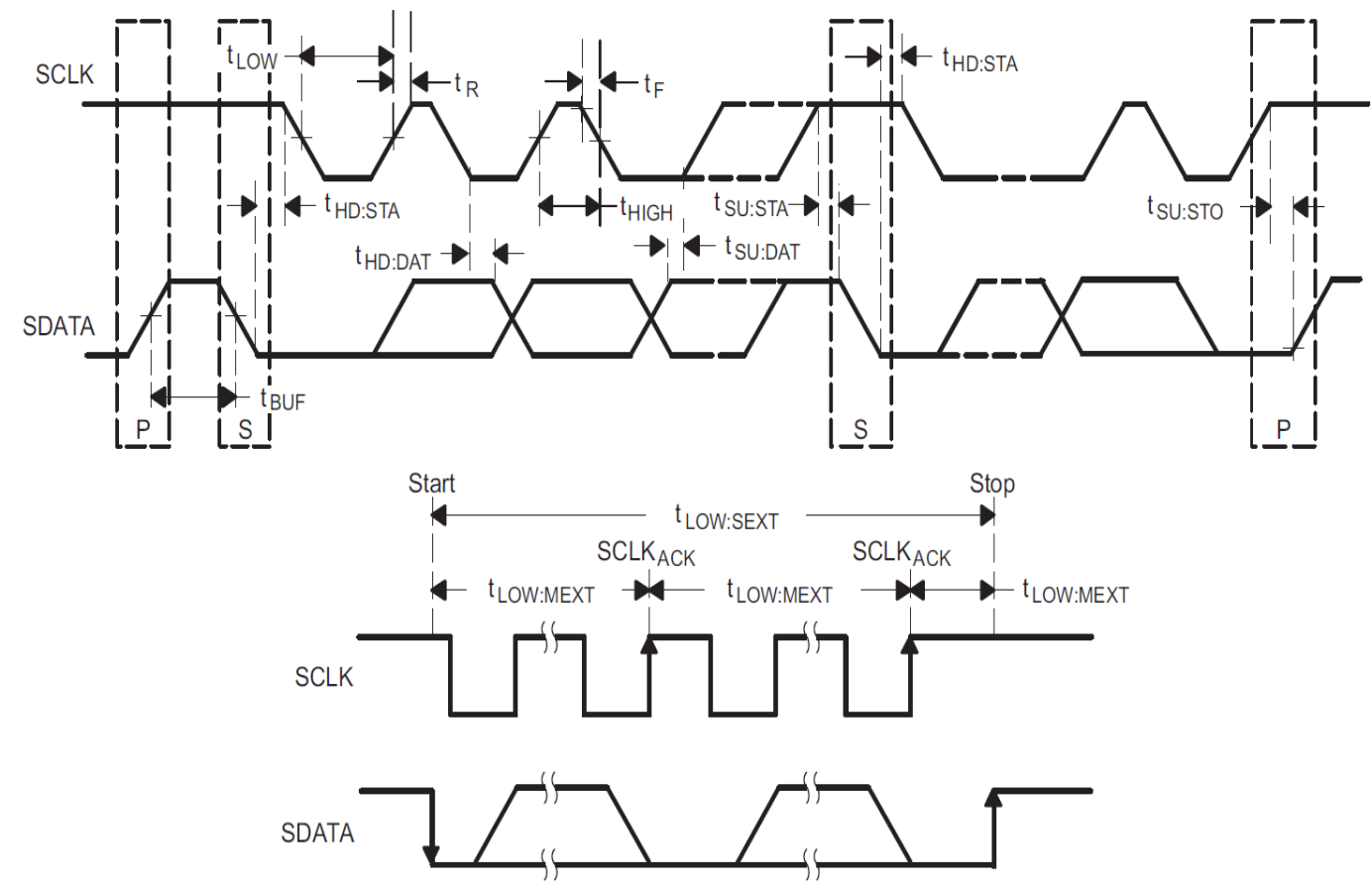

Figure 1. SMBus Timing Diagram
