7.6 Typical Characteristics

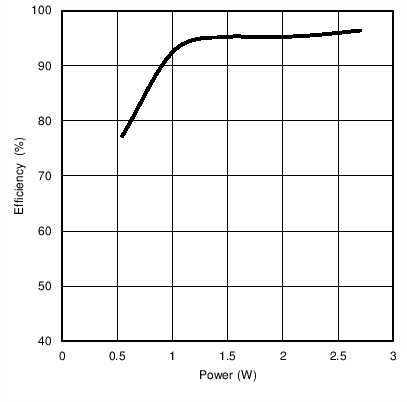

Figure 1. Rectifier Efficiency

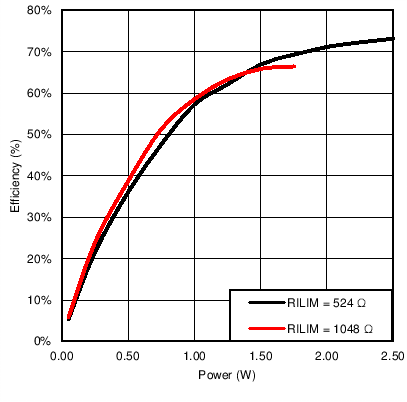

Figure 3. Light Load System Efficiency Improvement Due to Dynamic Efficiency Scaling Feature

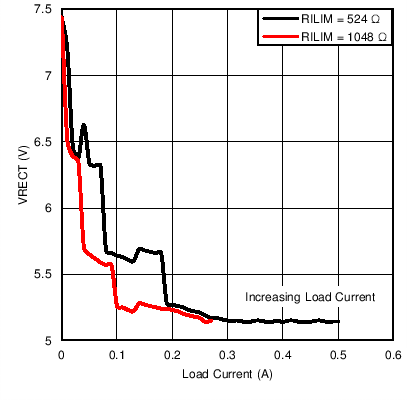

Figure 5. VRECT vs ILOAD at RILIM = 524 Ω and 1048 Ω

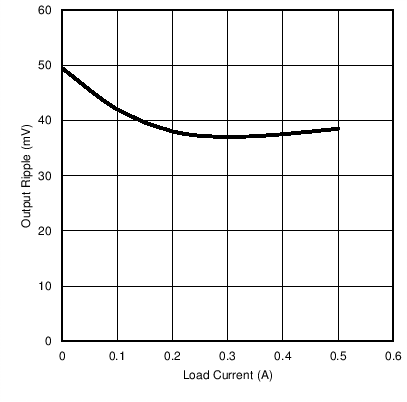

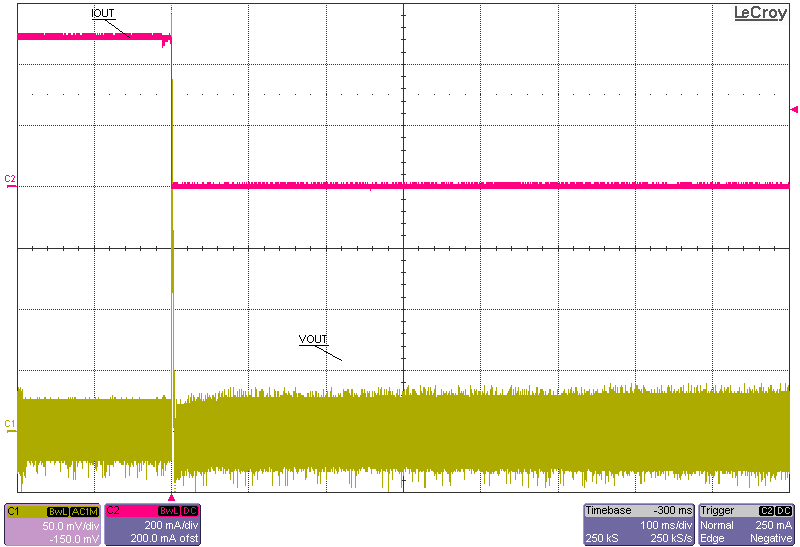

Figure 7. Output Ripple vs ILOAD (COUT = 1 µF) Without Communication
Figure 9. 0.5-A Instantaneous Load Dump
Figure 11. 0.5-A Load Dump Full System Response

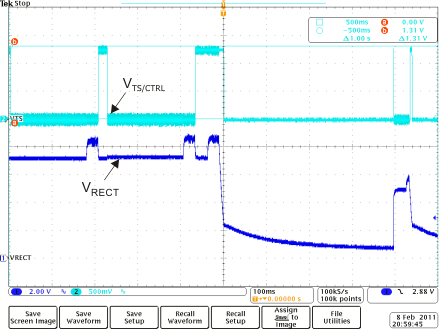

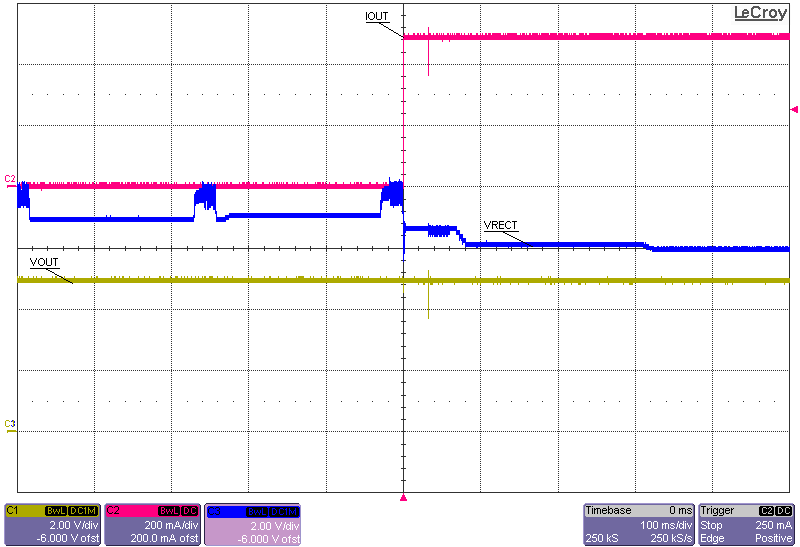

Figure 13. TS Fault

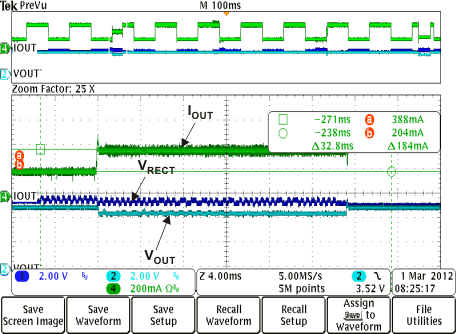

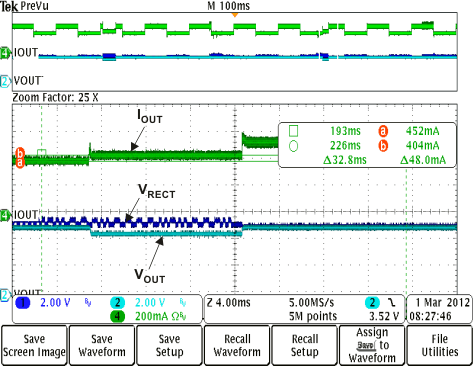

Figure 15. Adaptive Communication Limit Event Where the Current Limit is IOUT + 50 mA (IOUT-DC > 300 mA)

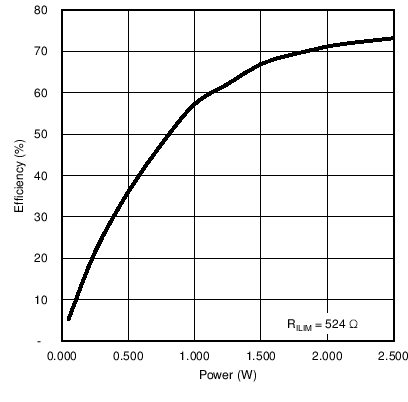

Figure 2. System Efficiency from DC Input to DC Output

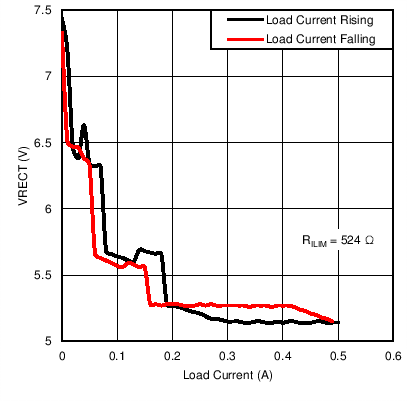

Figure 4. VRECT vs ILOAD at RILIM = 524 Ω
Figure 6. ILOAD Sweep (I-V Curve)

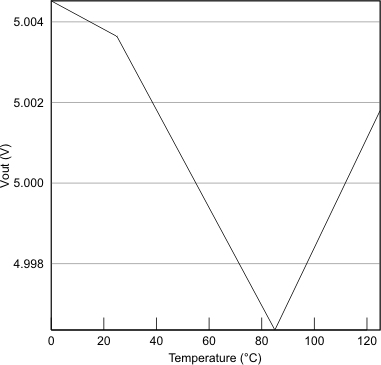

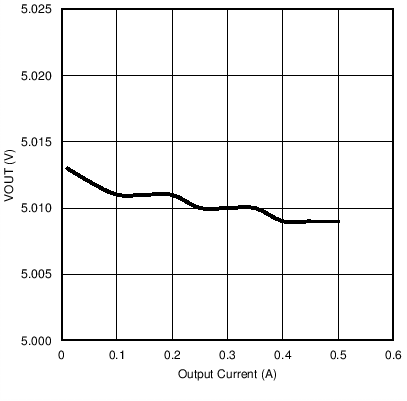

Figure 8. VOUT vs Temperature
Figure 10. 0.5-A Load Step Full System Response

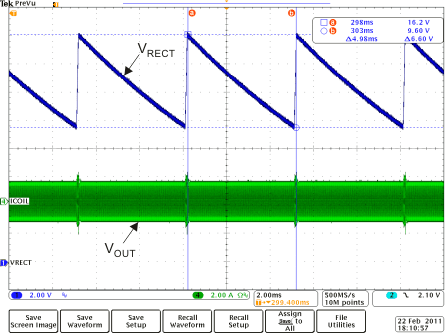

Figure 12. Rectifier Overvoltage Clamp (fop = 110 kHz)

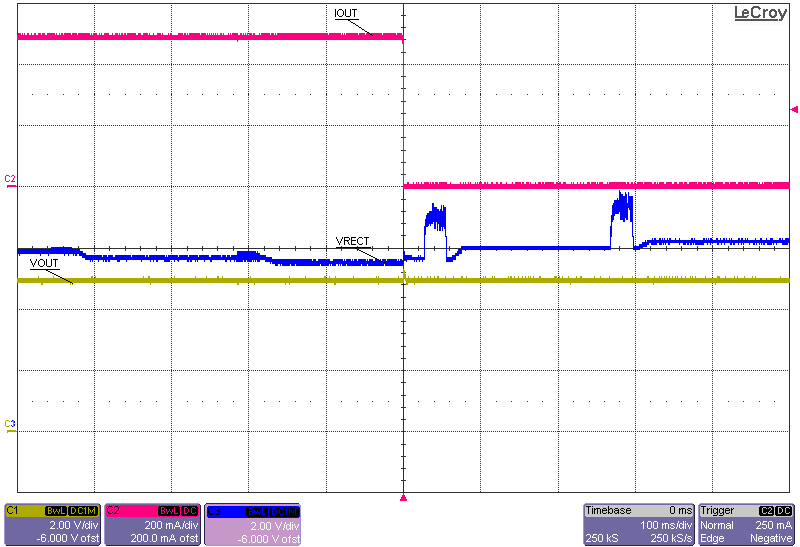

Figure 14. Adaptive Communication Limit Event Where the 400-mA Current Limit is Enabled (IOUT-DC < 300 mA)

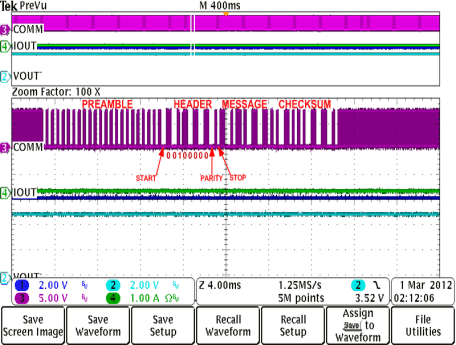

Figure 16. Rx Communication Packet Structure
