9.3.6.2 Battery Charging Profile
The device charges the battery in five phases: battery short, preconditioning, constant current, constant voltage and top-off trickle charging (optional). At the beginning of a charging cycle, the device checks the battery voltage and regulates current and voltage accordingly.
Resistance between charger output and battery cell terminal such as board routing, connector, MOSFETs and sense resistor can force the charging process to move from constant current to constant voltage too early and increase charge time. To speed up the charging cycle, the device provides BATSNS pin to extend the constant current charge time to delivery maximum power to battery. BATSNS pin is connected directly to battery cell terminal to remotely sense battery cell voltage. BATSNS is by default enabled, and can be disabled through BATSNS_DIS bit. If BATSNS is connected to GND or left floating, the charger regulates BAT pin instead.
| VBAT | CHARGING CURRENT | DEFAULT SETTING | CHRG_STAT |
|---|---|---|---|
| < 2.2 V | IBAT_SHORT | 100 mA | 01 |
| 2.2 V to 3 V | IPRECHG | 180 mA | 01 |
| > 3 V | ICHG | 1020 mA | 10 |

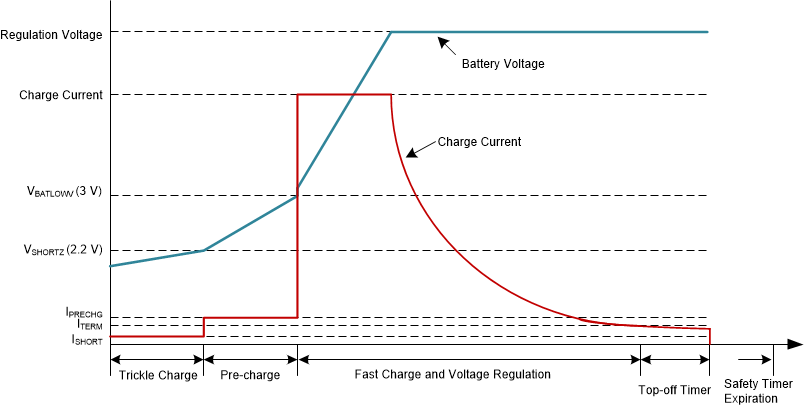

Figure 9-4 Battery Charging Profile
