8.2.1.3 應用曲線
CIN = 1μF，COUT = 1μF，CSC = 25F，VIN = 5V（除非另有說明）

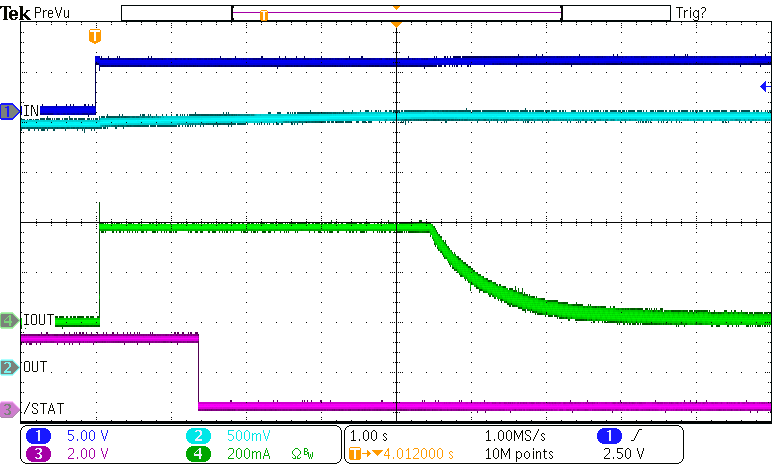

ICHG = 400mA |

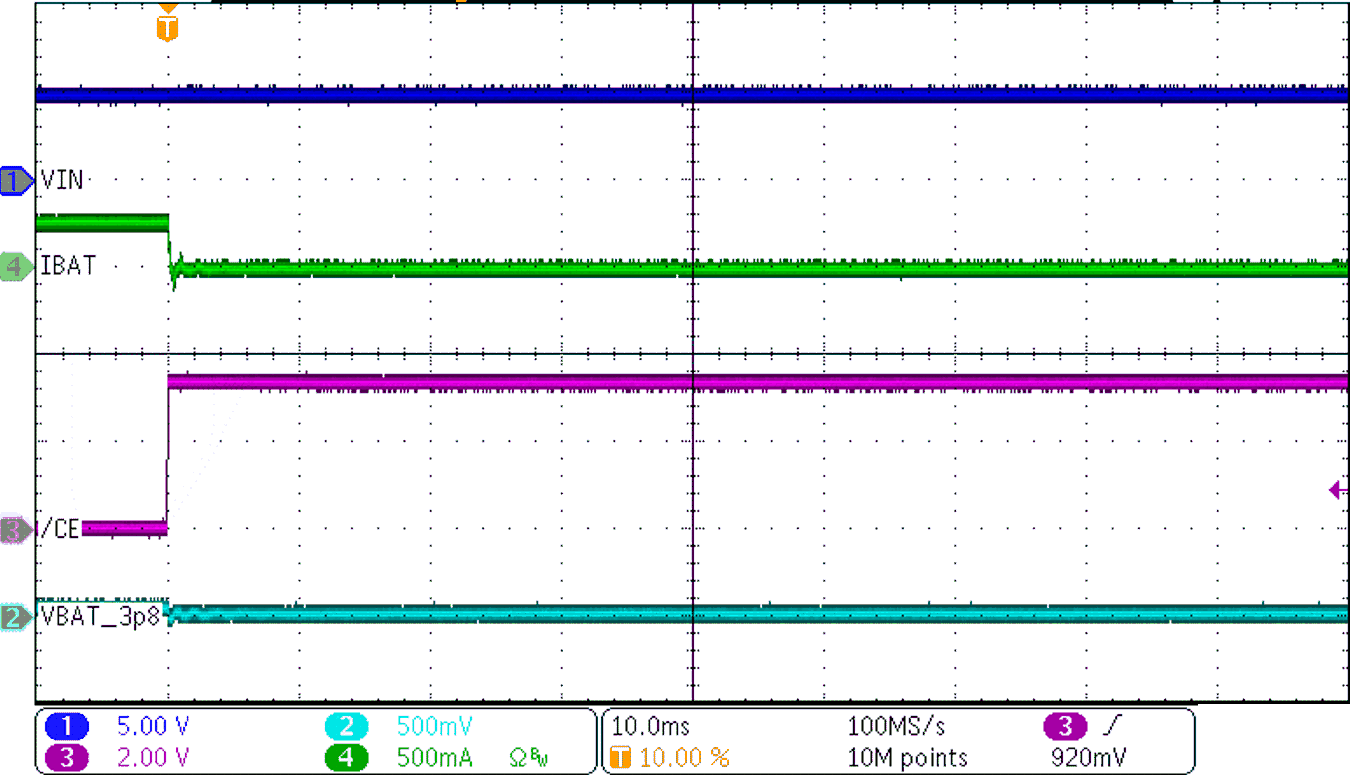

| /CE 拉至高電平 | ICHG = 250mA |

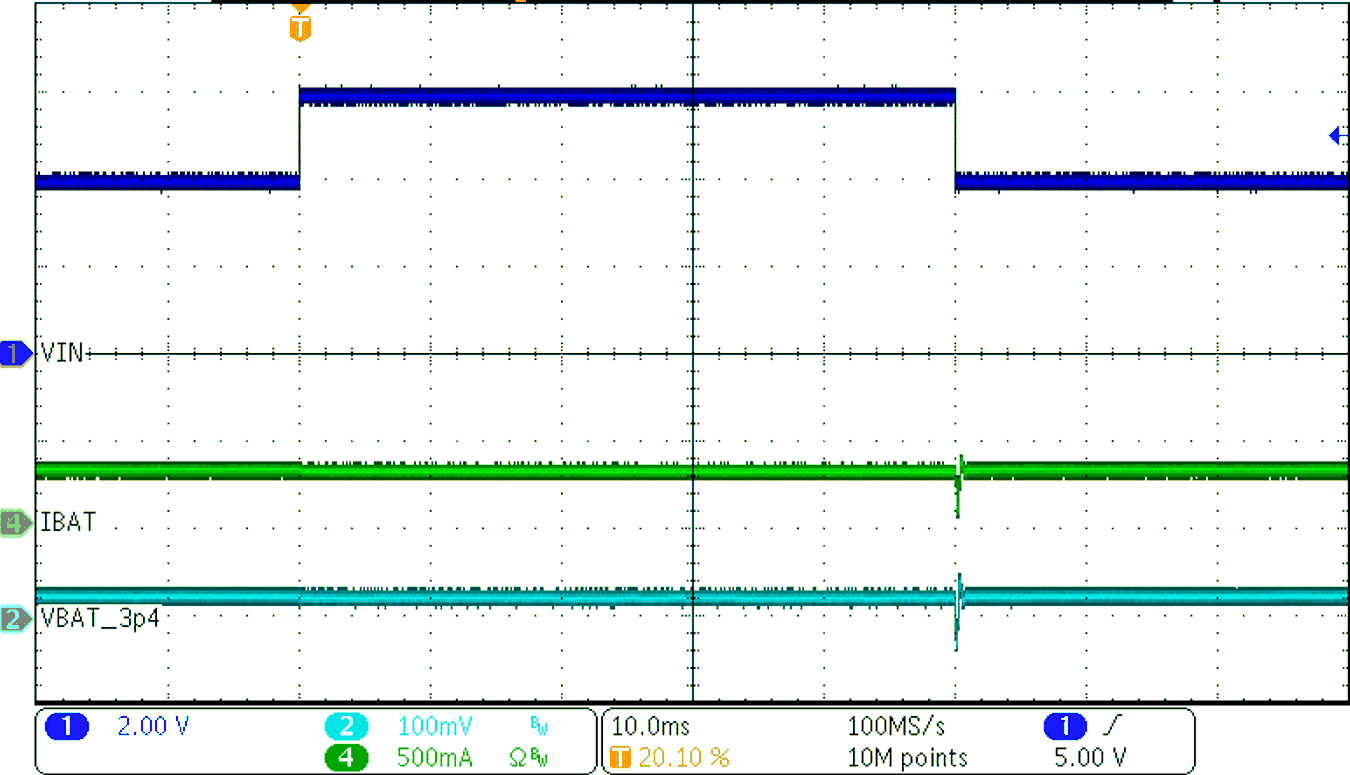

| VIN = 5V → 20V | ICHG = 400mA |
| VOUT = 4.2V | ISYS = 0mA → 500mA → 0mA | ICHG = 250mA |

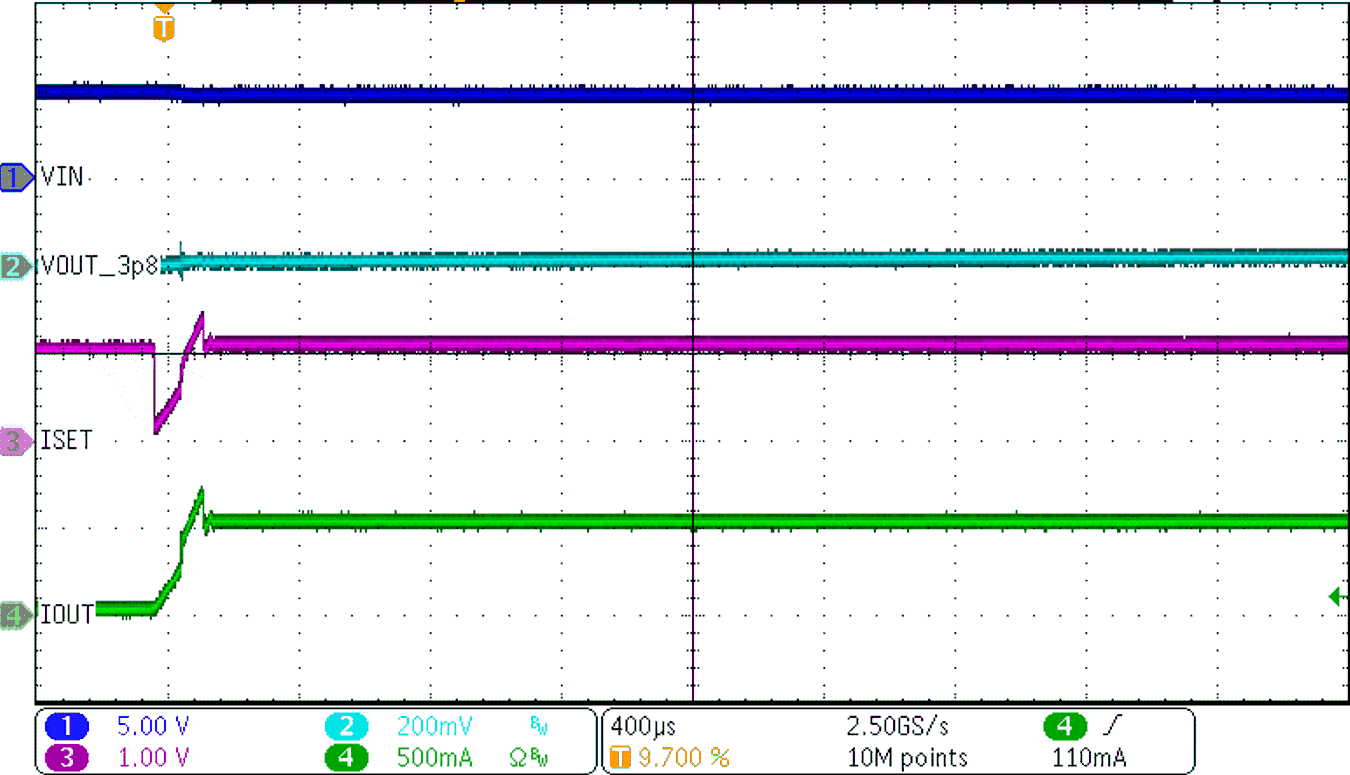

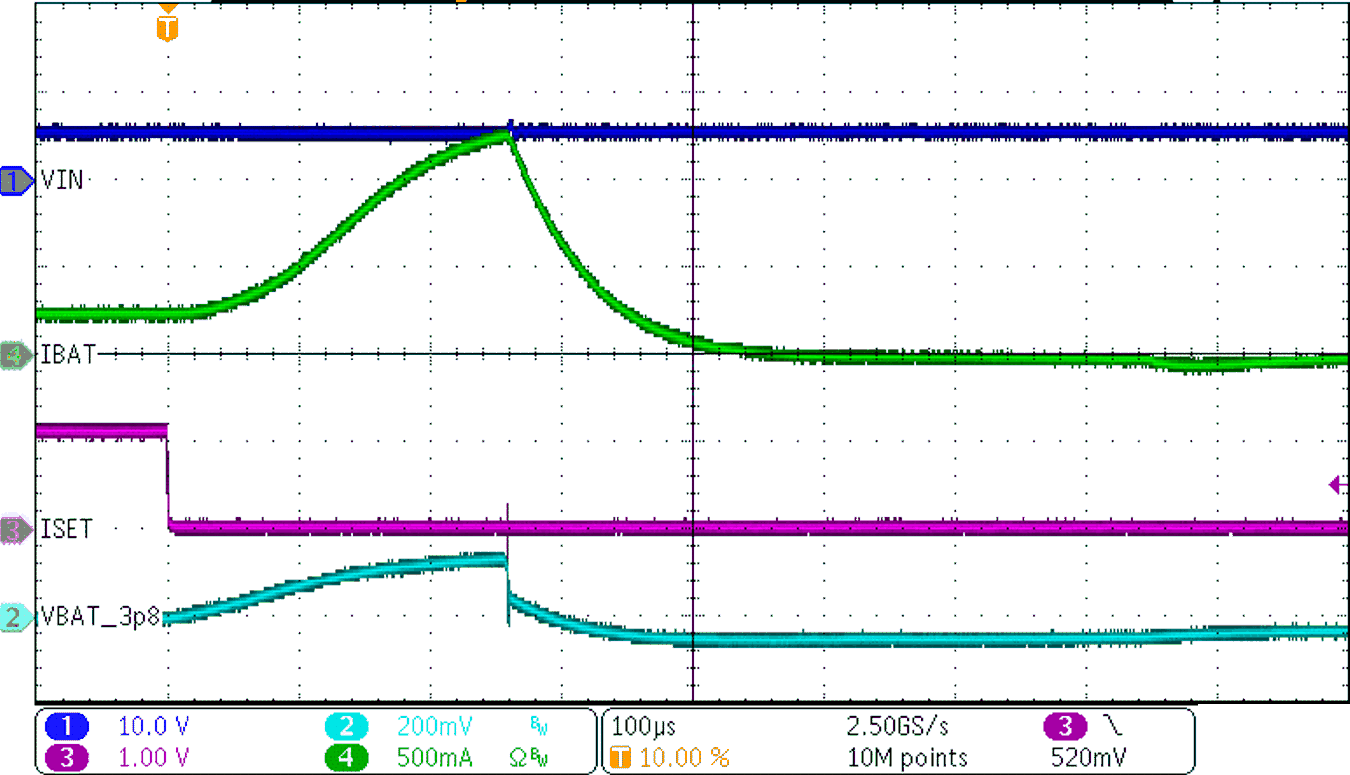

| ISET = 1.2kΩ → 0Ω |
| VREG = 2.5V | ICHG = 400mA |
| ICHG = 400mA |

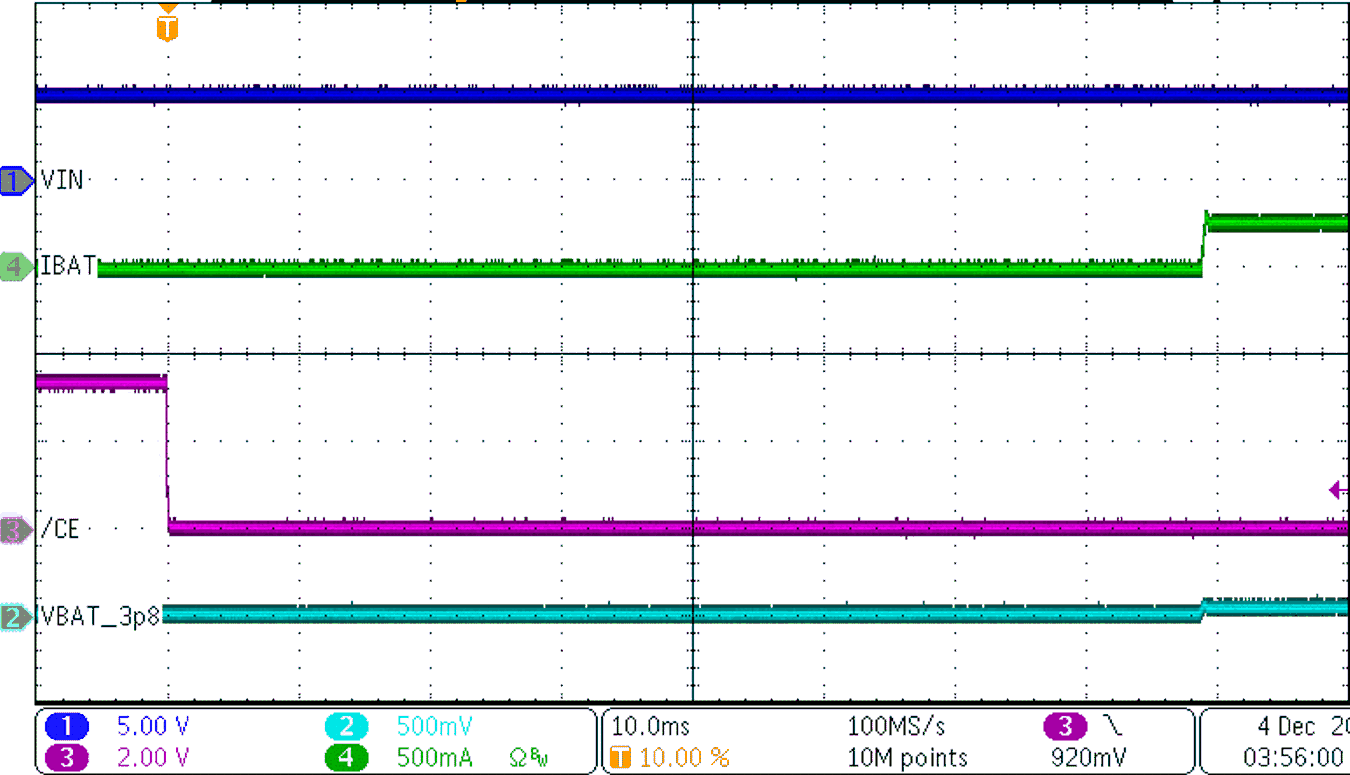

| /CE 拉至低電平 | ICHG = 400mA |
| VIN = 4V → 6V | VOUT = 3.5V | ICHG = 250mA |
| VOUT = 4.0V → 0V | ICHG = 250mA |
| ISET = 50mA → 500mA |
