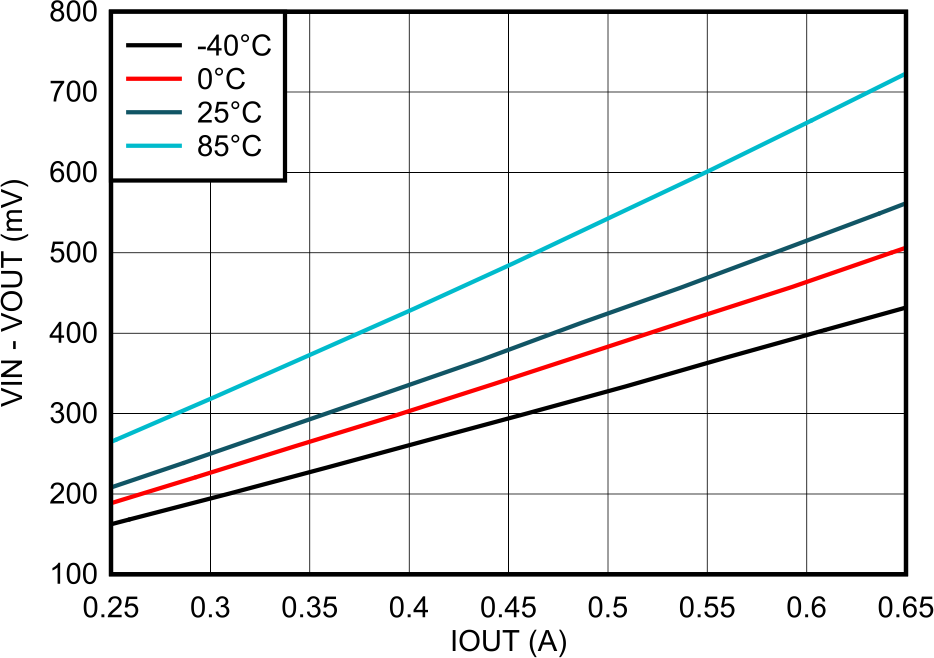

6.7 Typical Characteristics
CIN = 1 μF, COUT = 1 μF, VIN = 5 V, VOUT = 3.8 V, Temperature = Ambient (unless otherwise specified)

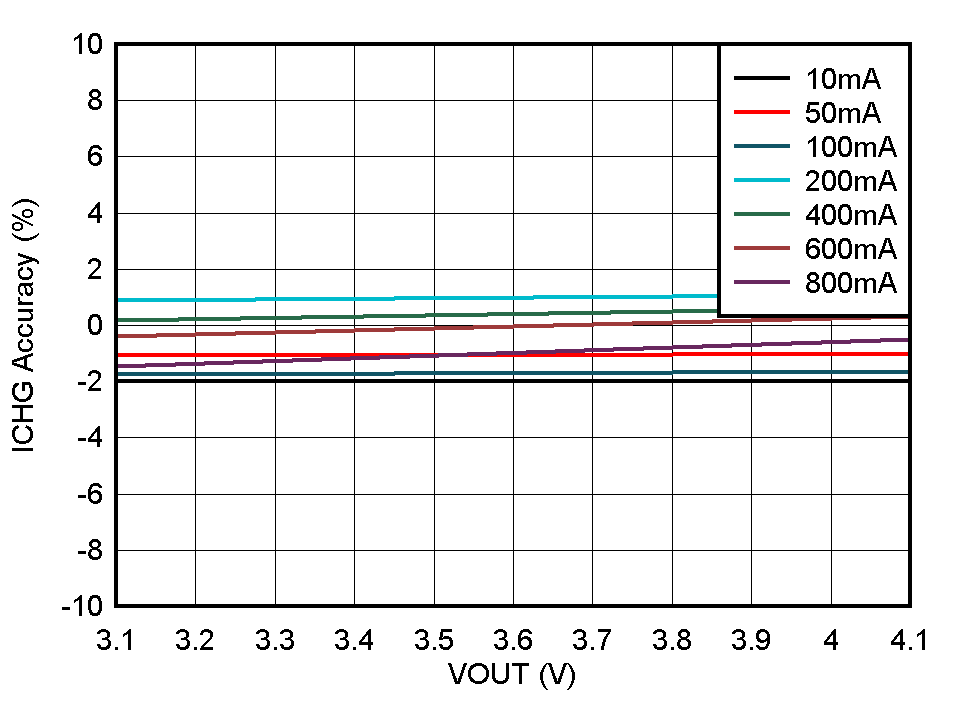

| VIN = 5 V | Temperature = 25oC |

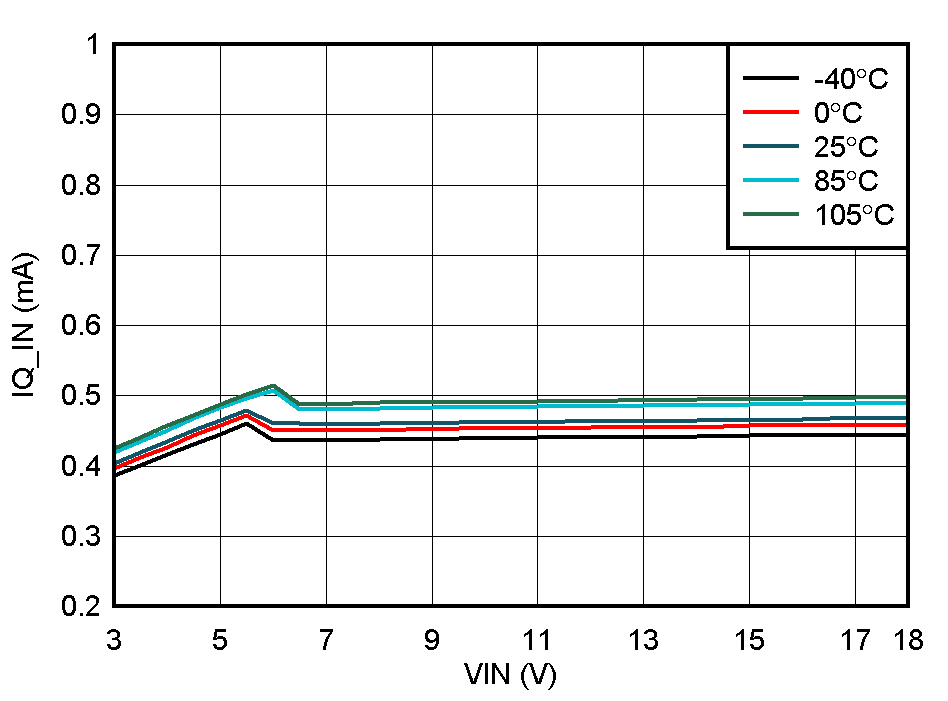

| Charge enabled | ICHG = 0 A |
| VIN = 5 V and 12 V | VOUT = 3.8 V and 7.6 V |

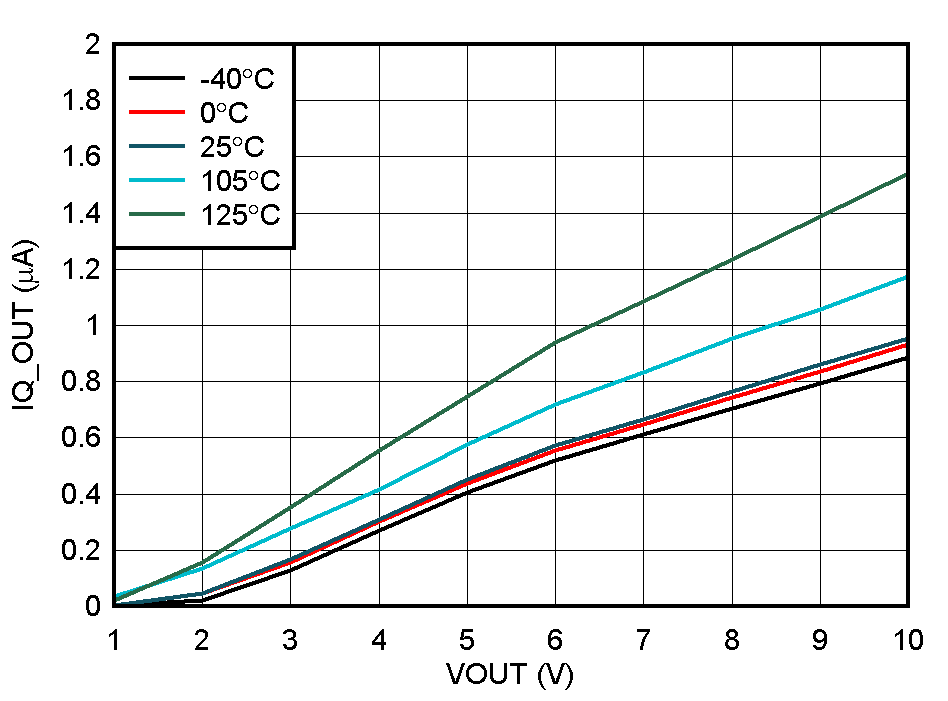

| TS Pin = LOW | VOUT = 0 V |
| VIN = 0 V |
