8.2.1.3 Application Curves
CIN = 1 μF, COUT = 1 μF, VIN = 5 V, VOUT = 3.8 V (unless otherwise specified)
| RISET = 0.6 kΩ |

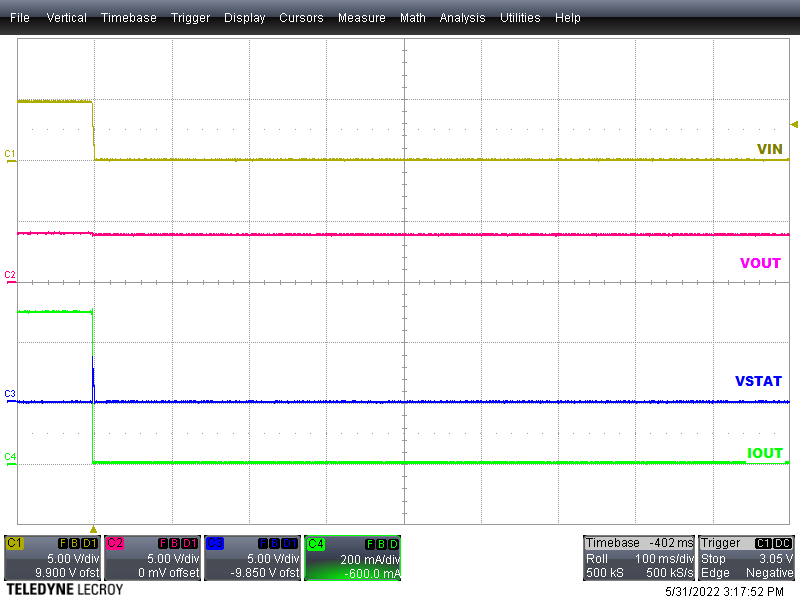

| VIN = 5 V → 0 V |

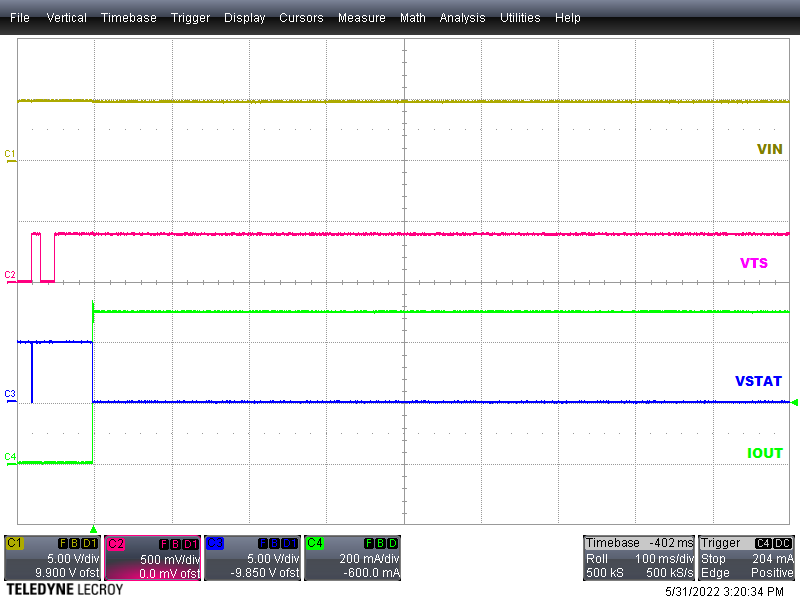

| TS pin released |
| VIN = 20 V → 10 V |
| RISET = 0.6kΩ | OUT = open-circuit |

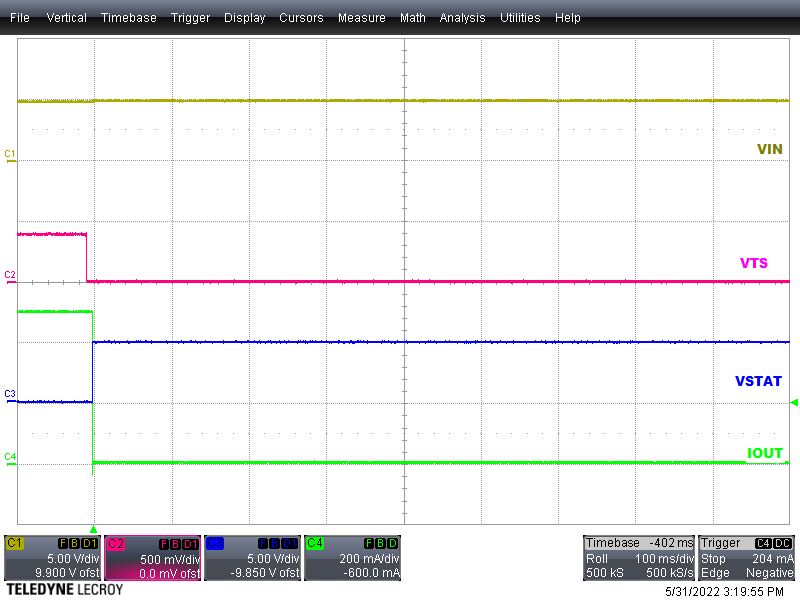

| TS pulled LOW |

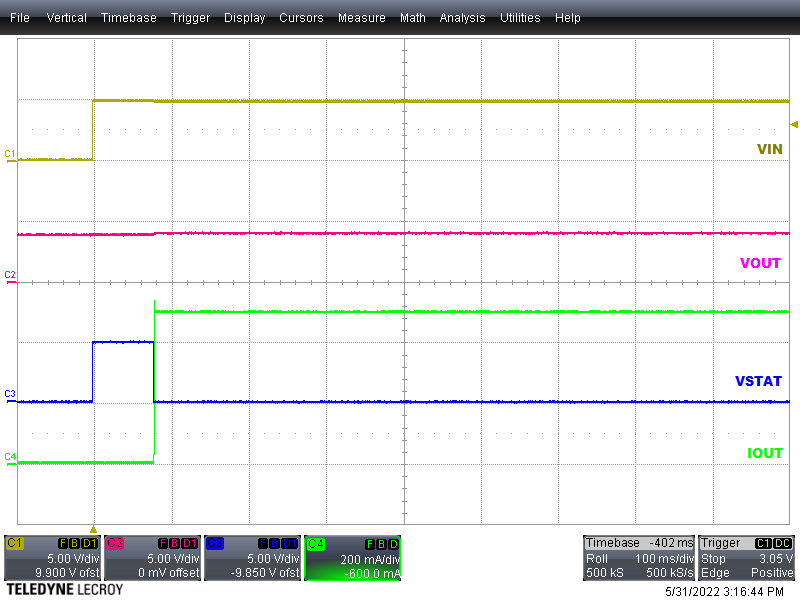

| VIN = 5 V → 10 V |
| ISET = 0 Ω |
