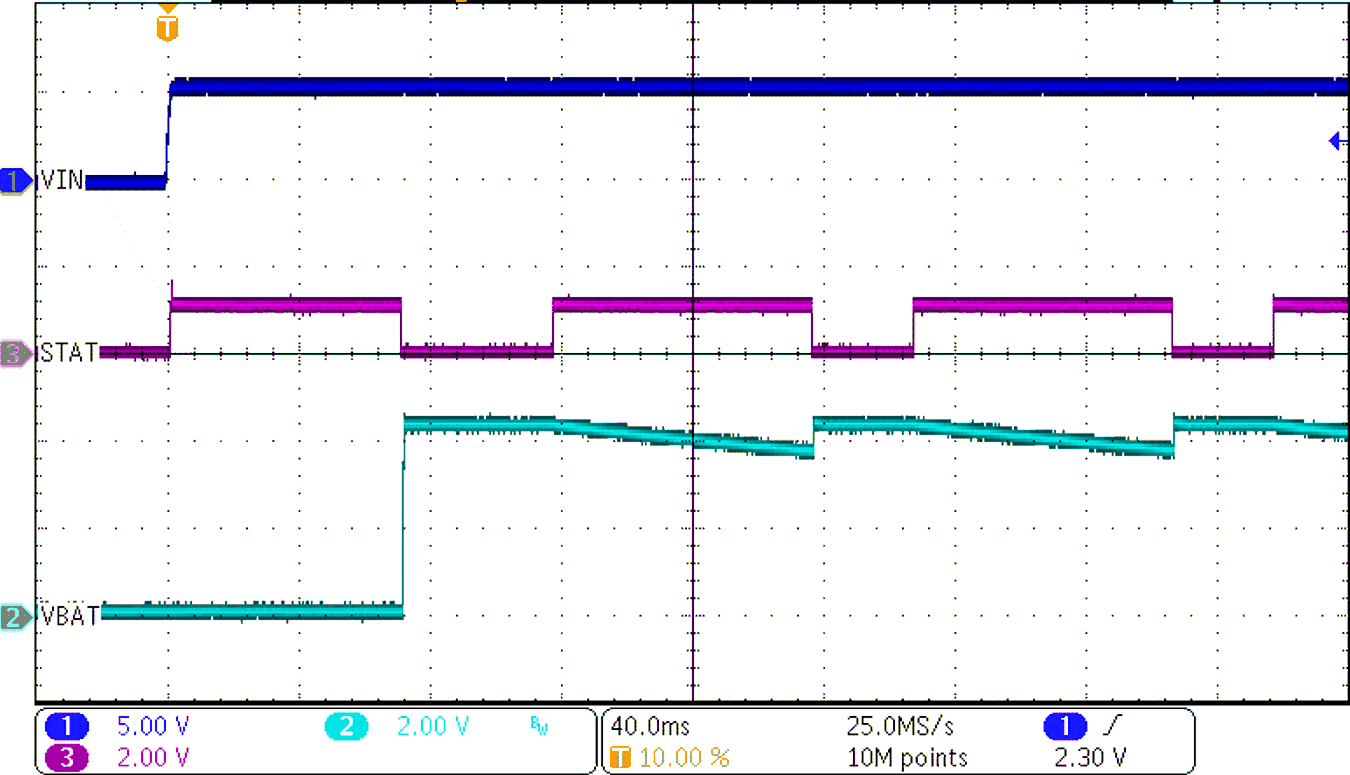

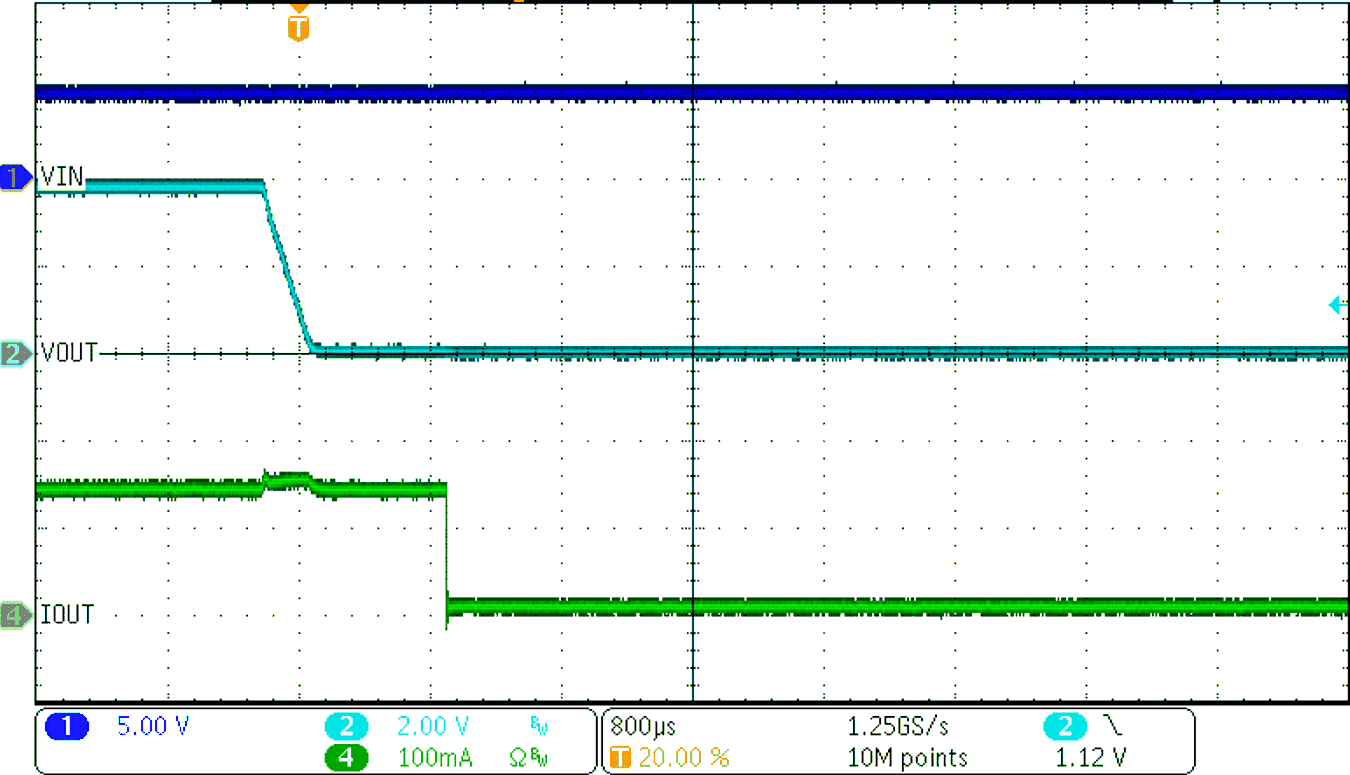

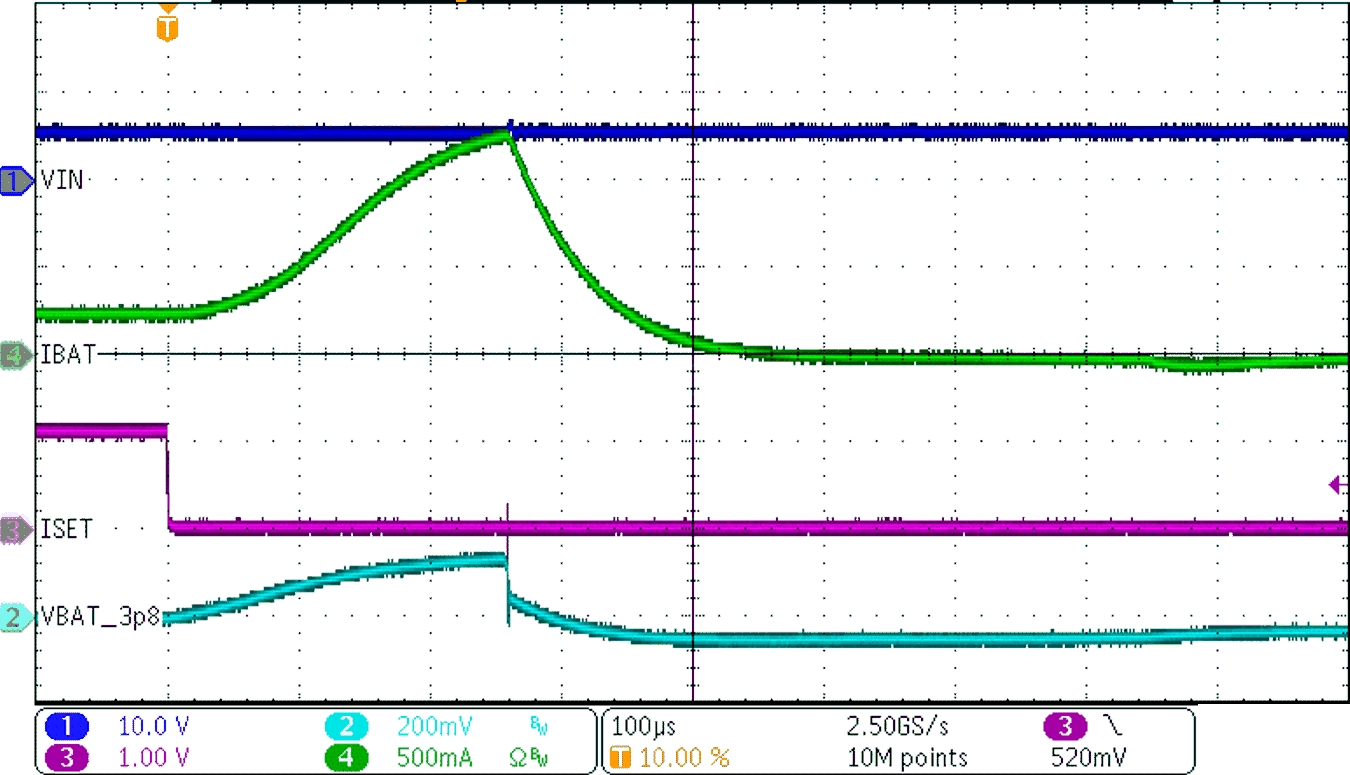

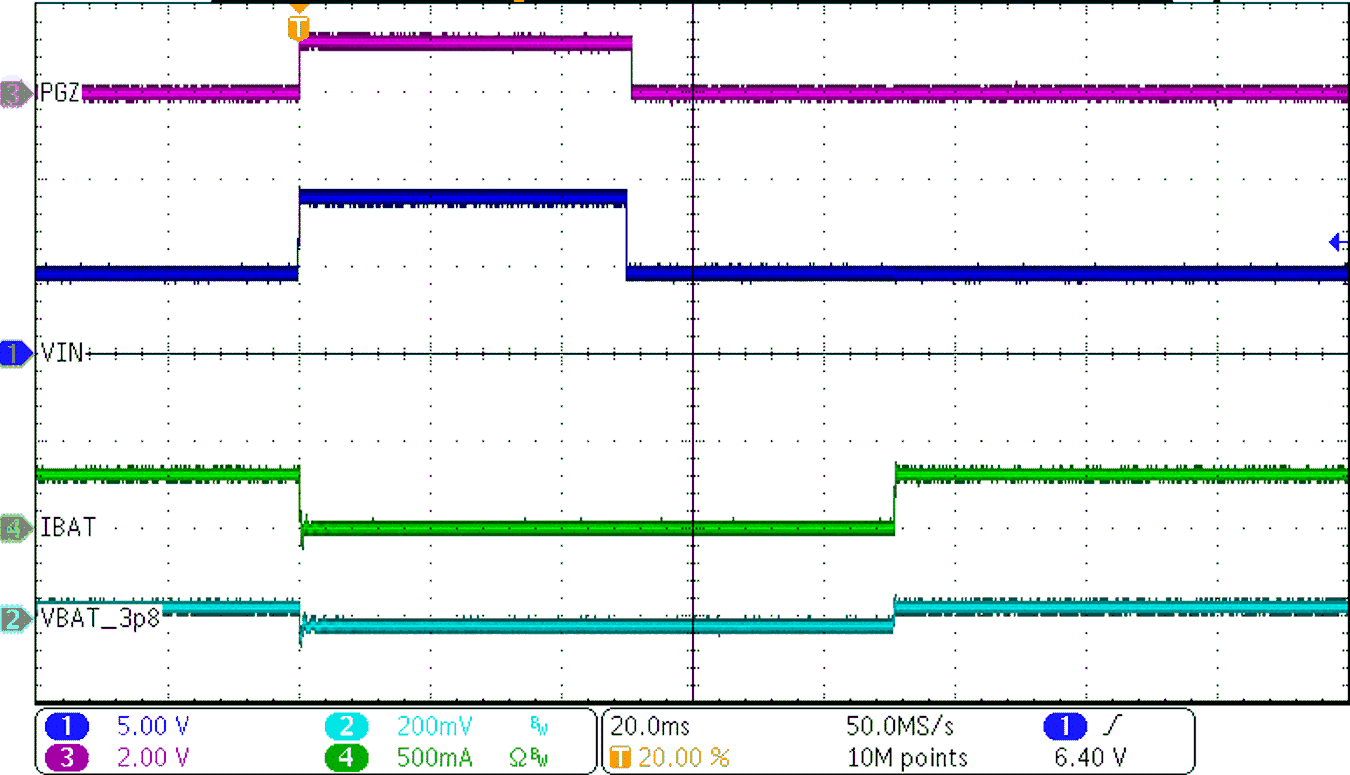

8.2.1.3 Application Curves
CIN = 1 μF, COUT = 1 μF, VIN = 5 V, VOUT = 3.8 V, ICHG = 250 mA (unless otherwise specified)

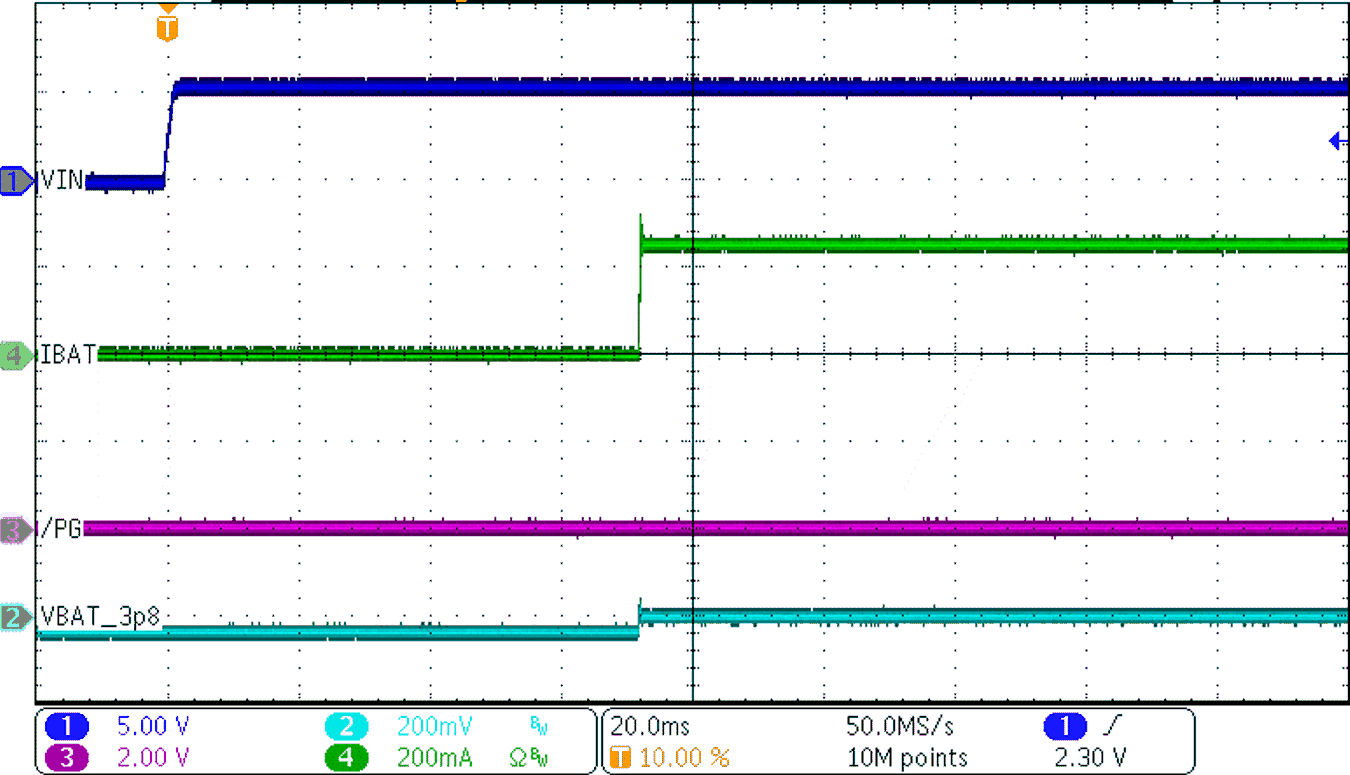

| RISET = 1.2 kΩ |

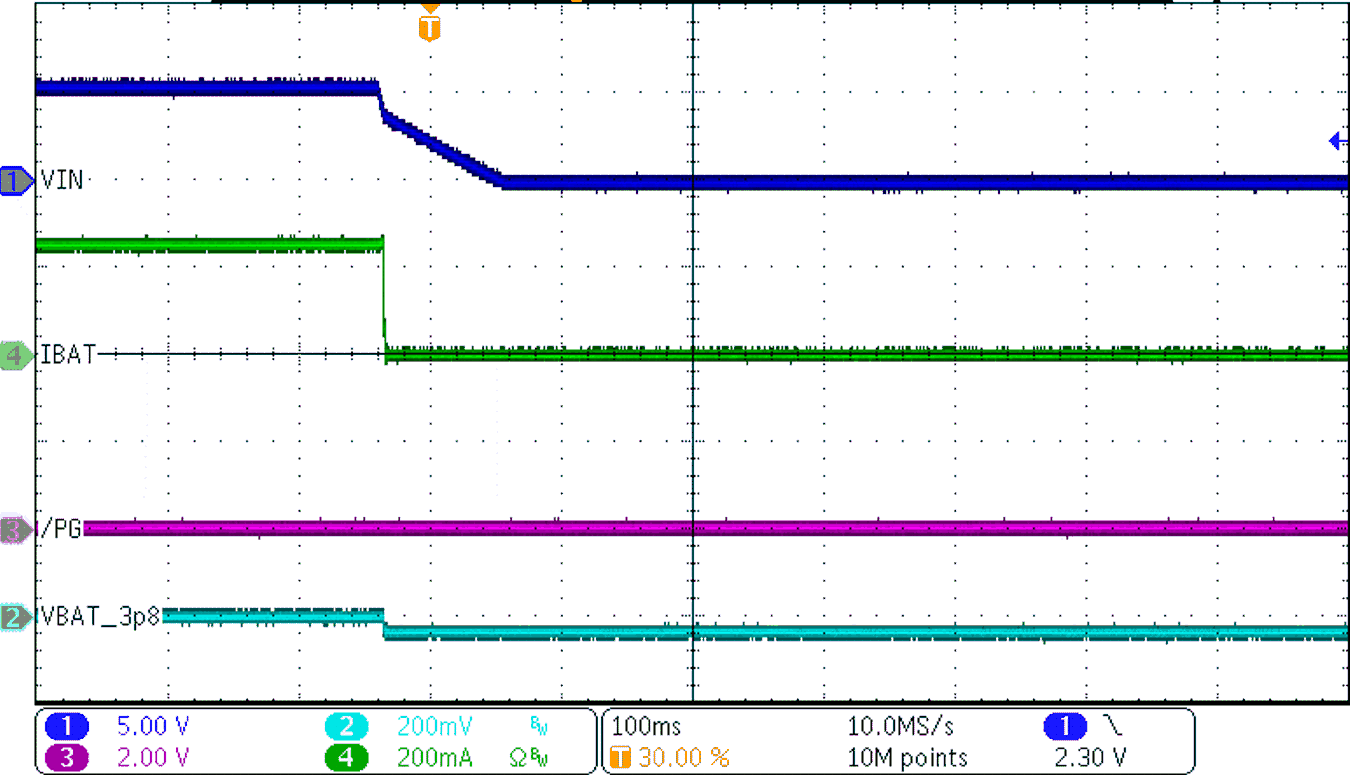

| VIN = 5 V → 0 V |

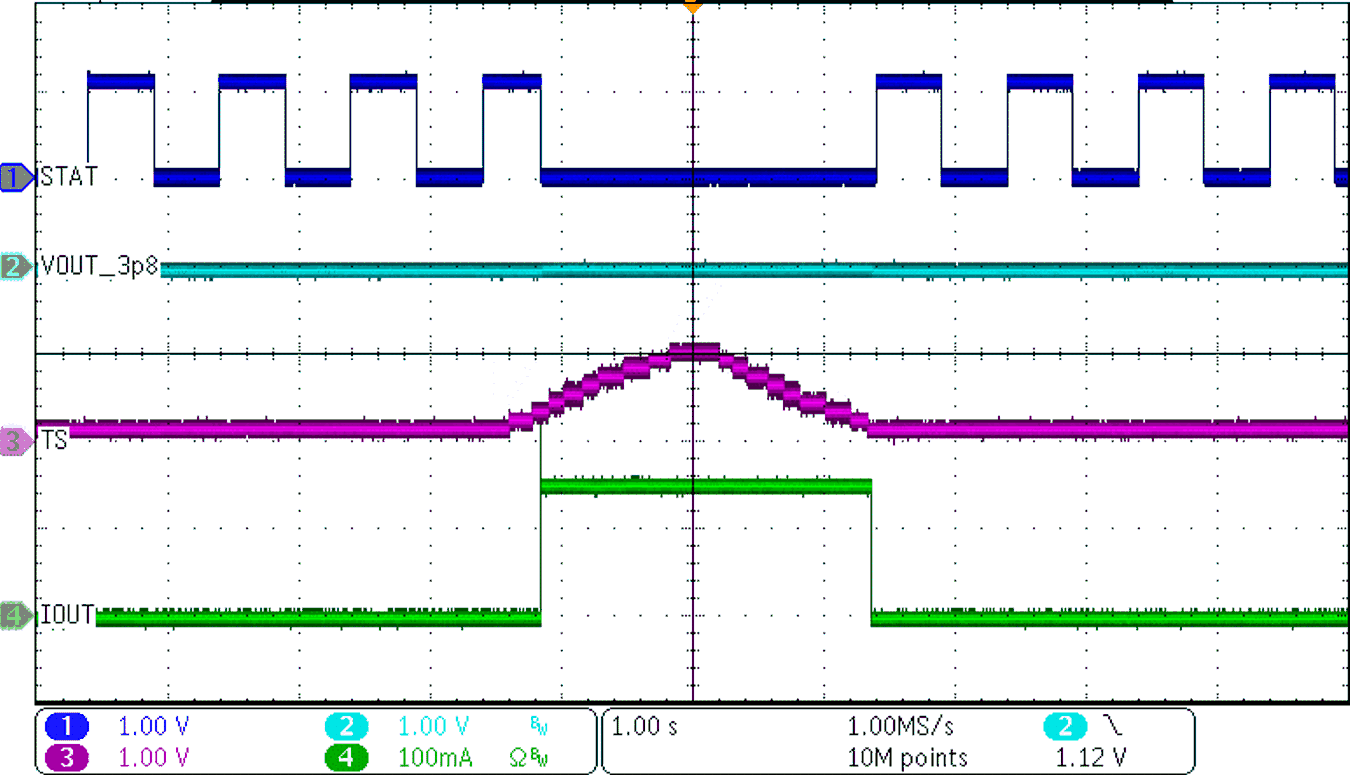

| TS pin released |

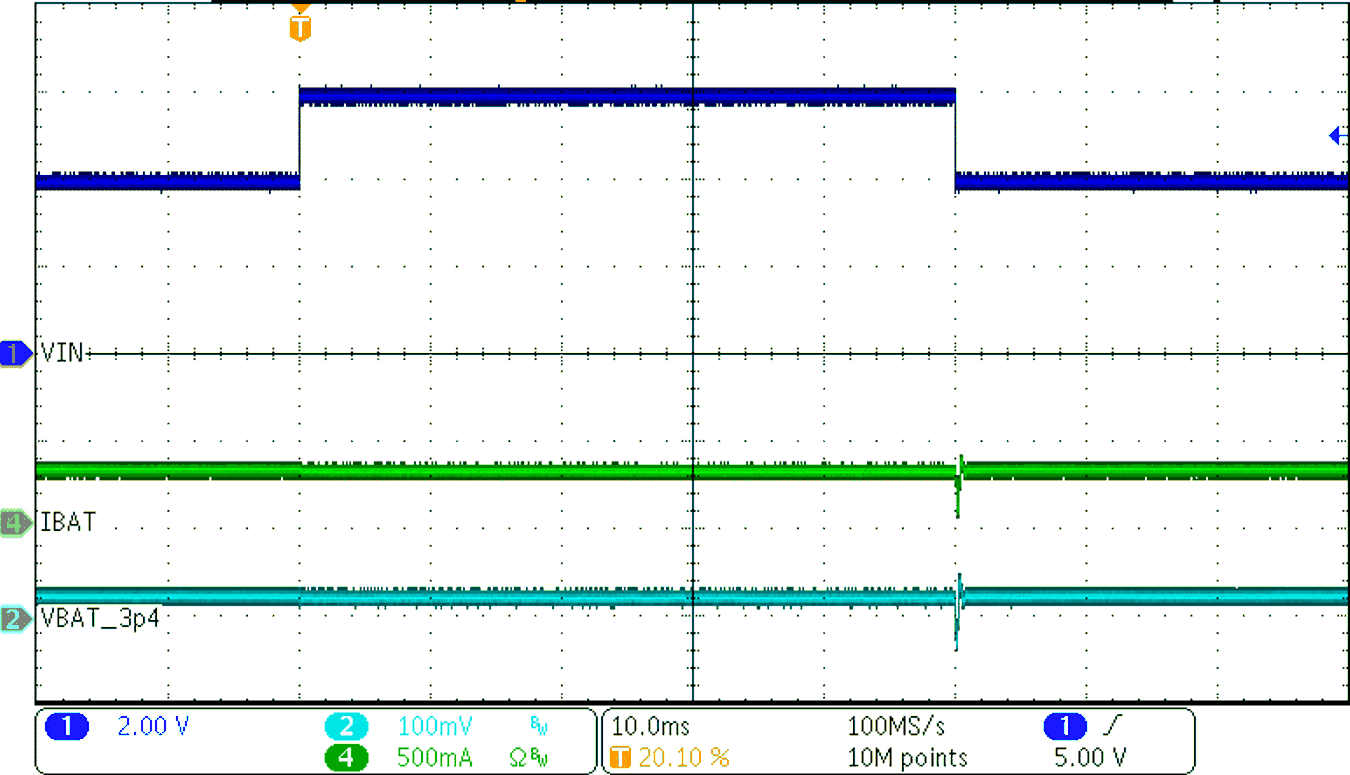

| VIN = 4 V → 6 V | VOUT = 3.5 V |
| VOUT = 4.0 V → 0 V |

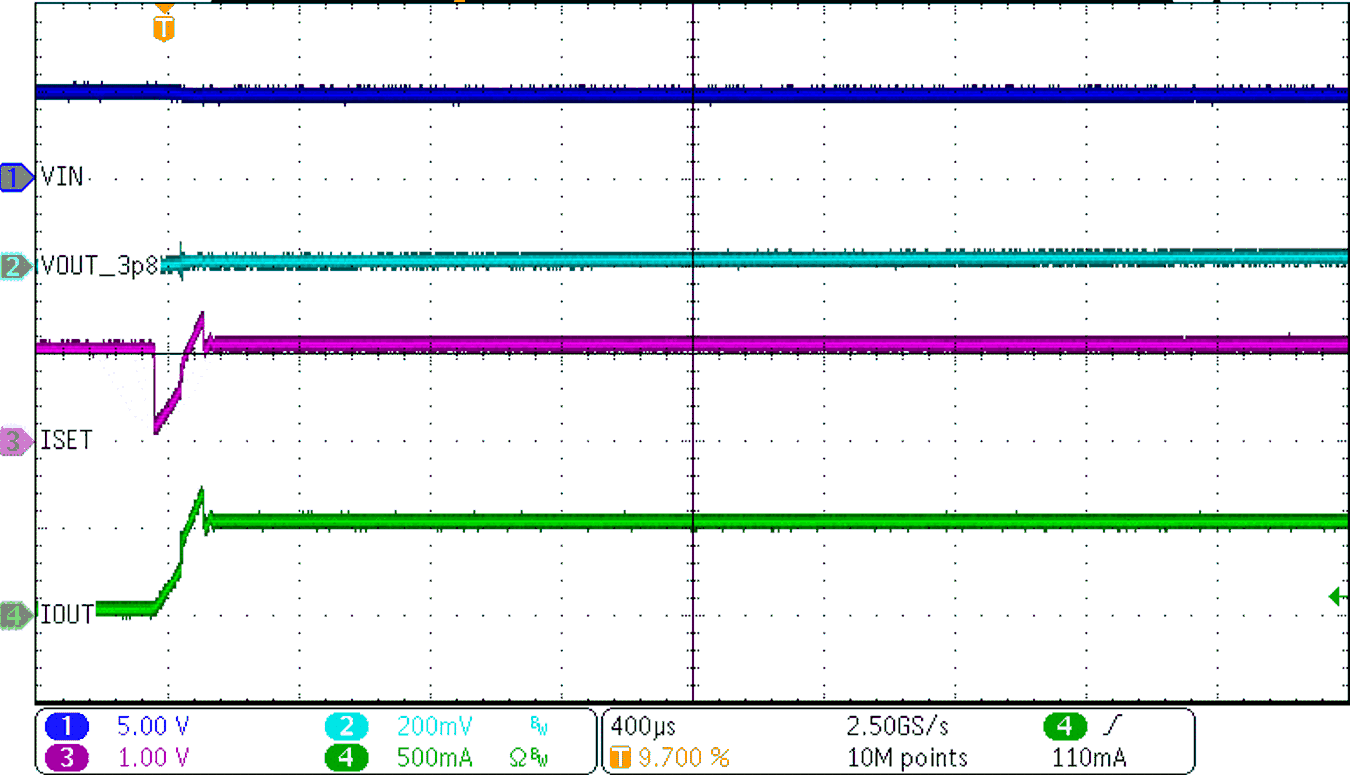

| ISET = 50 mA → 500 mA |

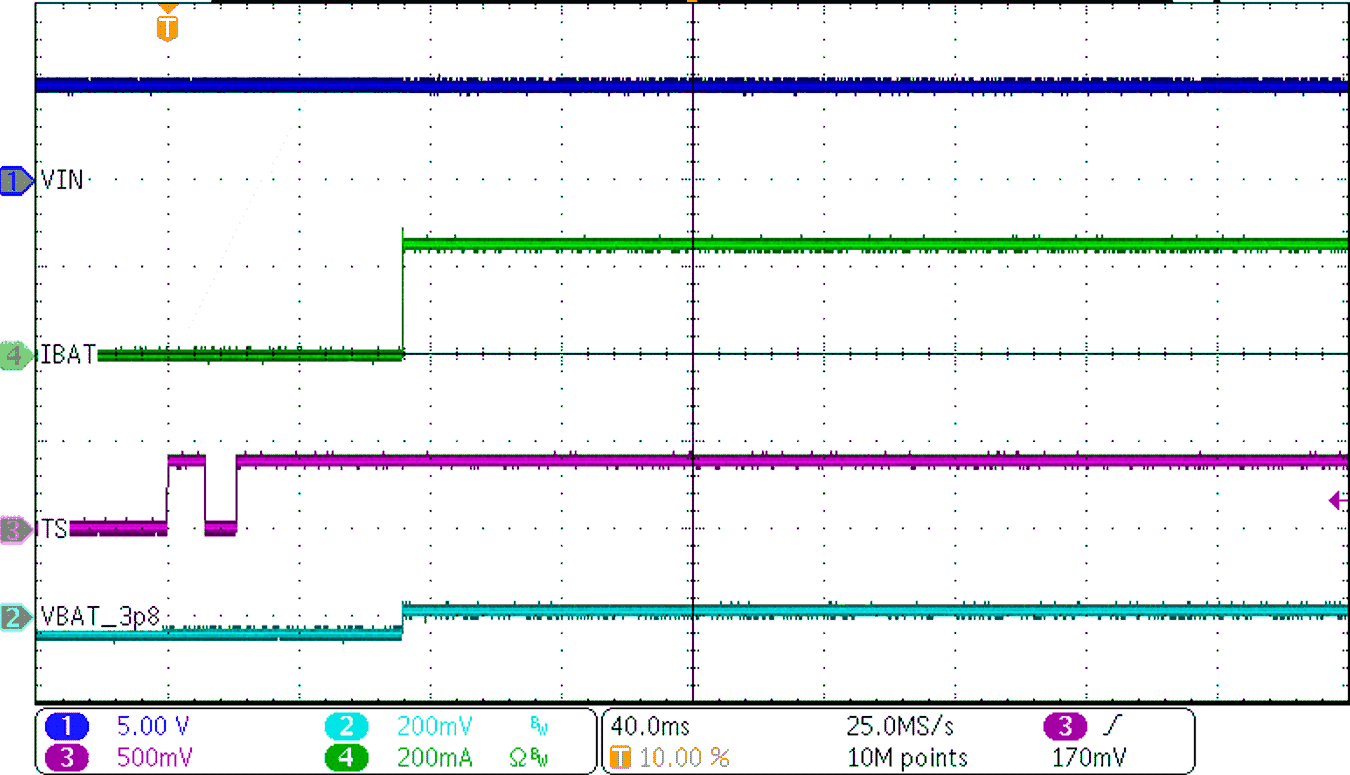

| RISET = 1.2 kΩ | OUT = open-circuit |

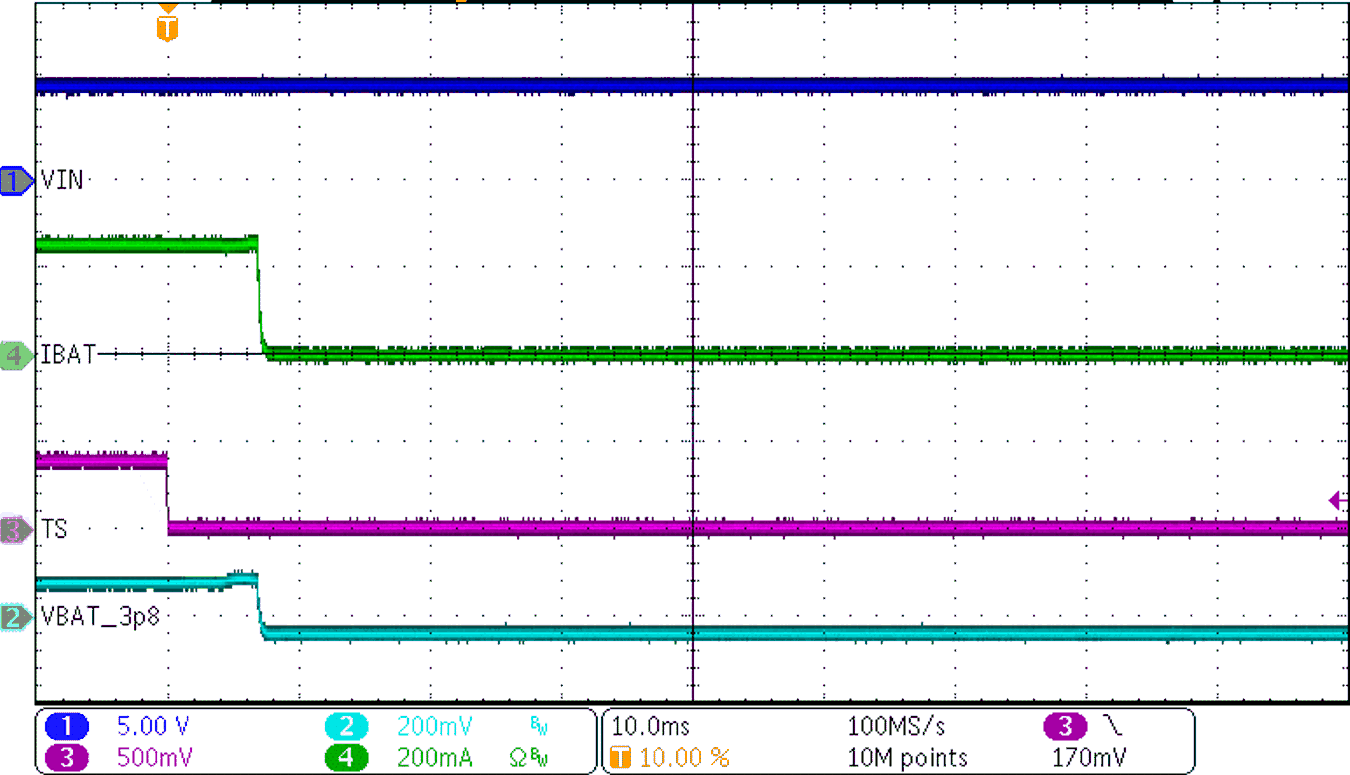

| TS pulled LOW |
| VIN = 5 V → 10 V → 5 V |

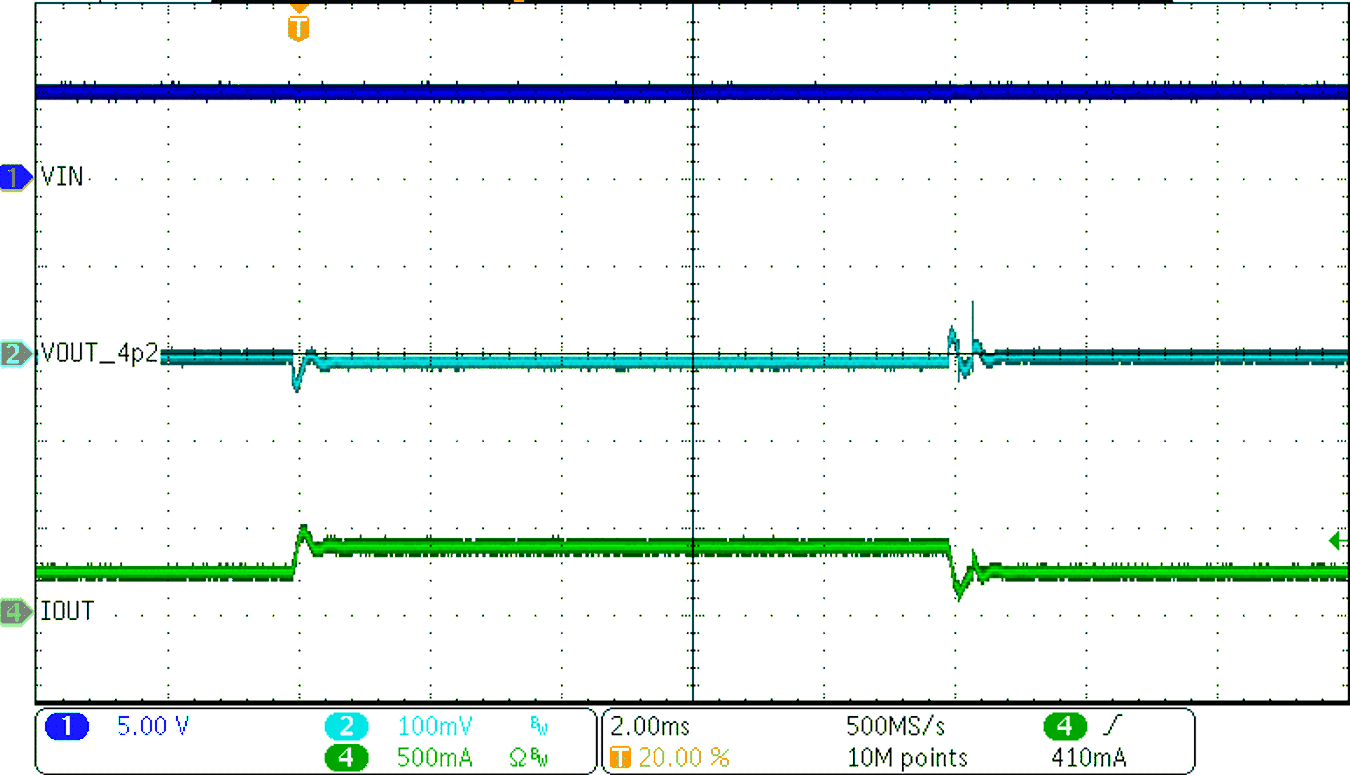

| VOUT = VSET = 4.2 V | ISYS = 0 mA → 500 mA |
| ISET = 1.2 kΩ → 0 Ω |
| VTS = 80 mV → 1 V → 80 mV |
