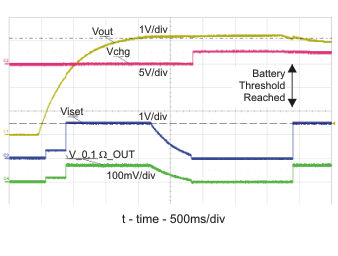

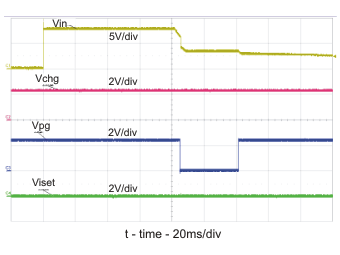

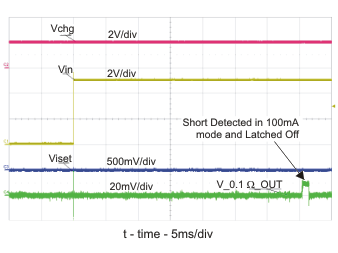

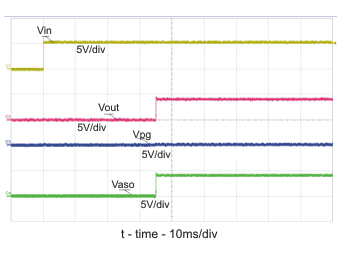

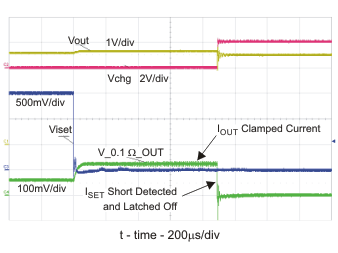

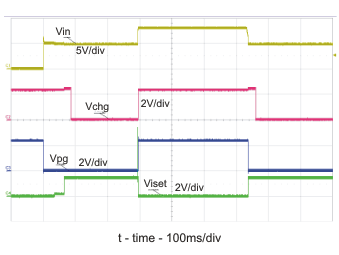

9.2.1.3 Application Curves
SETUP: BQ24040 typical applications schematic; VIN = 5V, VBAT = 3.6V (unless otherwise indicated)

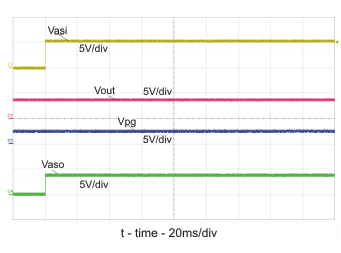

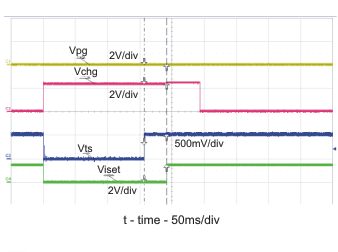

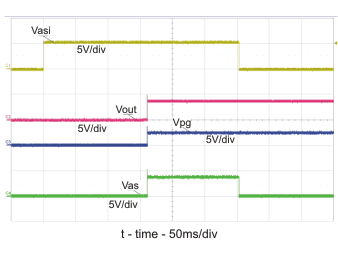

| 10k? resistor from TS to GND. 10k? is shorted to disable the IC | ||
.

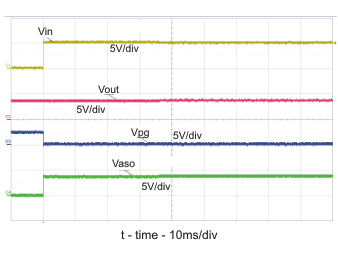

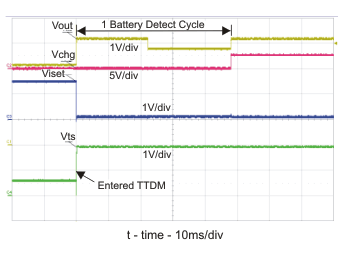

Figure 9-8 TS Enable and Disable ?
| Continuous battery detection when not in TTDM | ||
| CH4: IOUT (1A/Div) |
| CH4: IOUT (0.2A/Div) | ||

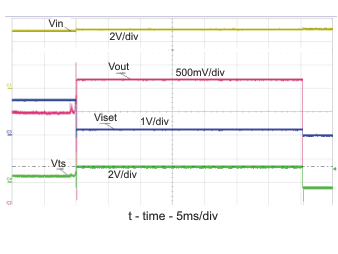

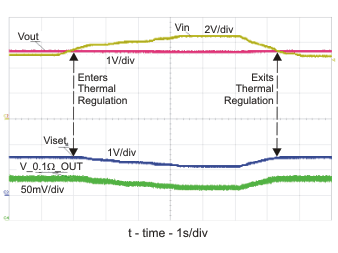

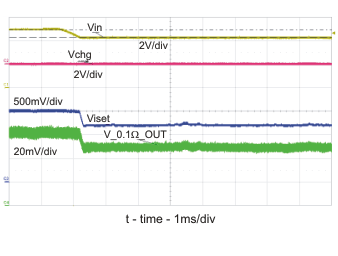

| The IC temperature rises to 125°C and enters thermal regulation. Charge current is reduced to regulate the IC at 125°C. VIN is reduced, the IC temperature drops, the charge current returns to the programmed value |
Fixed 10k? resistor, between TS and GND.

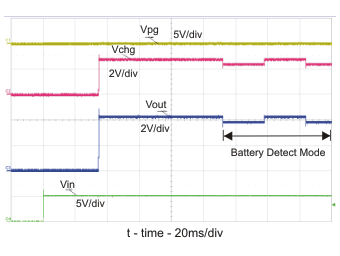

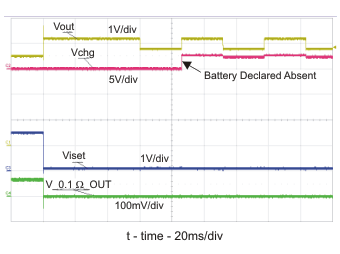

Figure 9-9 Hot Plug Source w/No Battery – Battery Detection ?

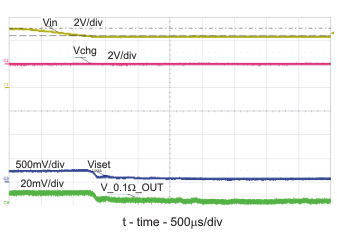

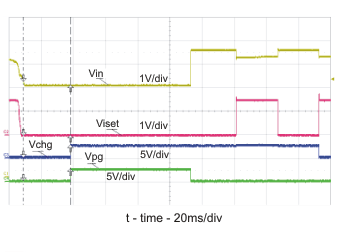

| CH4: IOUT (1A/Div) | ||
| Battery voltage swept from 0V to 4.25V to 3.9V. | ||
| CH4: IOUT (0.2A/Div) |
| VIN swept from 5V to 3.9V to 5V | VBAT = 4V | |
