8.3.4 New Charge Cycle
A new charge cycle is started when any of these events occur:
- A valid power source is applied;
- The chip is enabled/disabled using TS pin or BAT_EN;
- Exit of termination/Timer Disable Mode (TTDM);
- Detection of batter insertion;
- OUT voltage drops below the VRCH threshold.
The CHG signal is active only during the first charge cycle. Exiting TTDM or the OUT voltage falling below VRCH will not activate the CHG signal if it is already in the open-drain (off) state.

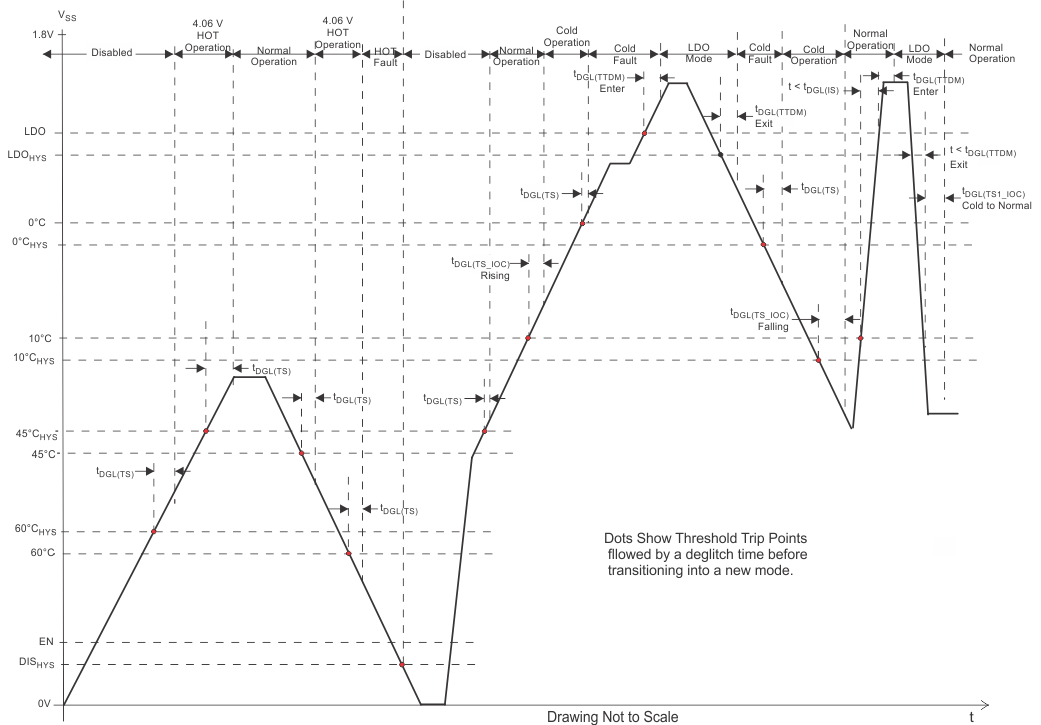

Figure 8-2 TS Battery Temperature Bias Threshold and Deglitch Timers

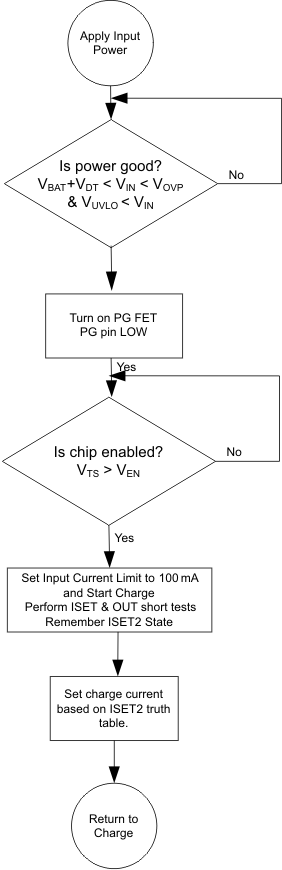

Figure 8-3 BQ2404x Power-Up Flow Diagram
