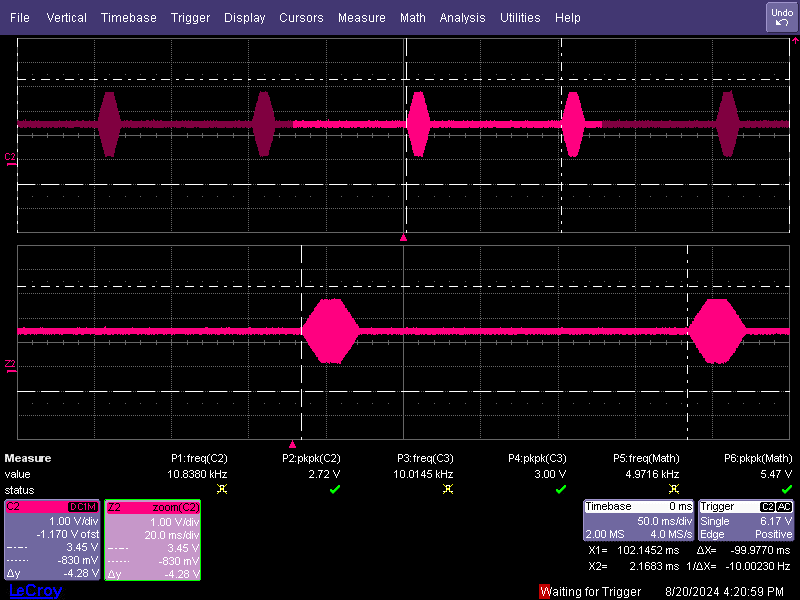

連續脈沖模式 (CPM) 下的 SG2 會生成具有定義的重啟和延音時間間隔的可重復脈沖。這兩個計時器是根據工作采樣率 fs 每秒的樣本數進行配置的。請參閱表 3-3。

如果在延音時間間隔結束之前達到奈奎斯特頻率 fs/2，則 CPM 中的 SG2 會出現混疊。可以使用節 4.4.1 中的時序公式生成可接受的最終頻率以避免混疊。這些公式有助于選擇低于奈奎斯特點的可接受終止頻率。

必須在 CPM 的其他 ADSR 參數之前執行 ADSR 注釋確認腳本。但是，CPM 腳本末尾不需要 ADSR 啟用腳本。

# Key: w a0 XX YY ==> write to I2C address 0xa0, to register 0xXX, data 0xYY
# # ==> comment delimiter
#
#The following list gives an example sequence of items that must be #executed in the time between powering the device up and reading data #from the device. Note that there are other valid sequences depending #on which features are used.
#See the corresponding EVM user guide for jumper settings and audio #connections.
#
# Line-Out Fully-Differential 2-channel : OUT1P_M- Ch1, OUT2P_M- Ch2.
# FSYNC = 48 kHz (Output Data Sample Rate), BCLK = 12.288 MHz (BCLK/FSYNC = 256) ###################################################################

#Continuous pulse mode script
#adsr note at the start needed
#no asdr note at the end needed

w a0 01 01	# device reset

w a0 00 00	# locate page 0x00
w a0 02 09	# come out of sleep mode with VREF and DREG up

w a0 00 01	# locate page 0x01
w a0 2d 04	# enable chirp only

w a0 00 17	# locate page 0x17
w a0 7c 14 f1 a6 c6 # 10kHz chirp start frequency


w a0 00 18	# locate page 0x18
w a0 08 00 00 00 00	# chirp delta frequency of 0 Hz

w a0 00 1c	# locate page 0x1c
w a0 40 00 00 00 00	# adsr_note

#restart
#w a0 50 00 00 bb 80     #48k samples for 1s
w a0 50 00 00 12 c0 # 100ms default

#sustain
#w a0 54 00 00 5d c0 	#24000 samples at 500ms
w a0 54 00 00 01 e0 #10ms default

#attack
w a0 58 00 44 52 3f	# default with k=0.00417 @10k.
#w a0 58 00 03 6a 83	# 100ms with k=0.0002085 @10k.

#sustian level
#w a0 64 20 00 00 00 # sustain lvl at k=0.5

#decay timer
#w a0 60 ff bb ad c1 #5ms

#channel selection
w a0 00 11	#locate page 0x11
w a0 70 40 00 40 00	# OUT1
#w a0 74 40 00 40 00	# OUT2

w a0 00 00	# locate page 0x00
w a0 76 0c	# enable 2 DAC channels
w a0 78 40	# enable DAC
