SNVU283B August 2013 – December 2021 LMZ31520 , LMZ31530
6 Schematic

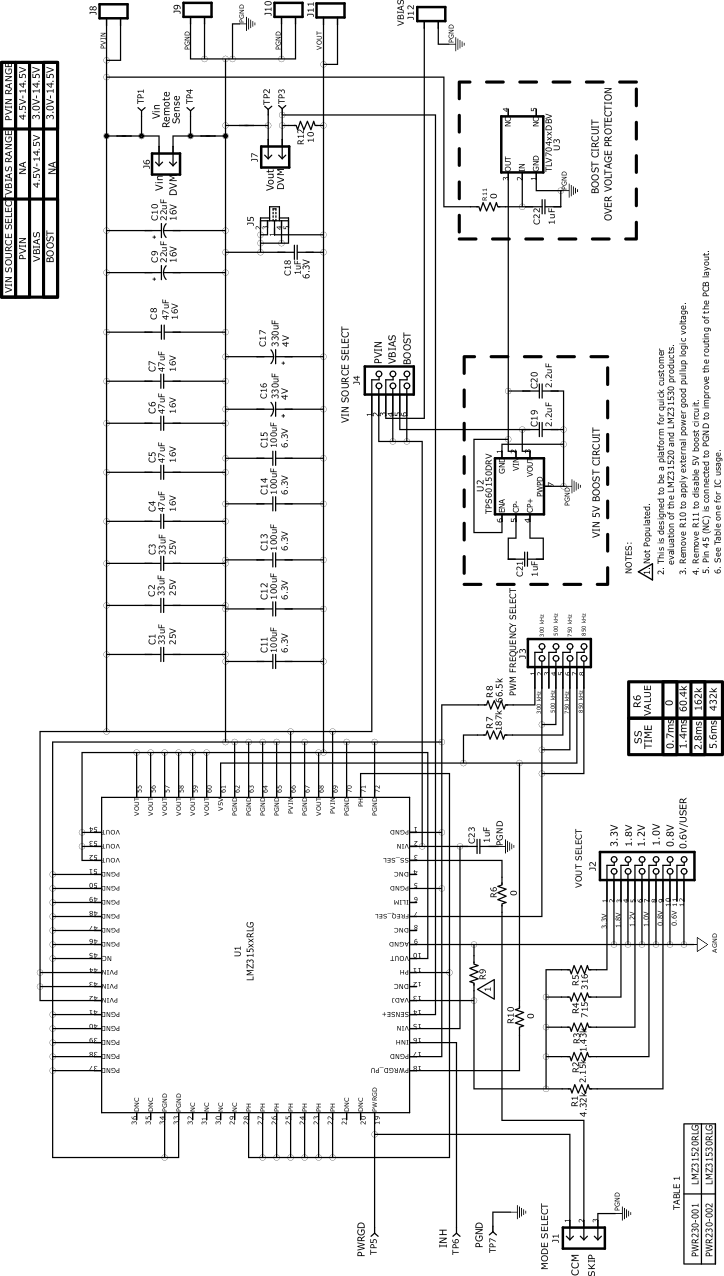

Figure 6-1 is the schematic for this EVM.
Figure 6-1 LMZ315xxEVM SchematicSNVU283B August 2013 – December 2021 LMZ31520 , LMZ31530
Figure 6-1 is the schematic for this EVM.
Figure 6-1 LMZ315xxEVM Schematic
