5 Lab Measurements

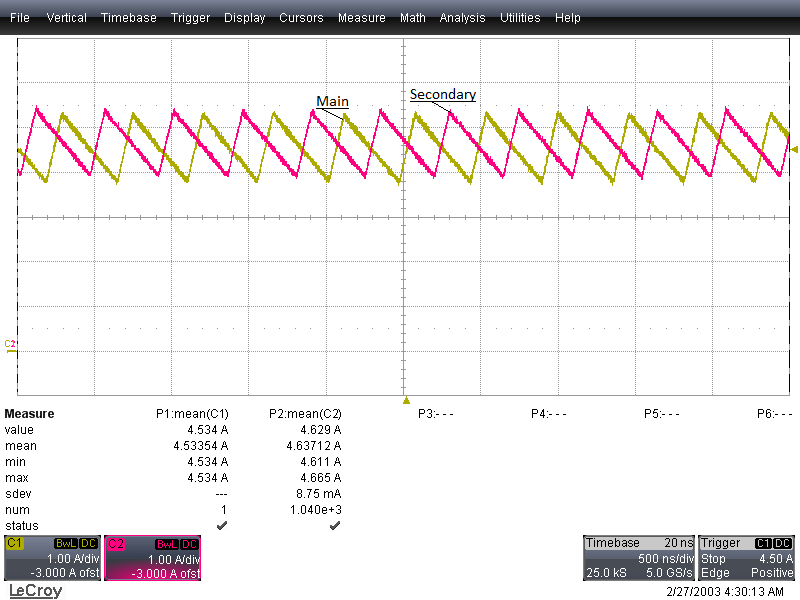

Figure 5-1 Inductor Current Sharing Steady-State Waveform- IOUT_(Main) = 4.53 A
- IOUT_(Secondary) = 4.64 A
- IOUT_(Average) = 4.58 A
- Current sharing accuracy = 4.58 +/- 1.13%

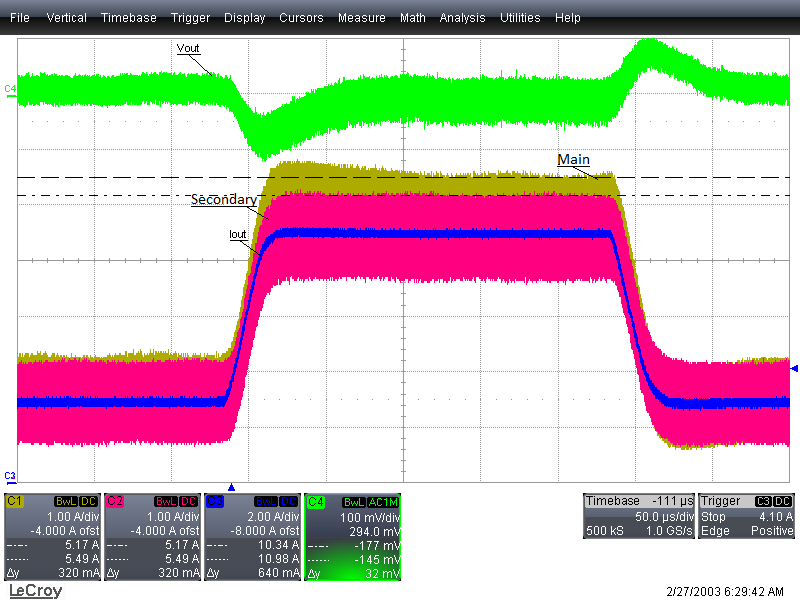

Figure 5-2 Inductor Current Sharing Load Transient (3 A to 9 A) Waveform- IOUT_(Main) = 4.79A
- IOUT_(Secondary) = 4.47A
- IOUT_(Average) = 4.63A
- Current sharing accuracy = 4.63 +/- 3.45%
Figure 5-3 Efficiency at 400 kHz (VIN = 16 V; VOUT = 3.3 V)

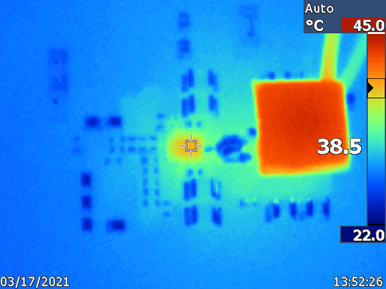

Figure 5-4 Thermal Measurement at 400 kHz (VIN = 16 V; VOUT = 3.3 V; IOUT = 4.5 A)
Figure 5-5 Efficiency at 2.2 MHz ( VIN = 16 V; VOUT = 3.3 V)

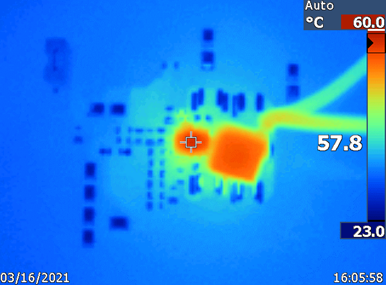

Figure 5-6 Thermal Measurement at 2.2 MHz (VIN = 16 V; VOUT = 3.3 V: IOUT = 4.5 A)
