3 Schematics
Figure 3-1 through Figure 3-9 show the EVM schematics.

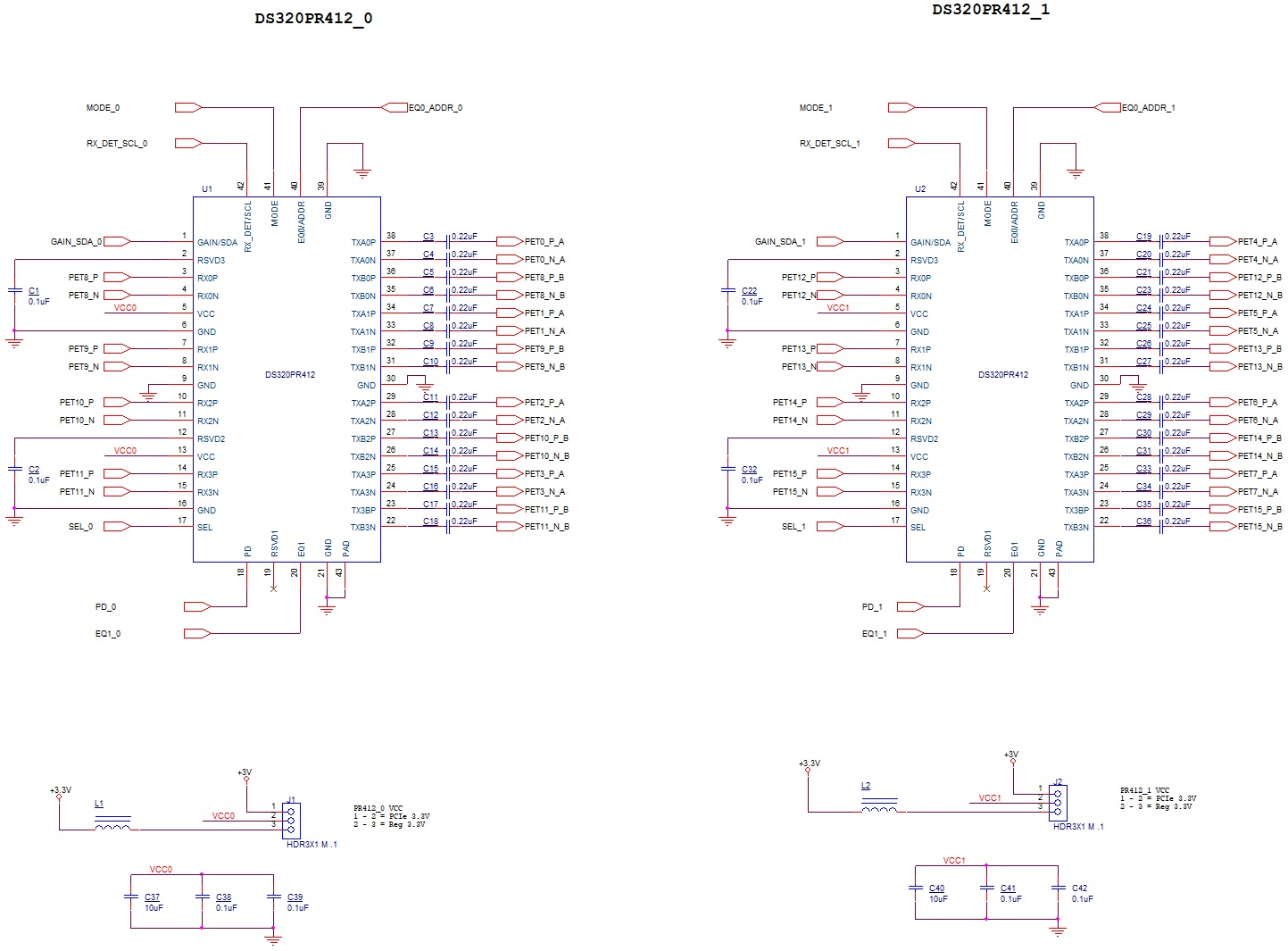

Figure 3-1 DS320PR412.
Figure 3-2 DS320PR421.

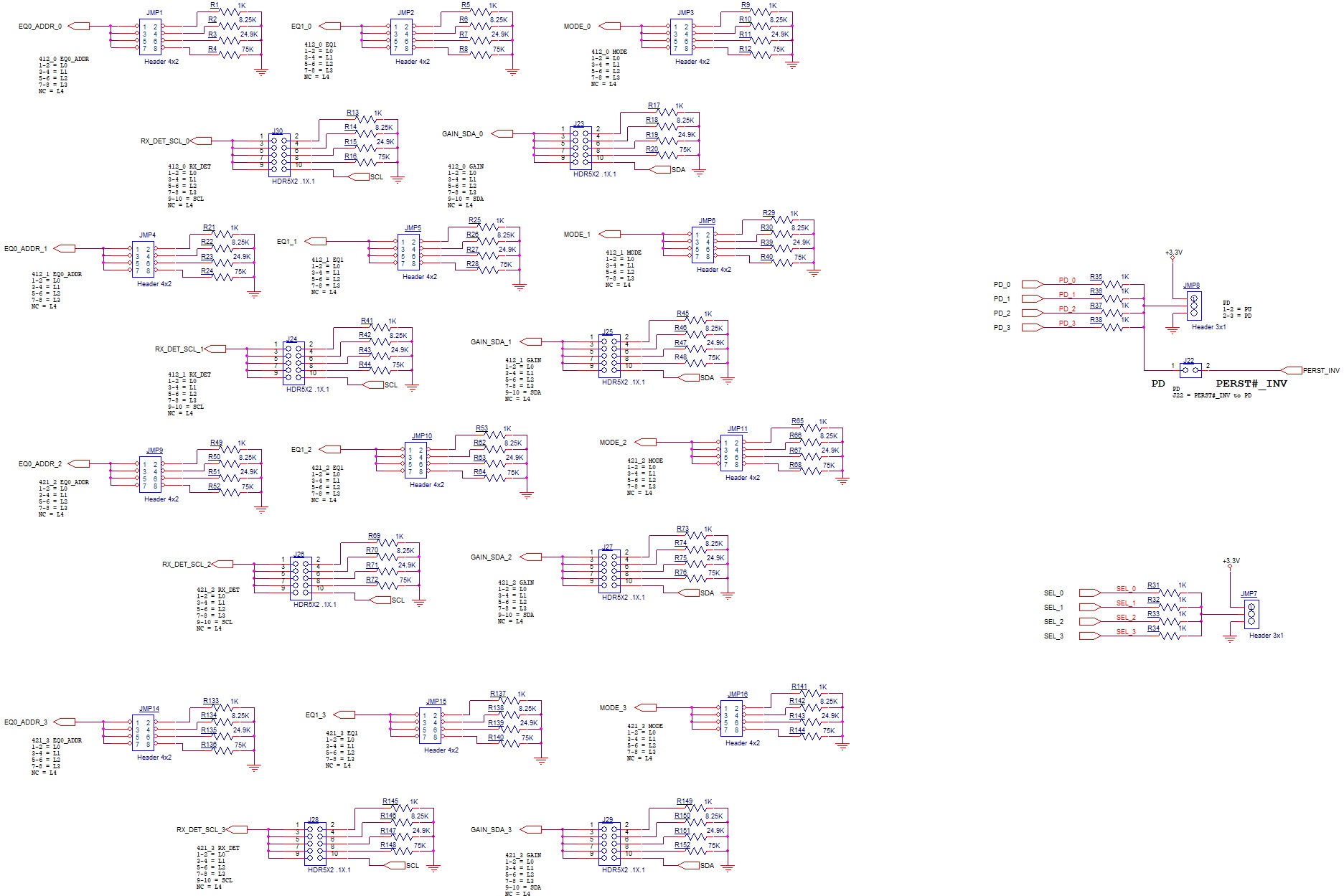

Figure 3-3 Configuration Headers.

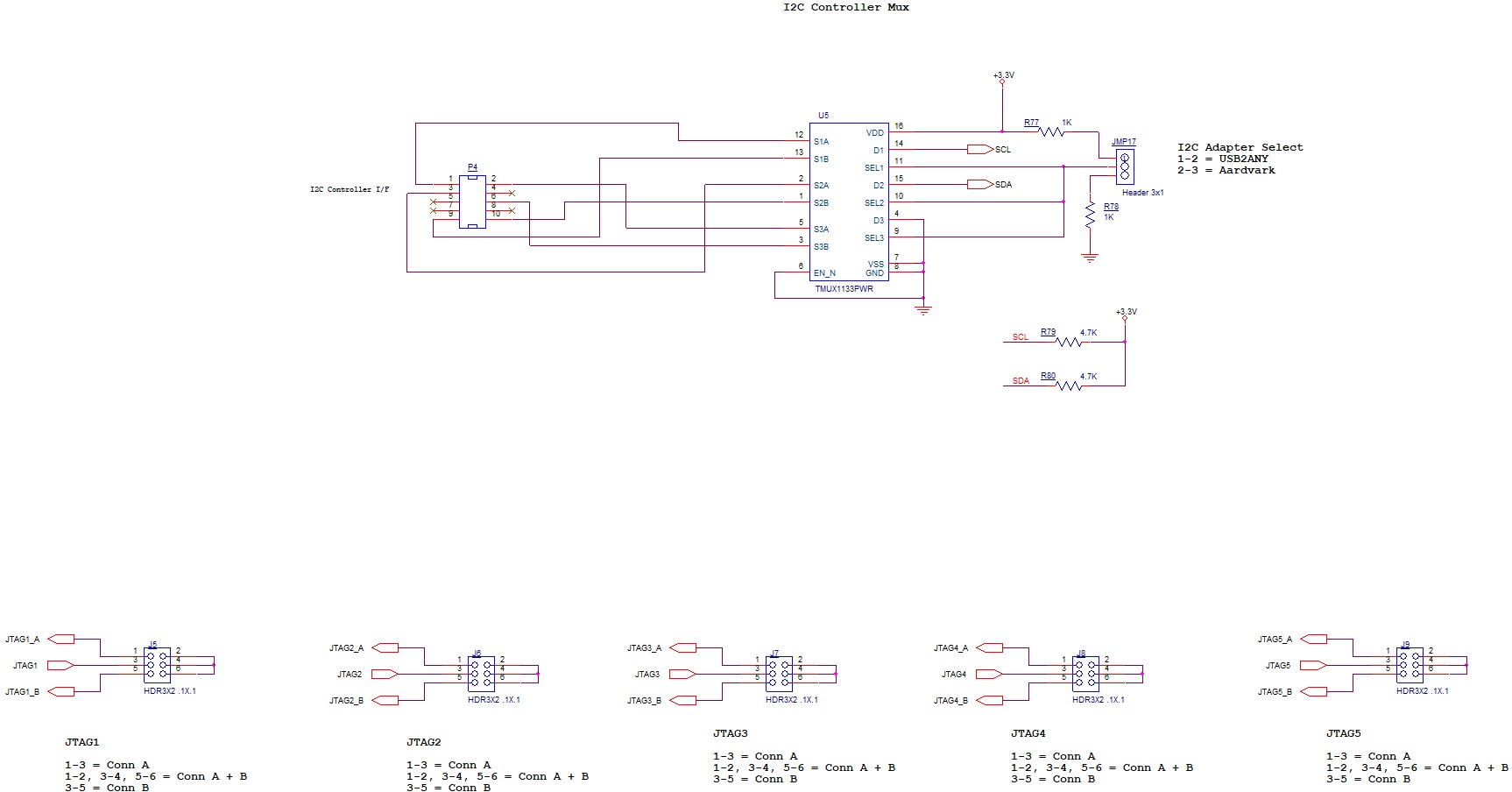

Figure 3-4 I2C Adapter Selection.

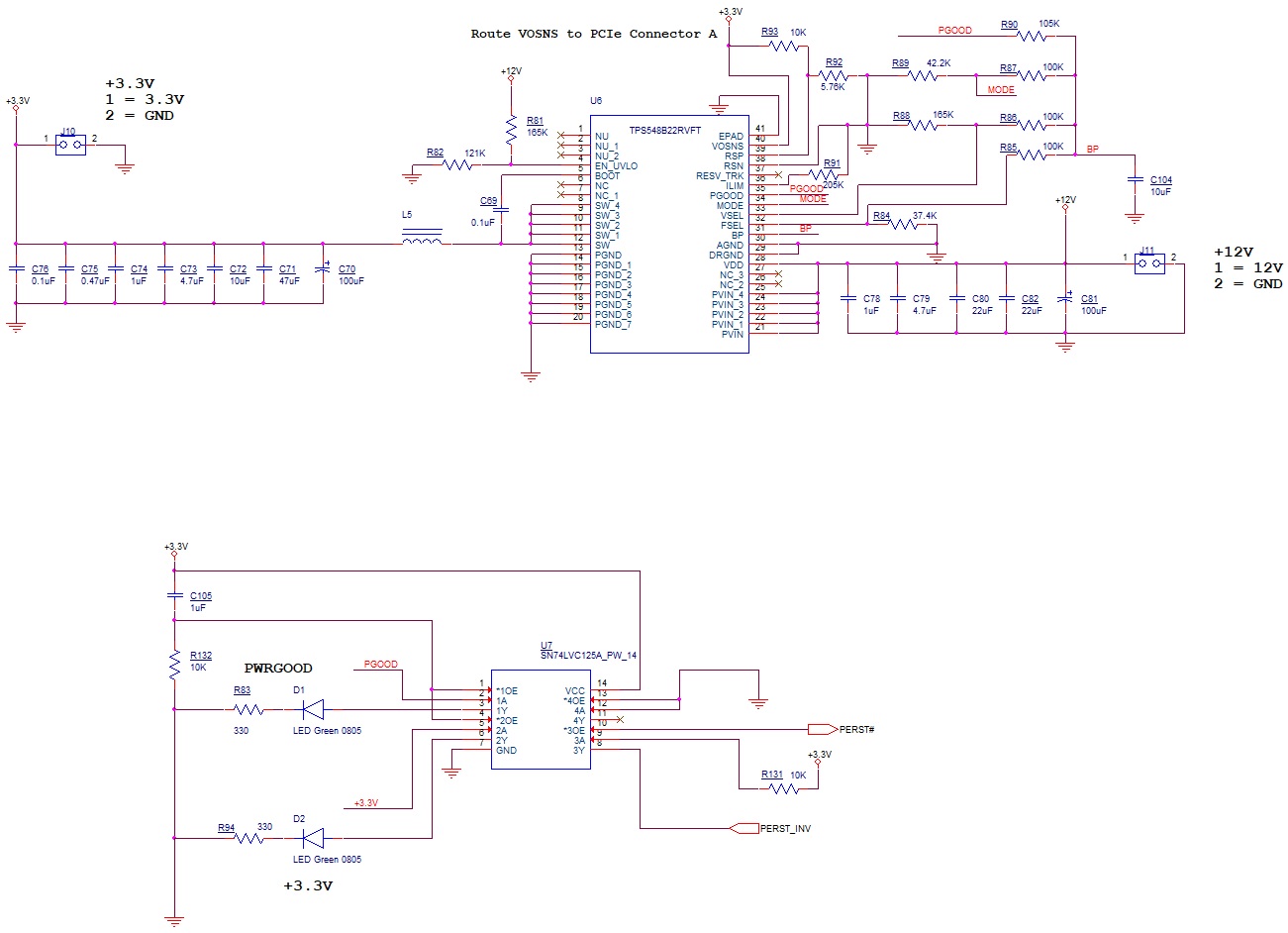

Figure 3-5 Power.

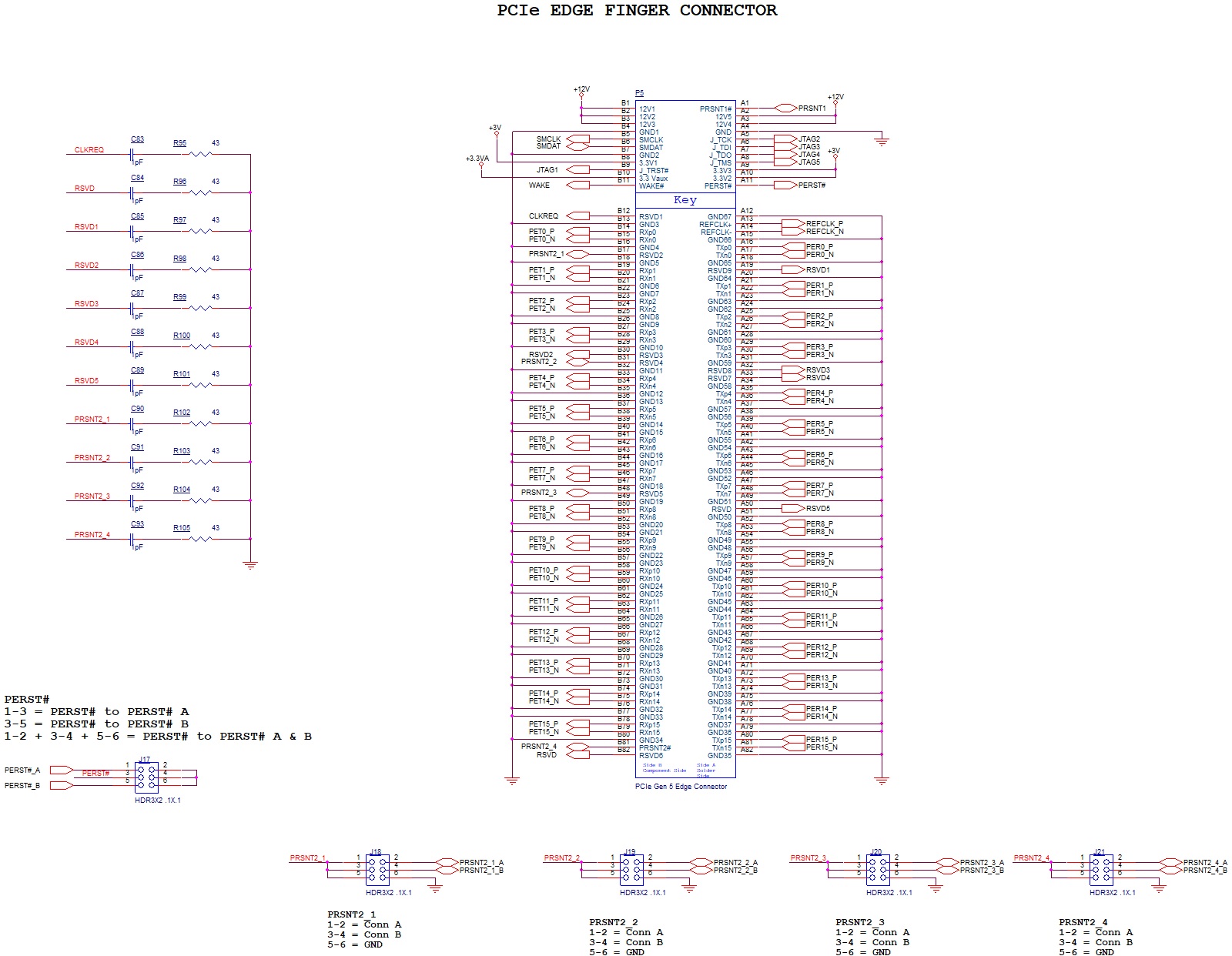

Figure 3-6 EDGE Finger.

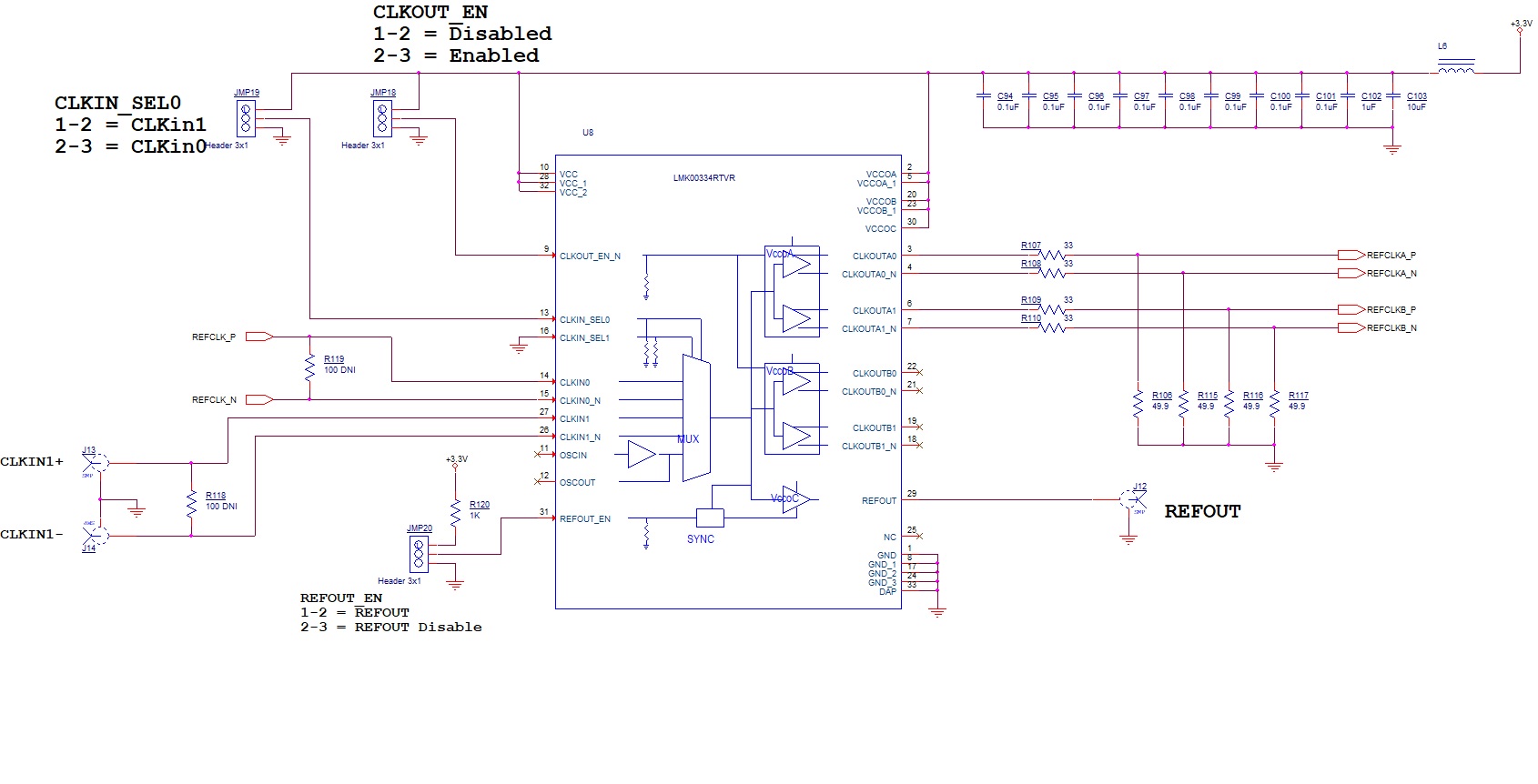

Figure 3-7 PCIe Clock.

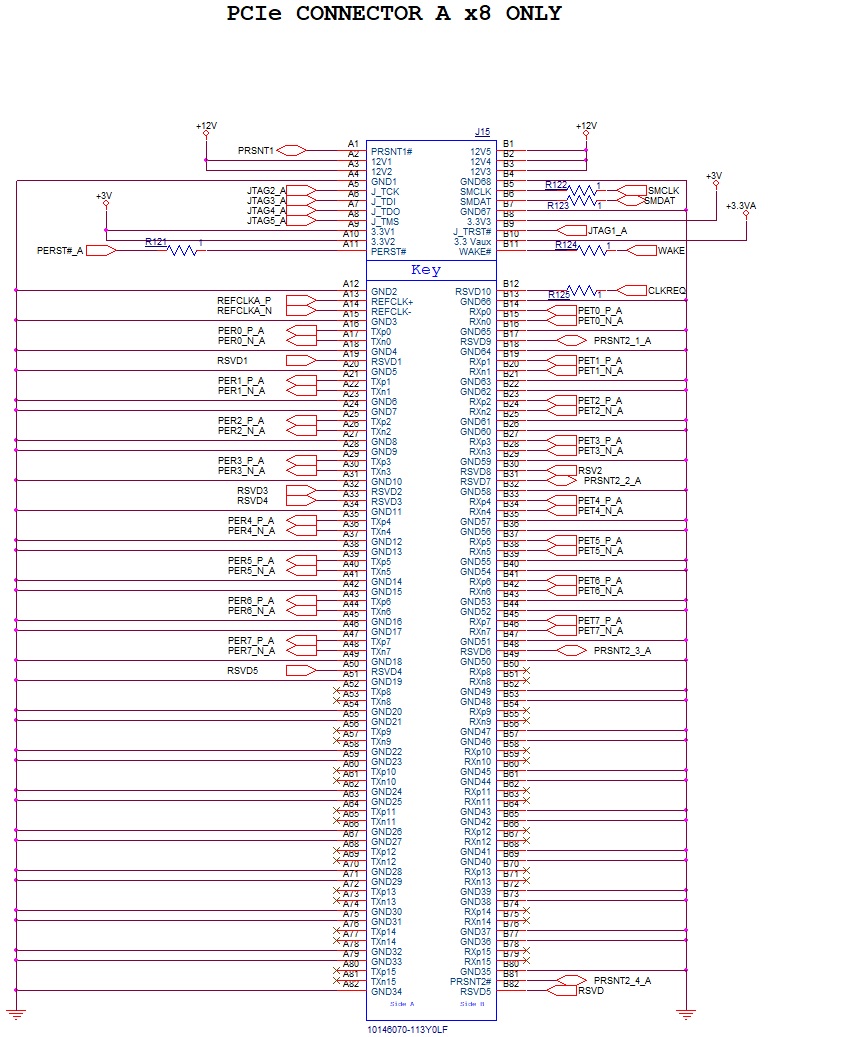

Figure 3-8 PCIe x8 Connector A.

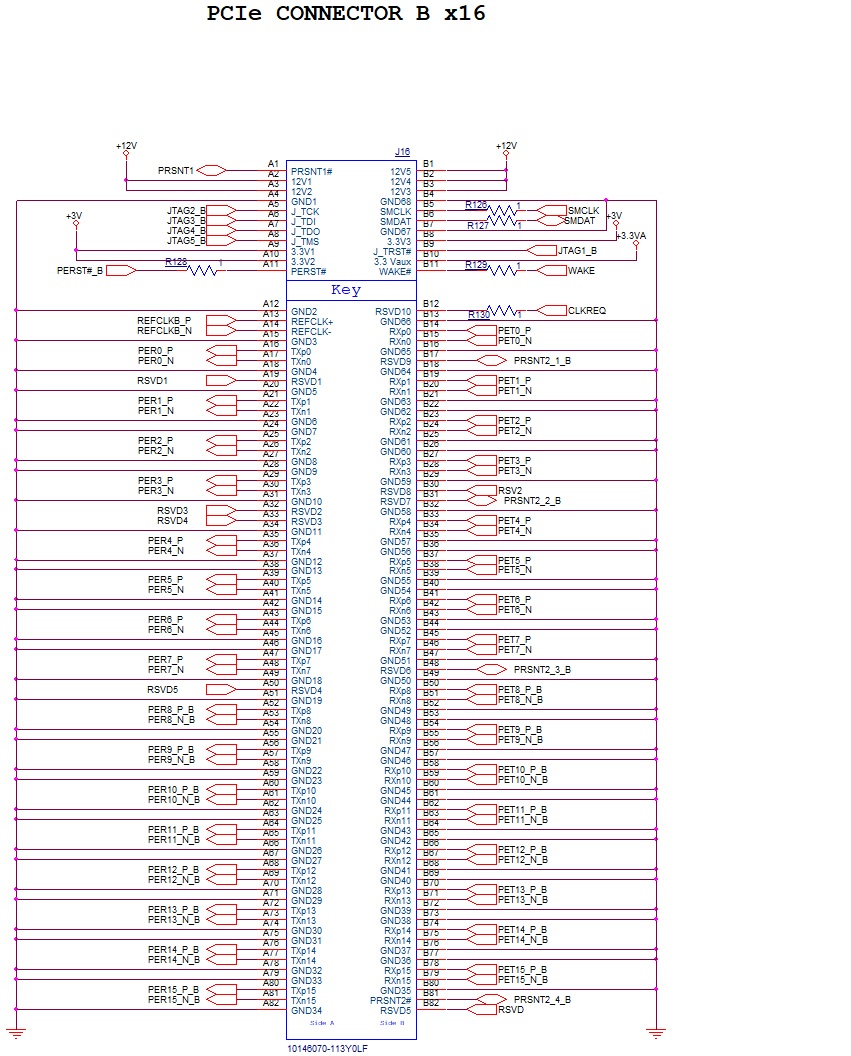

Figure 3-9 PCIe x16 Connector B.
