1.13 Typical Connection and Test Equipment
The following is a list of typical test equipment that may be used to generate signals for the serializer inputs:
- Digital Video Source – for generation of specific display timing such as Digital Video Processor or Graphics Controller (GPU) with HDMI or OpenLDI output.
- Any other signal generator / video source - This video generator may be used for video signal sources for DVI or DP++
- Any other signal / video generator that provides the correct input levels as specified in the datasheet.

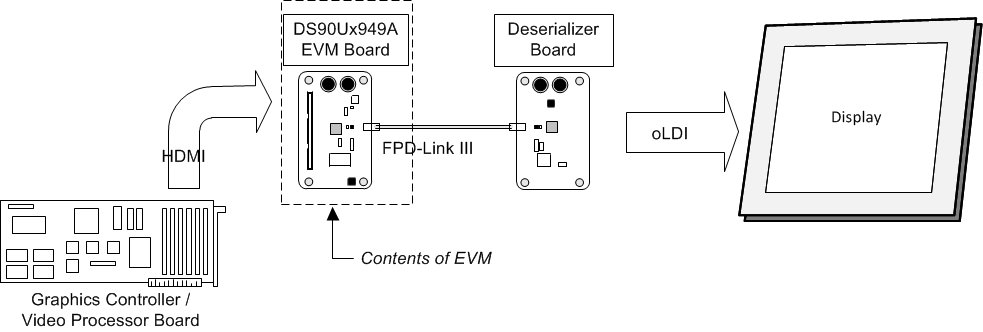

Figure 1-22 shows a typical test set up using a Graphics Controller and display.
Figure 1-22 Typical Test Setup for Video Application Figure 1-23 shows a typical test set up using a video generator and logic analyzer.
Figure 1-23 Typical Test Setup for Evaluation
