1.12.1 ALP Loads the Incorrect Profile
If ALP opens with the incorrect profile loaded, the correct profile can be loaded from the USB2ANY/Aardvark Setup found under the tools menu.

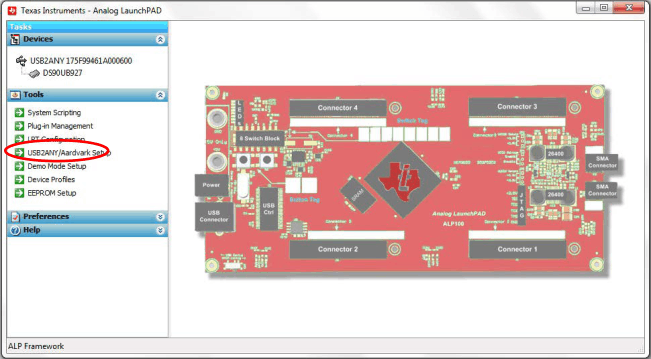

Figure 1-14 USB2ANY Setup - Highlight the incorrect profile in the Defined ALP Devices list and click the remove button.
- Find the correct profile under the Select a Daughter Board list, highlight the profile, and click Add.
- Click Ok and the correct profile should load.

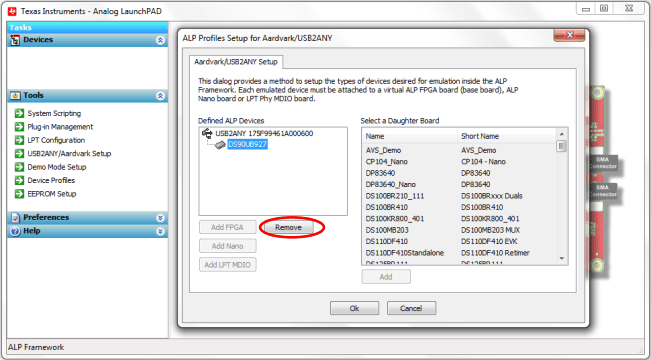

Figure 1-15 Remove Incorrect Profile

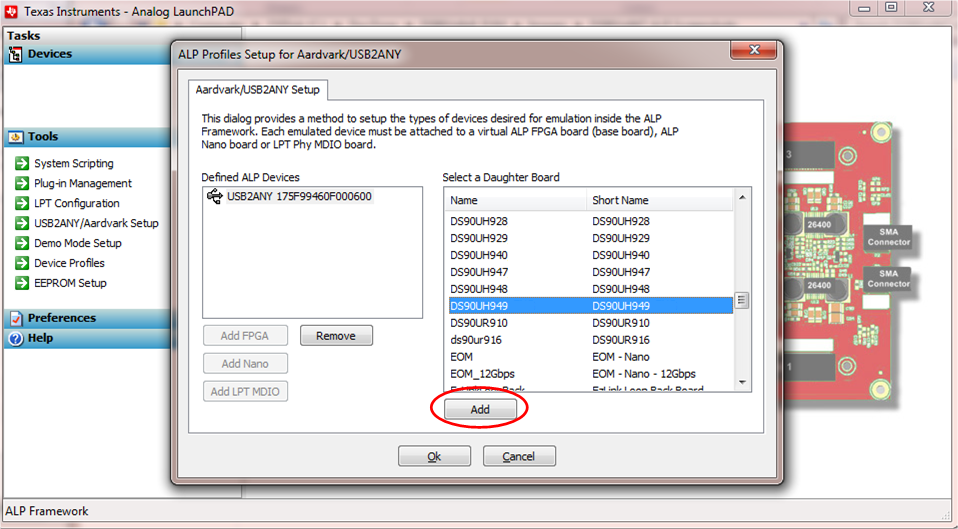

Figure 1-16 Add Correct Profile

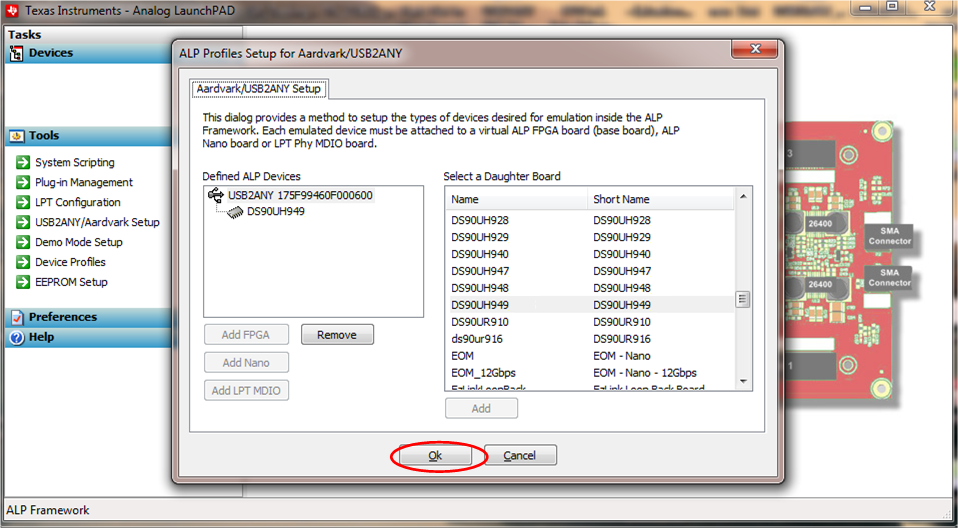

Figure 1-17 Finish Setup
