SNAU271 October 2021 LMK1D1212
8 EVM Board Schematic
Figure 8-1 shows the printed circuit board (PCB) schematic.

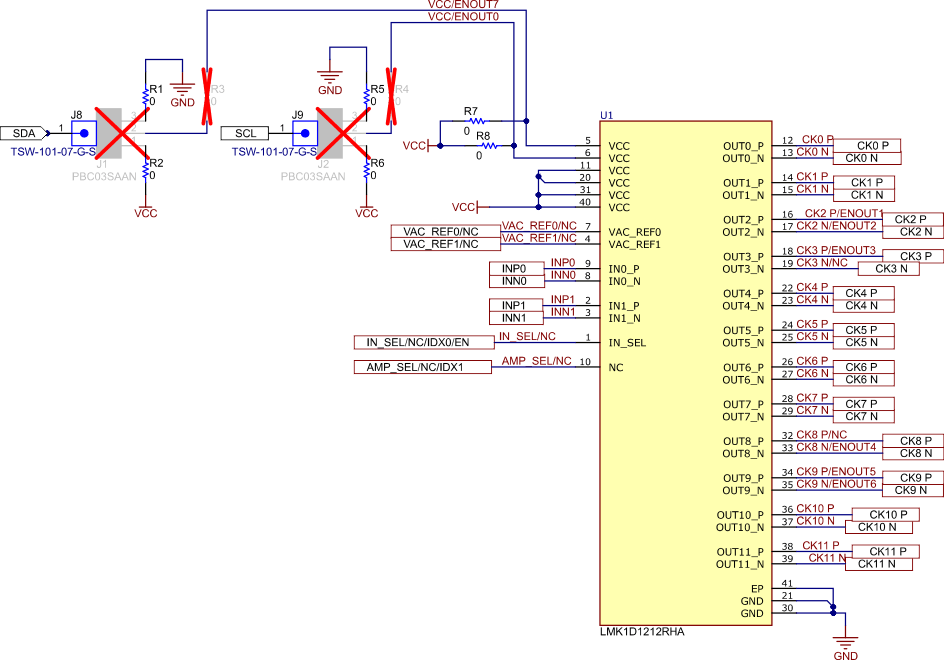

Figure 8-1 LMK1D1212EVM Schematic: Device Sheet

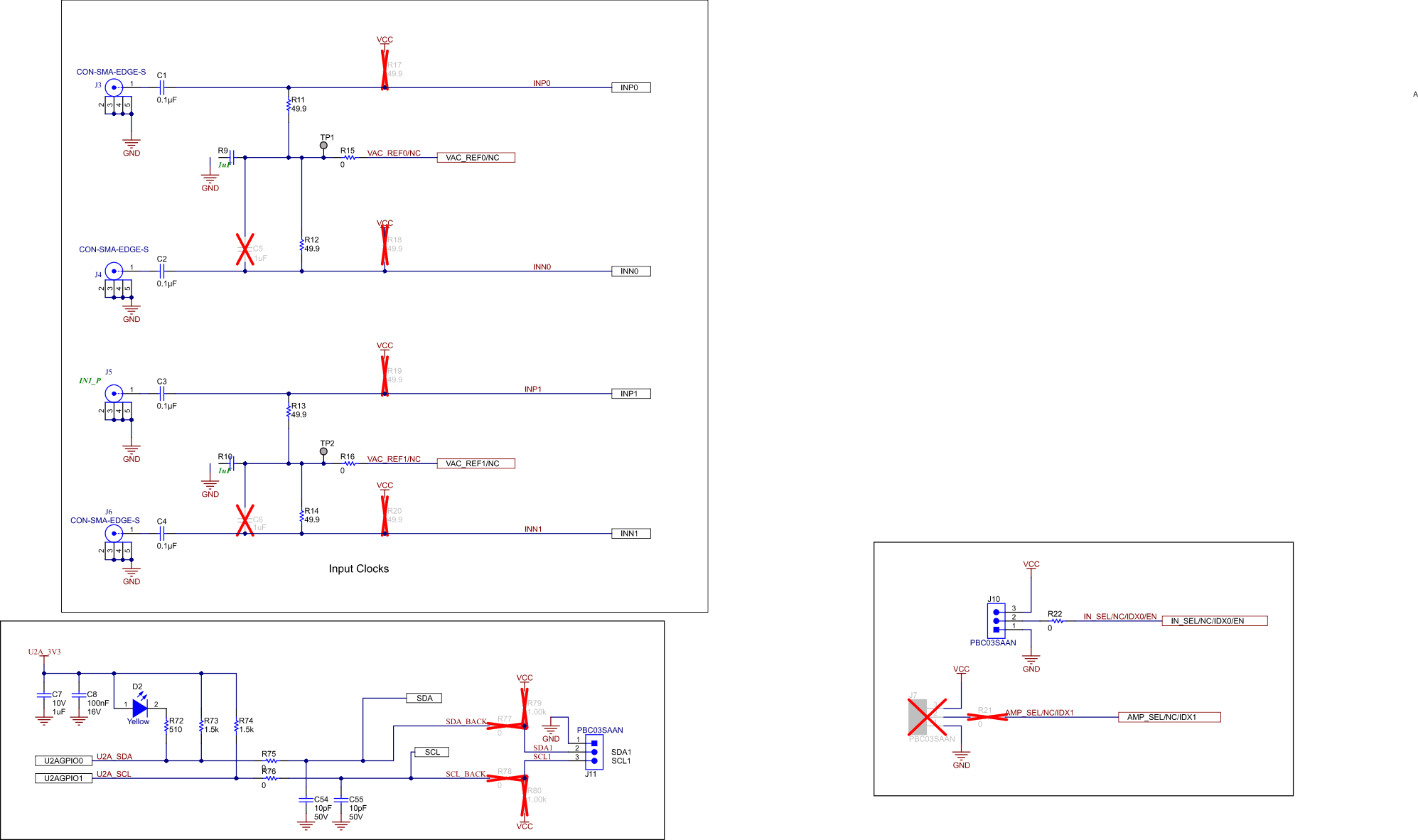

Figure 8-2 LMK1D1212EVM Schematic: Inputs
Sheet

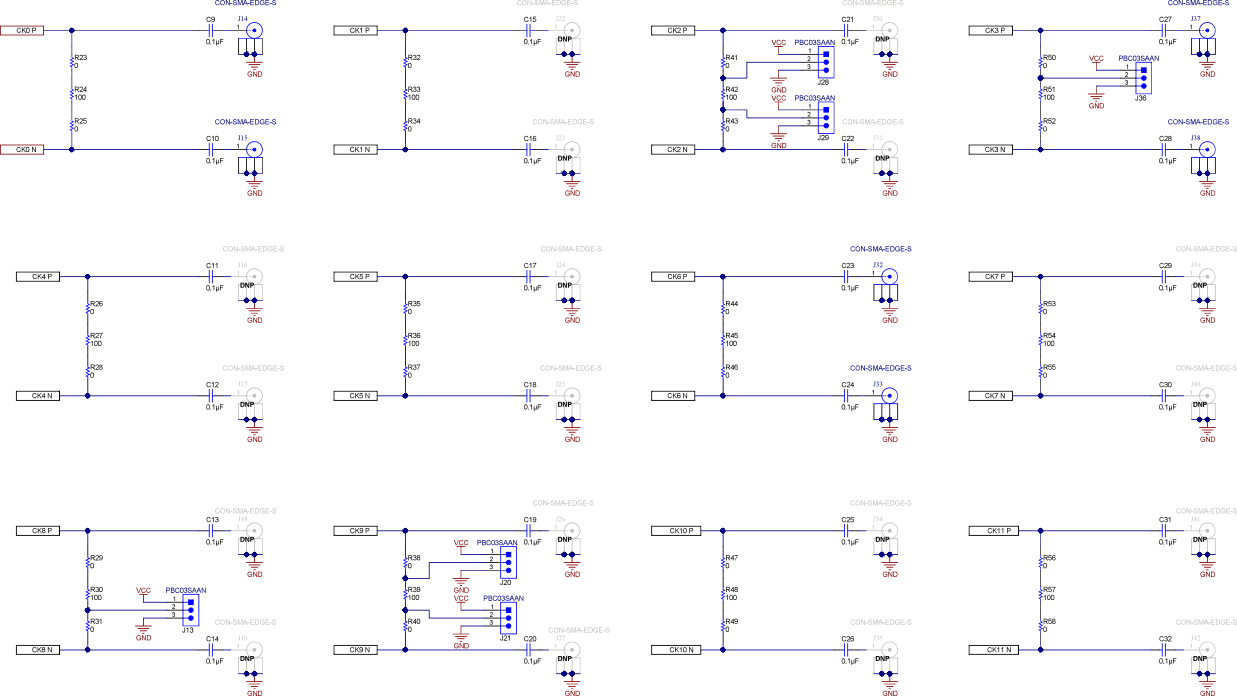

Figure 8-3 LMK1D1212EVM Schematic:
Outputs Sheet

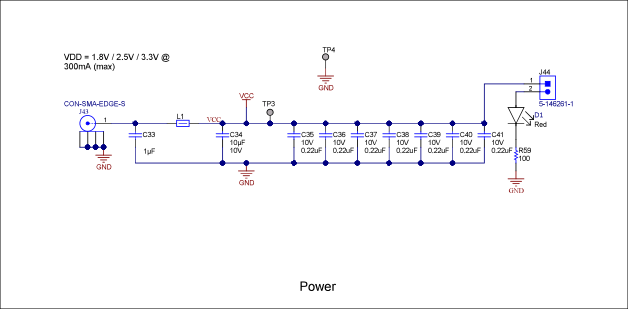

Figure 8-4 LMK1D1212EVM Schematic: Power
Supply Sheet

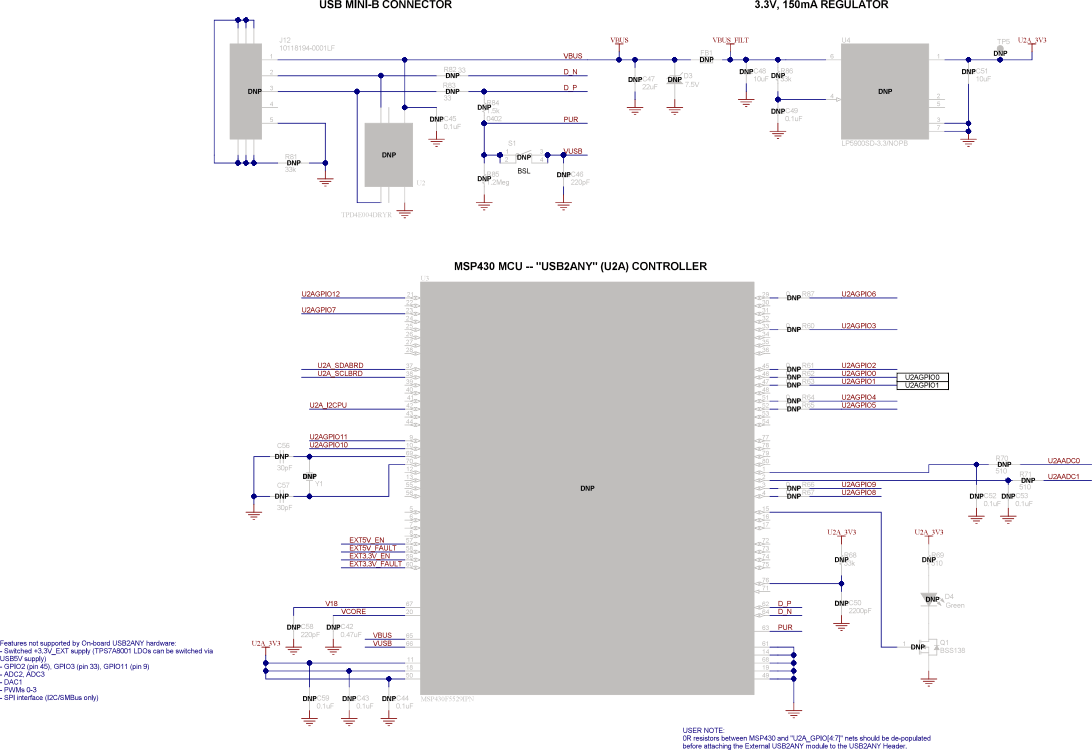

Figure 8-5 LMK1D1212EVM Schematic: USB
Sheet
