Transient Simulation Results

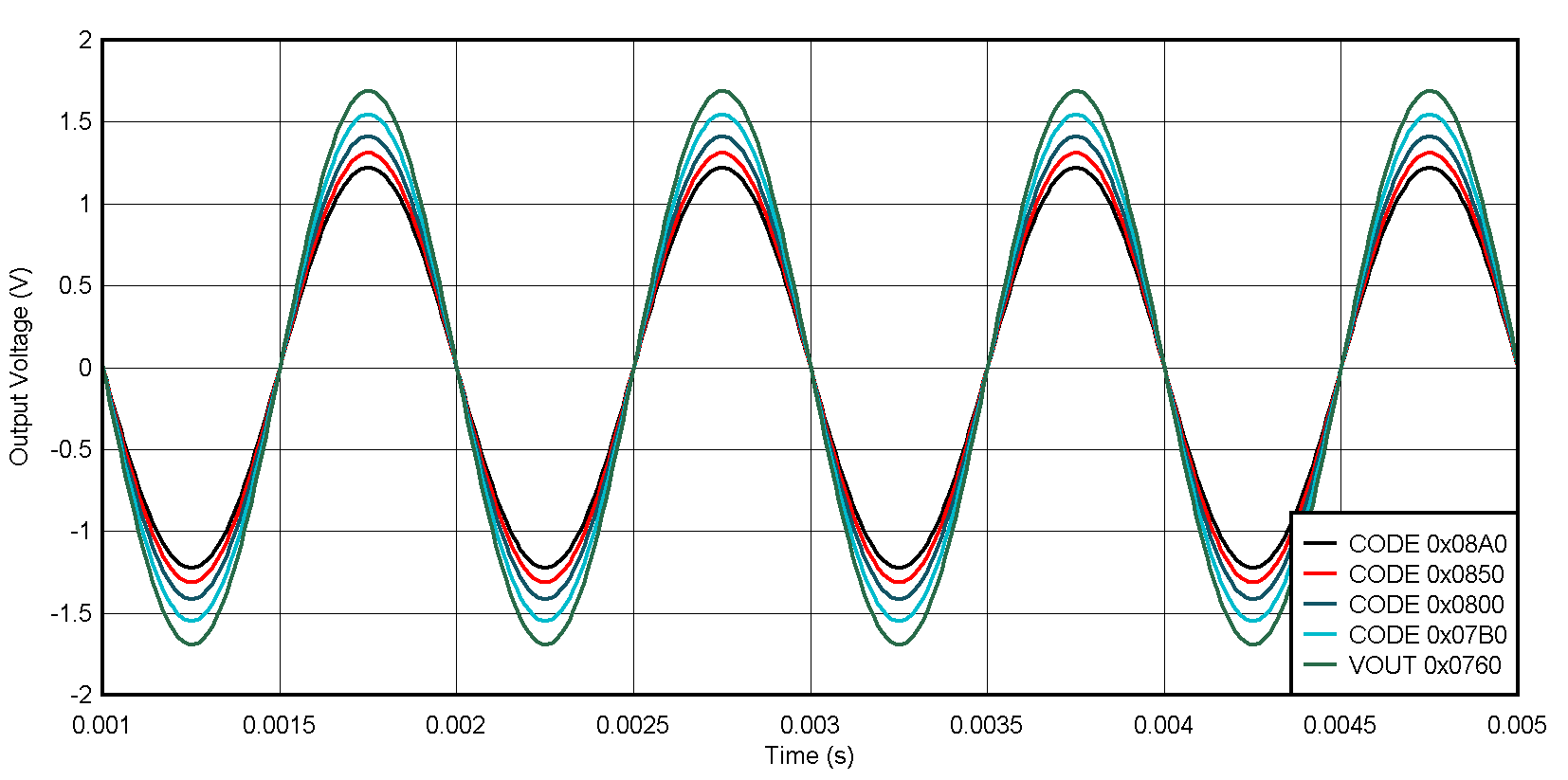

This simulation shows the output of the circuit changes with Digipot code with mid code corresponding to 1Vrms.
Output Voltage for Different Codes (Codes From
0x760 to 0x8A0)| ADC Input Voltage (Volts) | Digipot Data (DPOT_POSTION) | Output Voltage (Vrms) |
|---|---|---|
| 2.3 | 0x0760 | 1.195 |
| 2.4 | 0x07B0 | 1.093 |
| 2.5 | 0x0800 | 0.999 |
| 2.6 | 0x0850 | 0.921 |
| 2.7 | 0x08A0 | 0.864 |
