4.10 Shut-Down

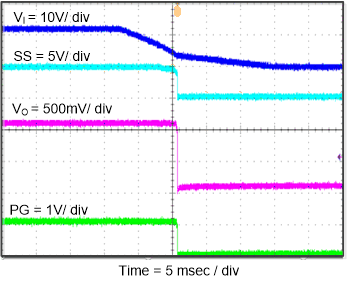

The TPS563219AEVM-663 shut-down waveform relative to VIN is shown in Figure 4-11. Load = 1 Ω resistive.

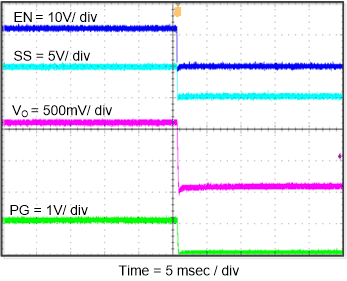

Figure 4-11 TPS563219AEVM-663 Shut-Down Relative to VINThe TPS563219AEVM-663 shut-down waveform relative to EN is shown in Figure 4-12. Load = 1 Ω resistive.
Figure 4-12 TPS563219AEVM-663 Shut-Down Relative to EN
